Connecting S-Video
If your video source has an S-Video jack, you can use it to project a
higher quality video image. However, you’ll need an S-Video cable,
which may be included with your video source, or may be purchased.
Before starting, make sure the projector and your DVD player or
other video source are turned off.

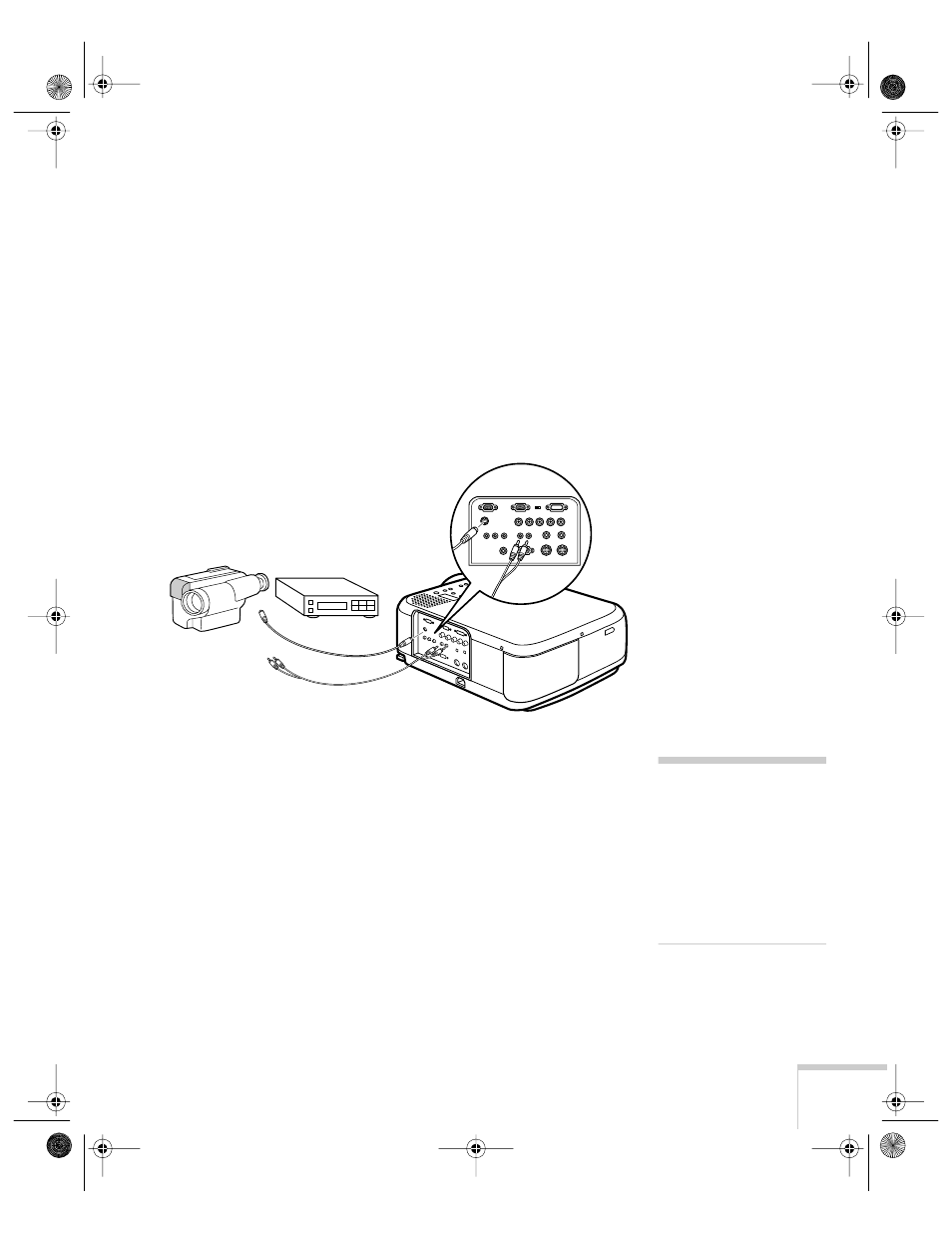

1. Insert one end of an S-Video cable into the projector’s S-Video
connector.
2. Insert the other end into the S-Video output port of your video
source.
3. Connect the RCA audio cable to the left and right S-Video/BNC
audio jacks on the projector. (Match the red and white plugs to
the red and white jacks.)
4. Connect the plugs at the other end of the cable to the audio
output jacks on your video source.
RCA audio cable
S-Video cable
note
The Computer2/
Component Video port
and the S-Video port share
the same audio input. If
you’ve connected a video
source to both interfaces, you
can use audio from only one
of the sources.
