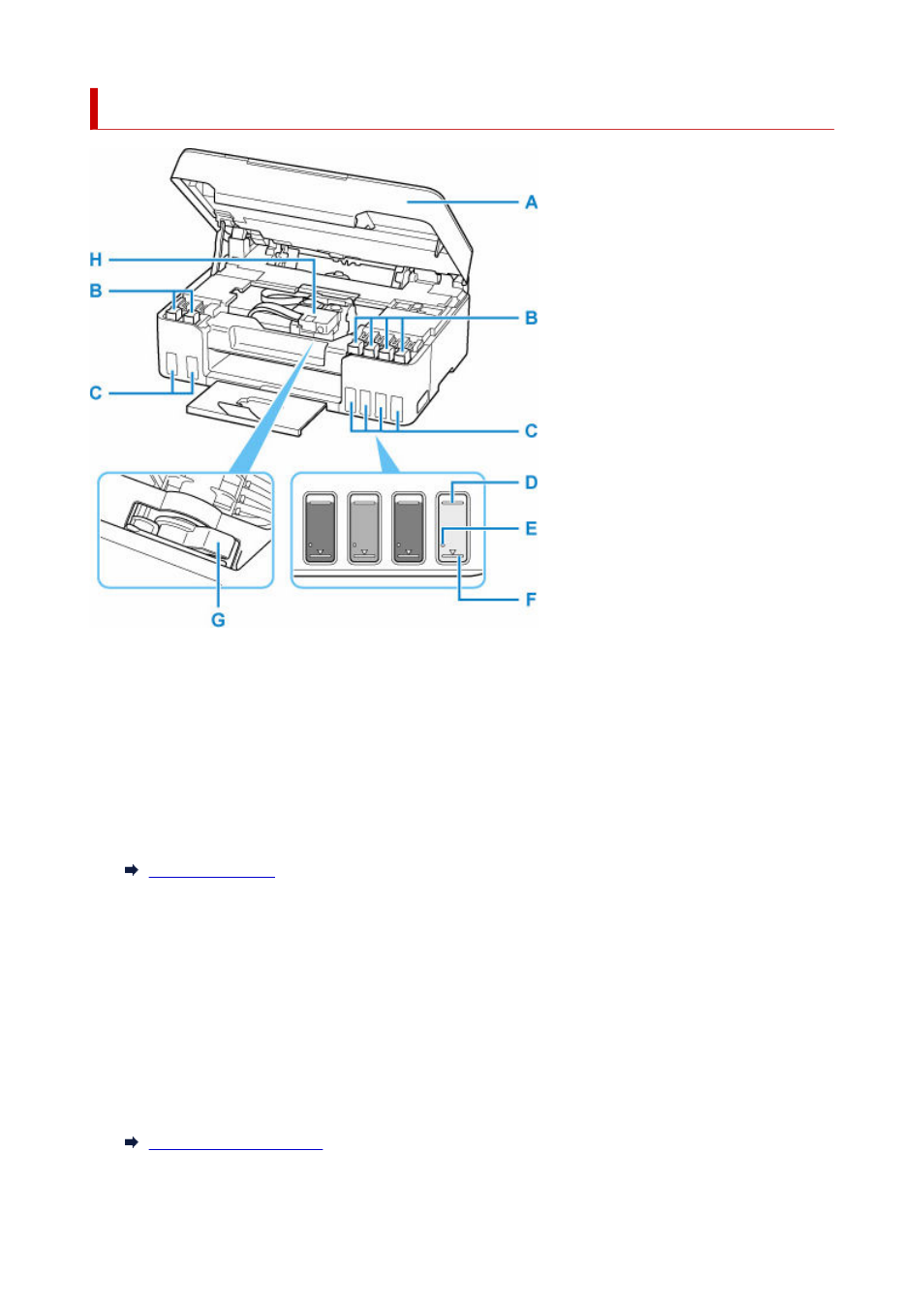

Inside View
A: Scanning Unit / Cover
Scans originals. Open to refill ink tanks and to remove jammed paper.
B: Tank Cap
Open to refill ink tanks.
C: Ink Tanks
The gray and black ink tanks are on the left, and the red, cyan, magenta, and yellow ink tanks are on
the right.
If any ink levels are low, refill the low tanks.
Refilling Ink Tanks
D: Upper limit line
Indicates the maximum capacity of the ink.
E: Single dot
Indicates the amount of ink required when performing ink flush.
F: Lower limit line
Indicates the lower limit of the sufficient amount of ink to print. Refill the ink tank before the amount of
ink is below this line.
G: Ink Valve Lever
Operate when transporting a printer.
Transporting Your Printer
