2.3.2 Example 2: Remote Rack Application

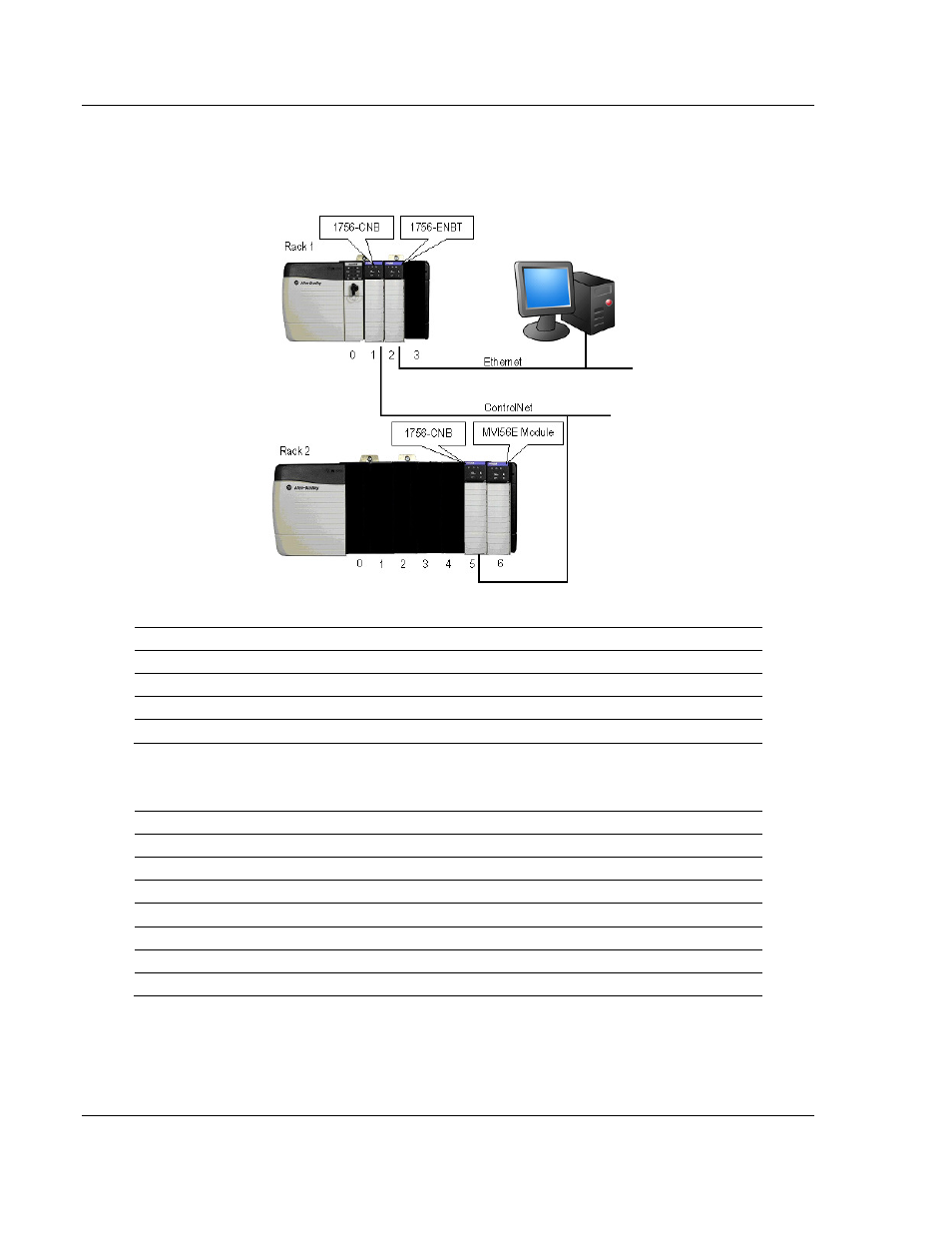

For this example, the MVI56E-MNETCR module is located in a remote rack
accessible through ControlNet, as shown in the following illustration.
Rack 1
Slot Module Network Address
0 ControlLogix Processor -
1 1756-CNB Node = 1
2 1756-ENBT IP=192.168.0.100
3 Any -
Rack 2
Slot Module Network Address
0 Any -
1 Any -
2 Any -
3 Any -
4 Any -
5 1756-CNB Node = 2
6 MVI56E-MNETCR -
