Reference MVI56E-MNETCR ♦ ControlLogix Platform
User Manual Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
Page 142 of 159 ProSoft Technology, Inc.
June 14, 2011

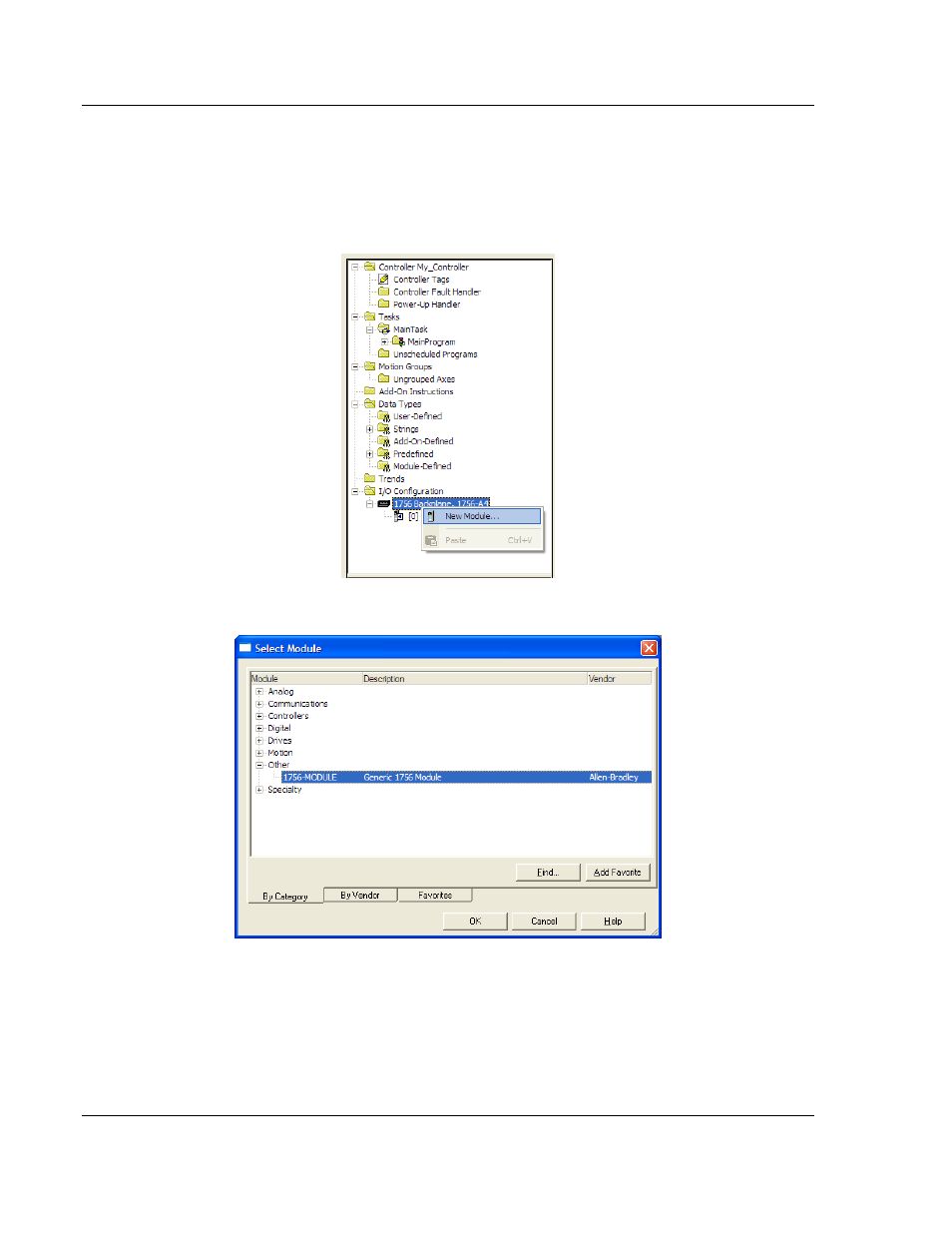

5.7 Adding the Module to an Existing Project
1 Add the MVI56E-MNETCR module to the project. Select the I/O
C ONFIGURATION folder in the C ONTROLLER O RGANIZATION window, and then
click the right mouse button to open a shortcut menu. On the shortcut menu,
choose N
EW M ODULE .
This action opens the S ELECT M ODULE dialog box:
