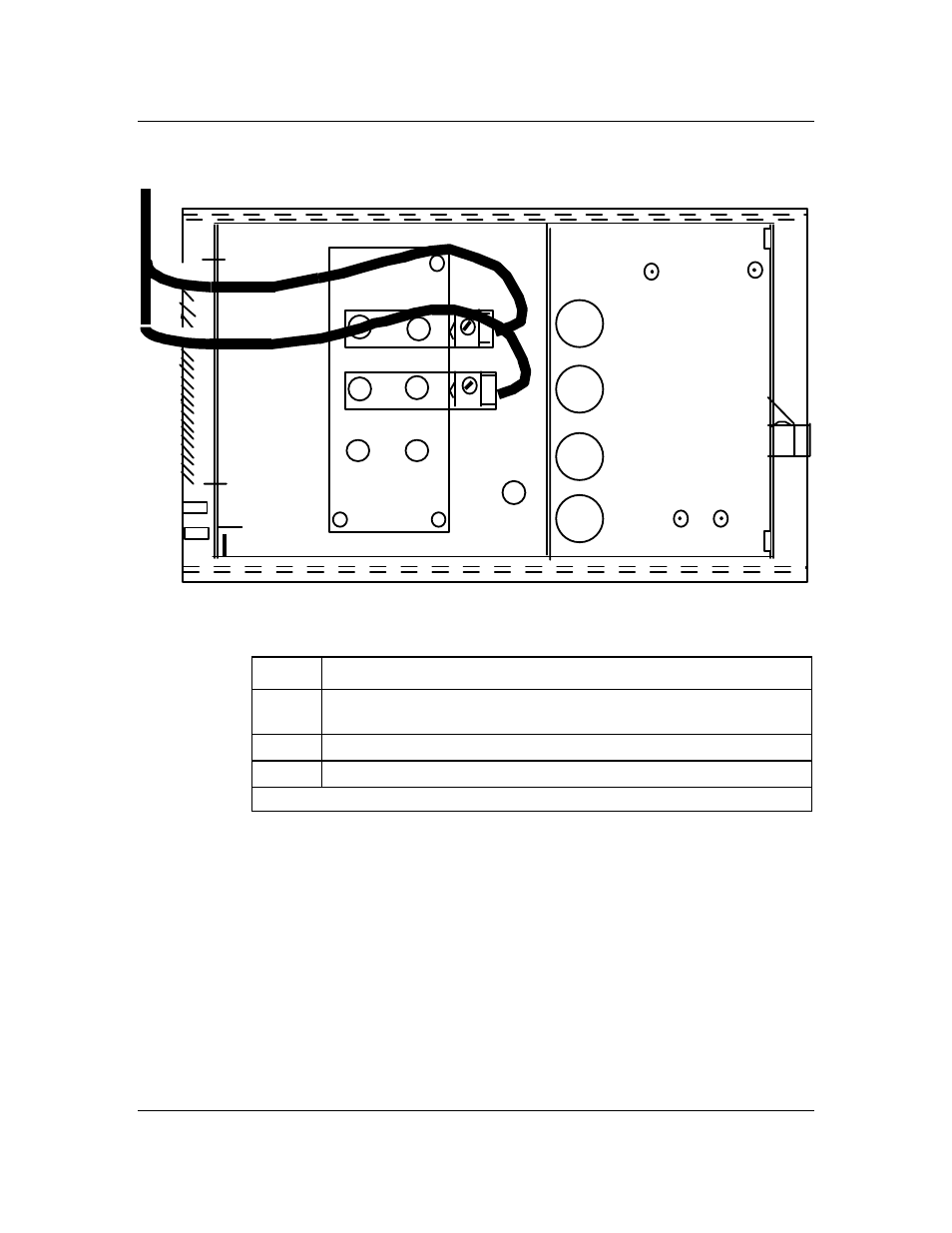

Figure 20 - System or embedded shelf (right view) - DC cabling - rear access
Procedure 8 - DC connection - rear access
Step Action
1 Punch out the top two 0.875-inch dia. knockouts on the right rear of the
shelf.
2 Insert the bushings, run and connect the wires as illustrated.
3 Re-install the blank panel to prevent access to the connections inside.
–end–
Power plant interface - signal cabling
Rectifier and Controller interface connections.
BR
( +V DC)
BA T
(-V DC)
