Single in / single out wiring, Sub-panel and outlets (inverter loads), Ms-pe series inverter/charger – Magnum Energy MS-PE Series User Manual

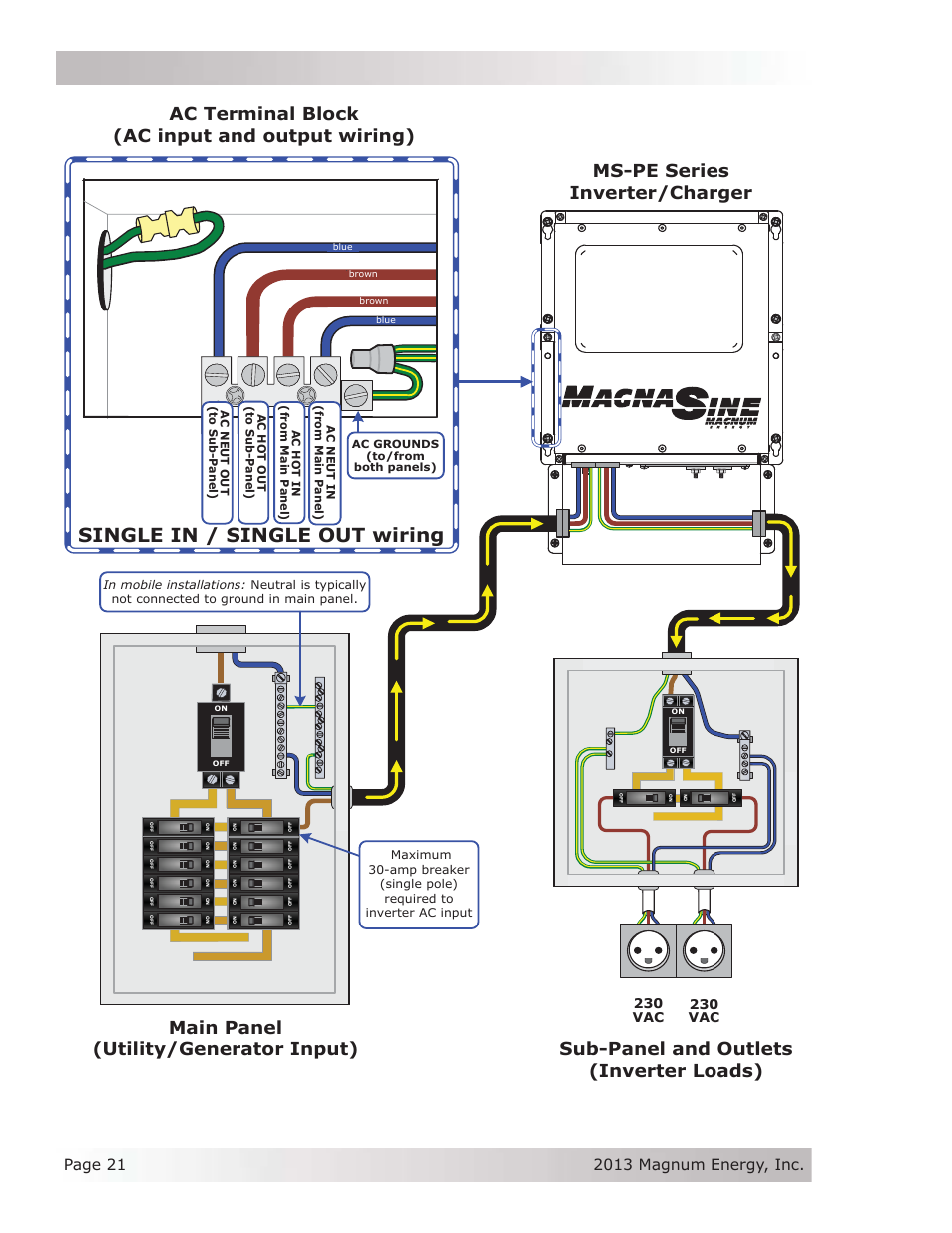

Page 28: Figure 2-9, ac wiring input/output, 230 vac
This manual is related to the following products:
