SMA SB 3000TL-US Installation - Manual (Page 21)

SMA America, LLC 4 Product Description
Installation Manual SB3-5TLUS22-IA-en-16 21
4.4 Display
The display shows the current operating data of the inverter (e.g. current power, daily energy,
total energy) as well as events or error messages. The power and energy are displayed as bars in the
diagram.

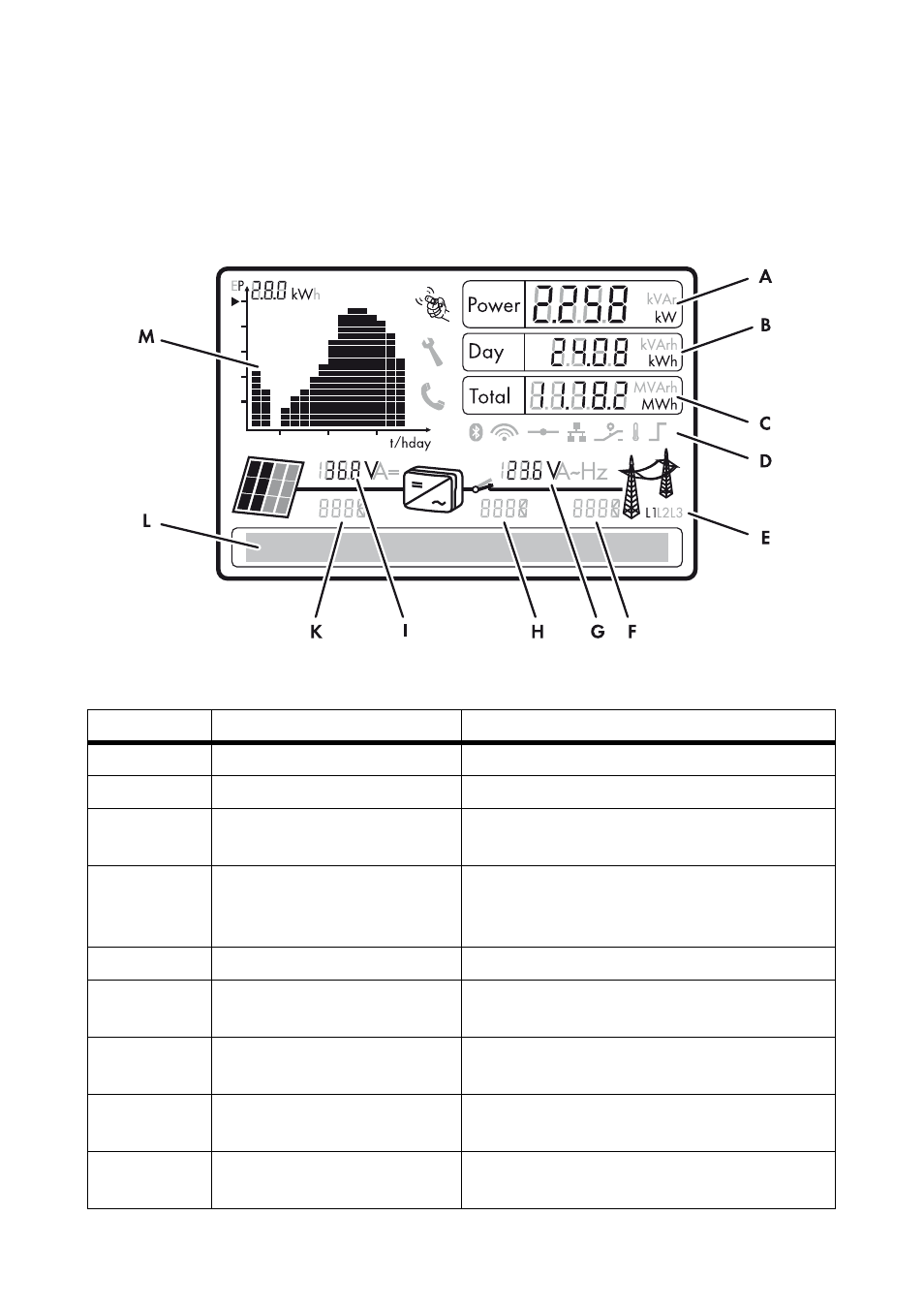

Figure 6: Display layout (example)
Position Description Explanation
A Power Current power
B Day Daily energy
C Total Total energy generated since the initial start-up of
the inverter
D Active functions Displays the activated or active functions for
communication, network system services or
temperature derating
E Line conductor Line conductor involved for the values displayed
F Event number relating to the
utility grid Event number of errors relating to the utility grid
G Output voltage/output current Displays output voltage and output current of a
line conductor in alternation
H Event number relating to the
inverter Event number of errors relating to the inverter
I Input voltage/input current Displays input voltage and input current of an
input in alternation
