Ramps View
The Ramps View contains all setup information for the global acceleration and deceleration
profiles.
By selecting Ramps in the Hierarchy View, the Ramps View will appear on the right (see
Figure 34).

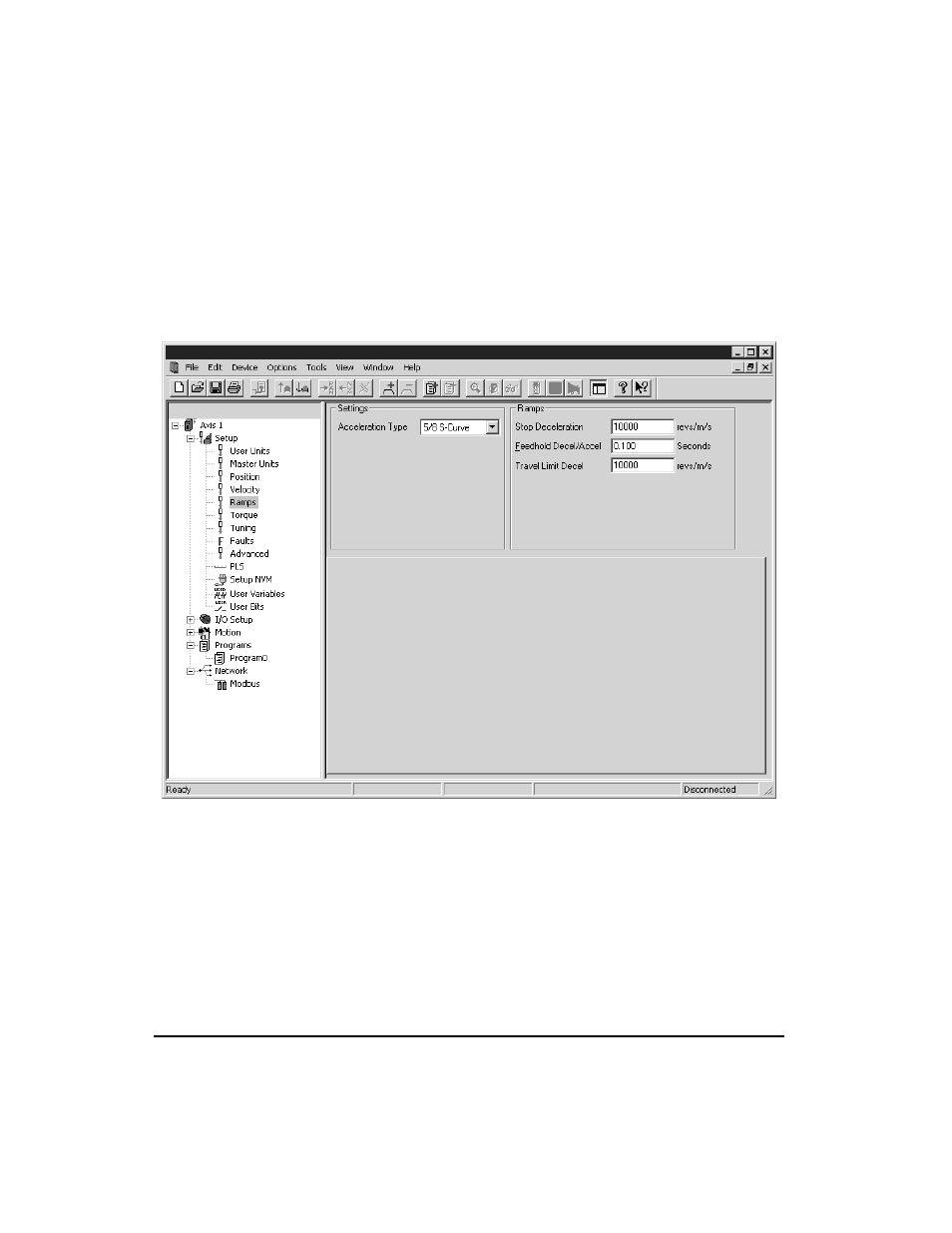

Figure 34: Ramps View
Settings Group
The Settings Group contains the Acceleration Type List Box.
Acceleration Type
Press the arrow by the Acceleration Type list box. It will display the various acceleration
types: 5/8 S-Curve, 1/4 S-Curve, Linear, and S-Curve.
