PowerTools Pro allows selection of one of three different Home References: Sensor, Marker,
or Sensor and Marker.
Sensor
Selecting Sensor means the rising edge of the Home Sensor input function is used to establish
the home reference position.

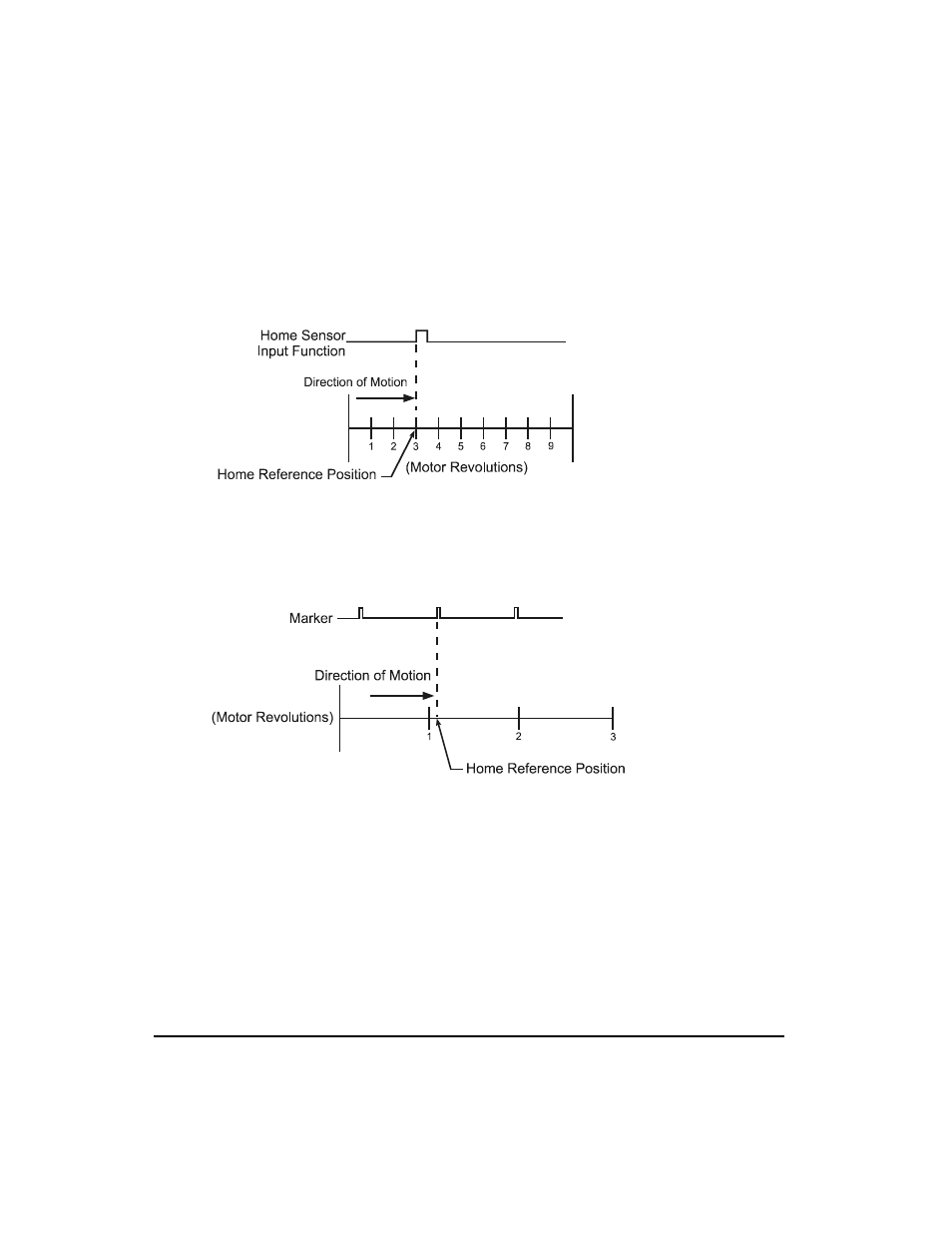

Figure 7:
Sensor Home Reference Position
Marker
Selecting Marker means the rising edge of the motor’s encoder marker channel is used to
establish the reference position.
Figure 8:
Marker Home Reference Position
