To adjust and turn on the deep alarm:

1. Press

MENU

|

MENU

|

to

A

LARMS

|

ENT

|

to

S

ONAR

A

LARMS

|

ENT

.

2. Press

to

D

EEP

A

LARM

E

NABLED

|

→ to

D

EEP

A

LARM

D

EPTH

|

ENT

.

3. Press

or

to change the first number, then press

→ to move the

cursor to the next number and repeat until the depth is correct, then
press

ENT

.

4. Press

← to

D

EEP

A

LARM

E

NABLED

|

ENT

|

EXIT

|

EXIT

|

EXIT

.

Zone Alarm

The zone alarm is triggered when any echo passes inside the alarm bar
zone, shown on the right side of the screen.

To adjust and turn on the zone alarm:

1. Press

MENU

|

MENU

|

↓ to

A

LARMS

|

ENT

|

↓ to

S

ONAR

A

LARMS

|

ENT

.

2. Press

↓ to

Z

ONE

A

LARM

E

NABLED

|

→ to

A

DJUST

Z

ONE

|

ENT

.

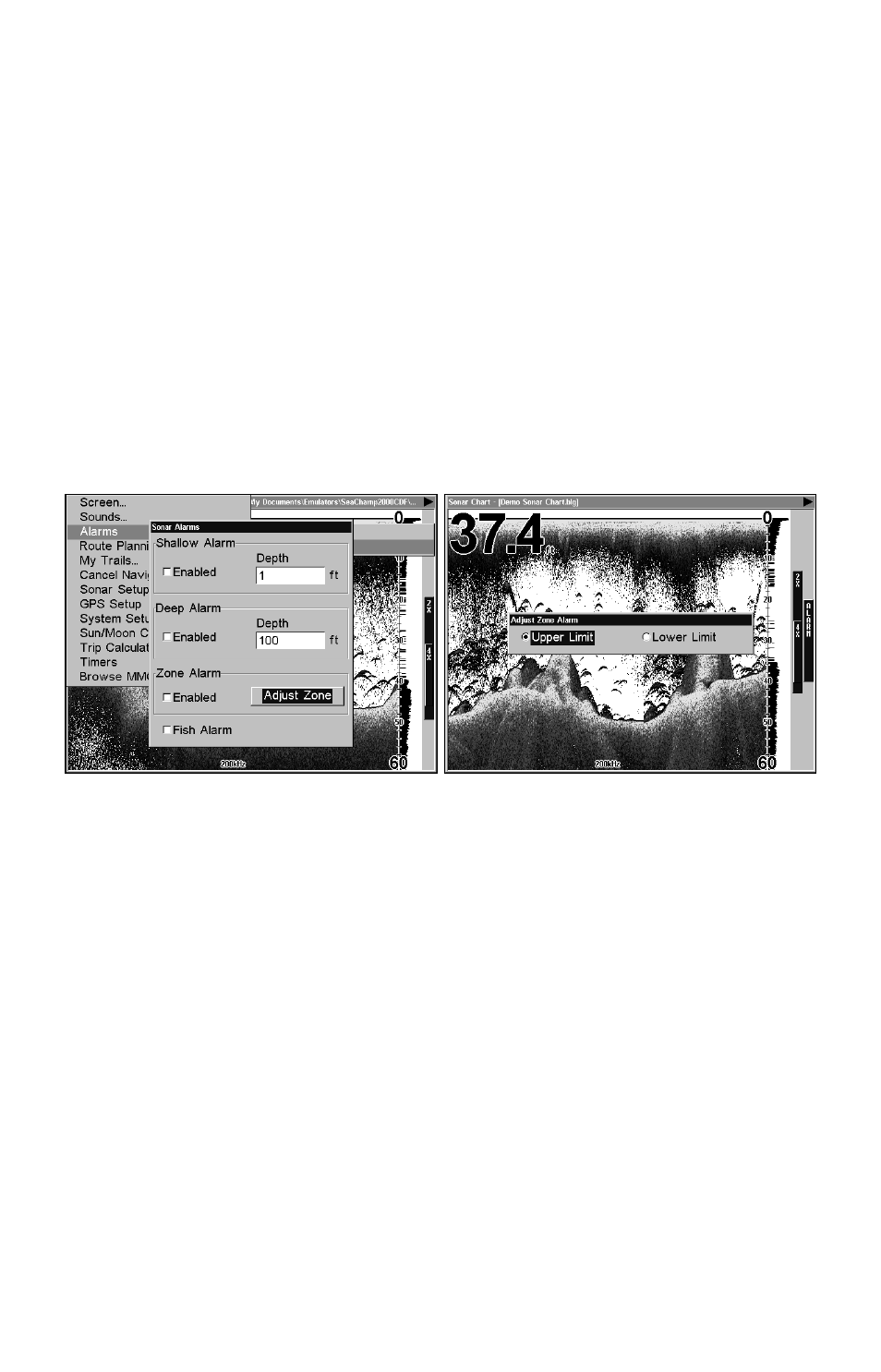

Sonar Alarms menu, with Adjust Zone command selected (left); Adjust

Zone Alarm selection box, with Upper Limit selected (right).

3. To set the upper boundary for the Zone Alarm, use

or

to select

U

PPER

, then press

↑ or ↓ to move the top of the bar to the desired depth.

4. To set the lower boundary for the Zone Alarm, use

or

to select

L

OWER

, then press

↑ or ↓ to move the bottom of the bar to the desired

depth.

5. Press

EXIT

|

← to

Z

ONE

A

LARM

E

NABLED

|

ENT

|

EXIT

|

EXIT

|

EXIT

. Now, any

echo — fish, structure or the bottom — within the zone alarm's depth
range will trigger the zone alarm.

Fish Alarm
Use the fish alarm for a distinctive audible alarm when fish or other
suspended objects are detected by the Fish I.D.

 feature (Fish I.D.

must be turned on for the Fish Alarm to work). A different tone sounds
for each fish symbol size shown on the display.
