Grass Valley DVCPRO Board Upgrade User Manual
Page 47
ASPB Audio Clock and Sharcnet Cabling Examples
DVCPRO Upgrade Installation
47

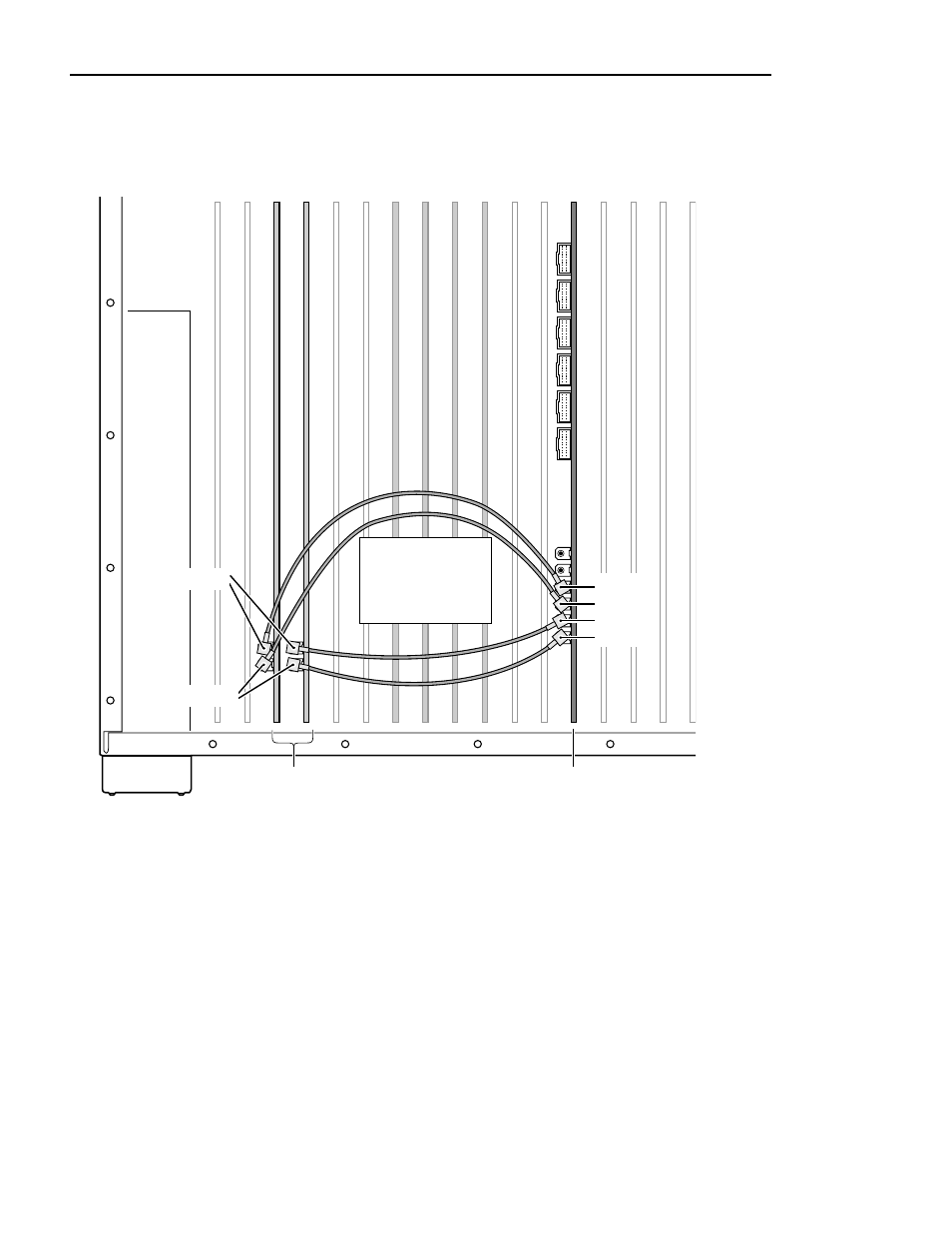

Figure 11. ASPB cabling with two Analog Composite I/O boards and one ASPB
0516-2
Channel A
Channel B
Audio 1
Audio 2
Audio 3
Audio 4
J1
J17
J13
J16
J15 J14
J6
J7
J4 J3 J2
J5
J12 J11
J9 J8
J10
ASPB
Analog
Composite I/O
Slave EDR
Fibre Channel
DVCPRO CODEC
Master EDR
PCI Interconnect Bd.
(Do not place cabling
on top of board.)
