DVCPRO Board Installation
28 DVCPRO Upgrade Installation

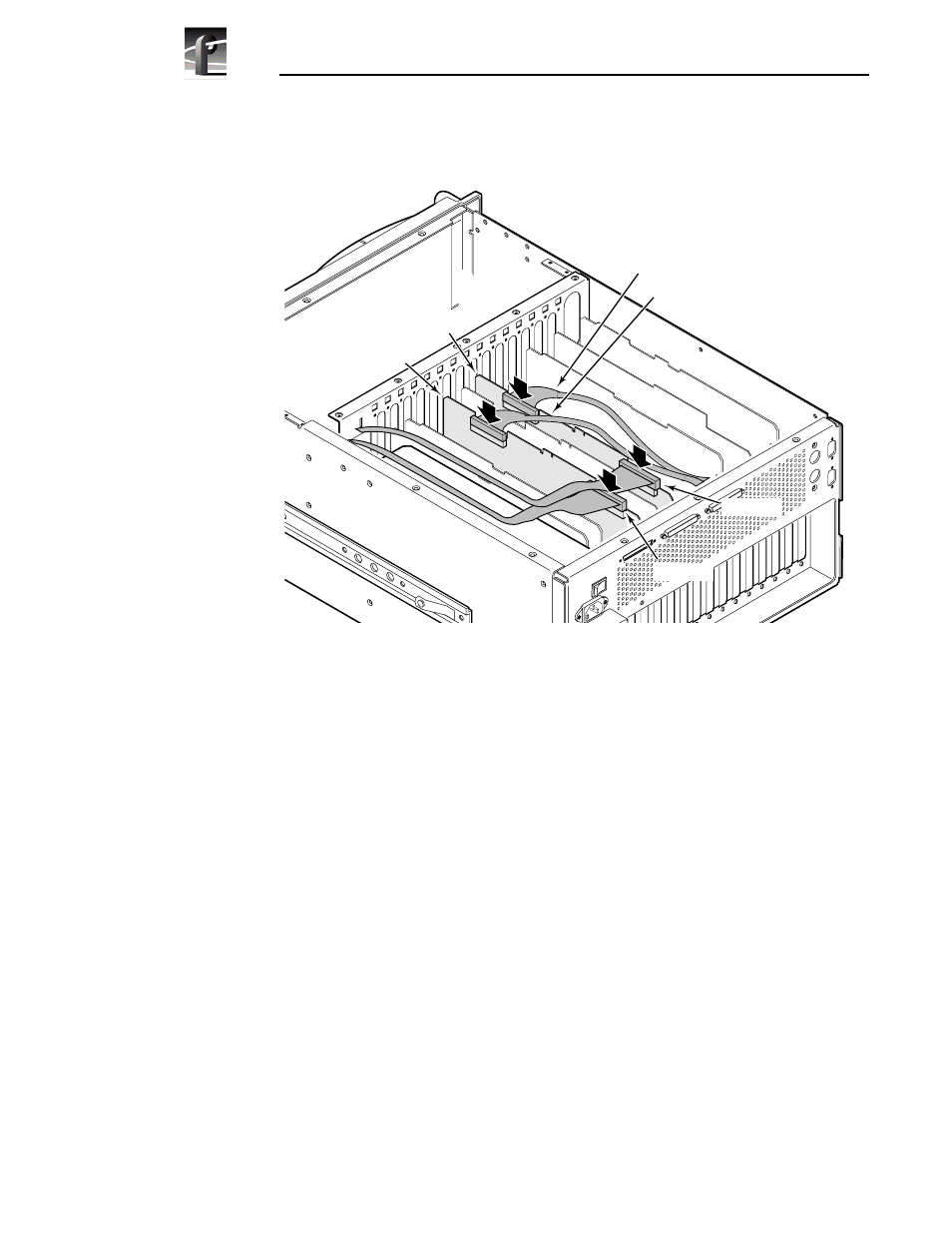

Figure 5. Reconnect the SCSI cables
5. Connect the SCSI cables, as shown in Figure 5.
6. Install the five-slotted PCI Interconnect board. This board is a high-speed
bus used to move data between boards with PCI connectors. Align the center
keys on the PCI Interconnect board with the keys on the Master EDR board
in slot J10. Using appropriate pressure, press down firmly on the
interconnect board to ensure that it is properly seated (see Figure 6).
0516-6
SCSI C
SCSI A
Master EDR (J10)
Slave EDR (J8)
SCSI D
SCSI B
