Figure 9 – Grass Valley DVCPRO Board Upgrade User Manual
Page 43
ASPB Audio Clock and Sharcnet Cabling Examples
DVCPRO Upgrade Installation
43

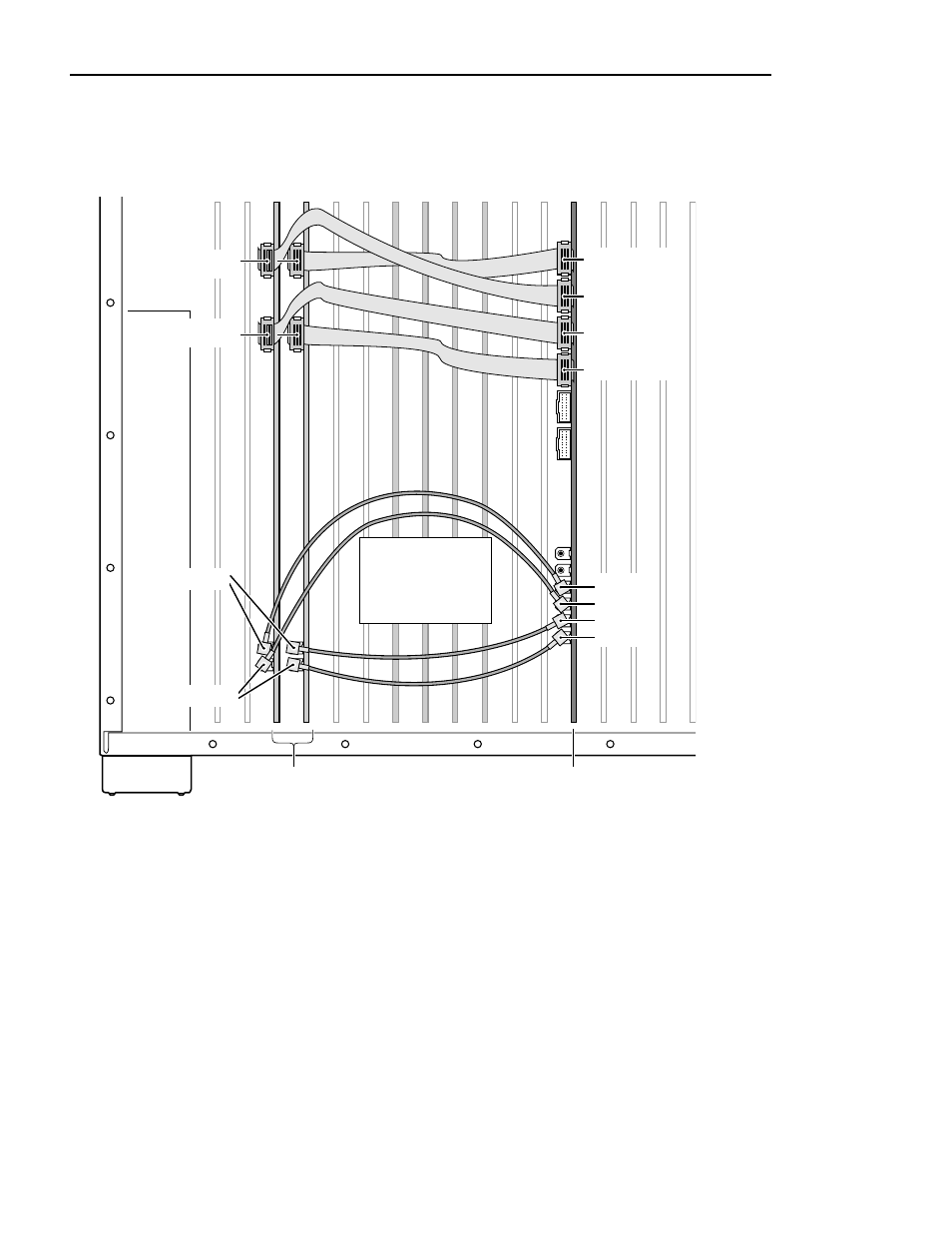

Figure 9. ASPB cabling with two Serial Digital I/O boards and one ASPB
0516-1
Channel A
Channel B
Audio 1
Audio 2
Audio 3
Audio 4
Sharcnet Out 1
Sharcnet Out 2
Sharcnet In 2
Sharcnet In 1
J1
J17
J13
J16
J15 J14
J6
J7
J4 J3 J2
J5
J12 J11
J9 J8
J10
ASPB
Serial
Digital I/O
Slave EDR
Fibre Channel
DVCPRO CODEC
Master EDR
PCI Interconnect Bd.
(Do not place cabling
on top of board.)
Sharcnet In
Sharcnet Out
