Chapter 5 Removing and replacing FRUs
Midplane board removal

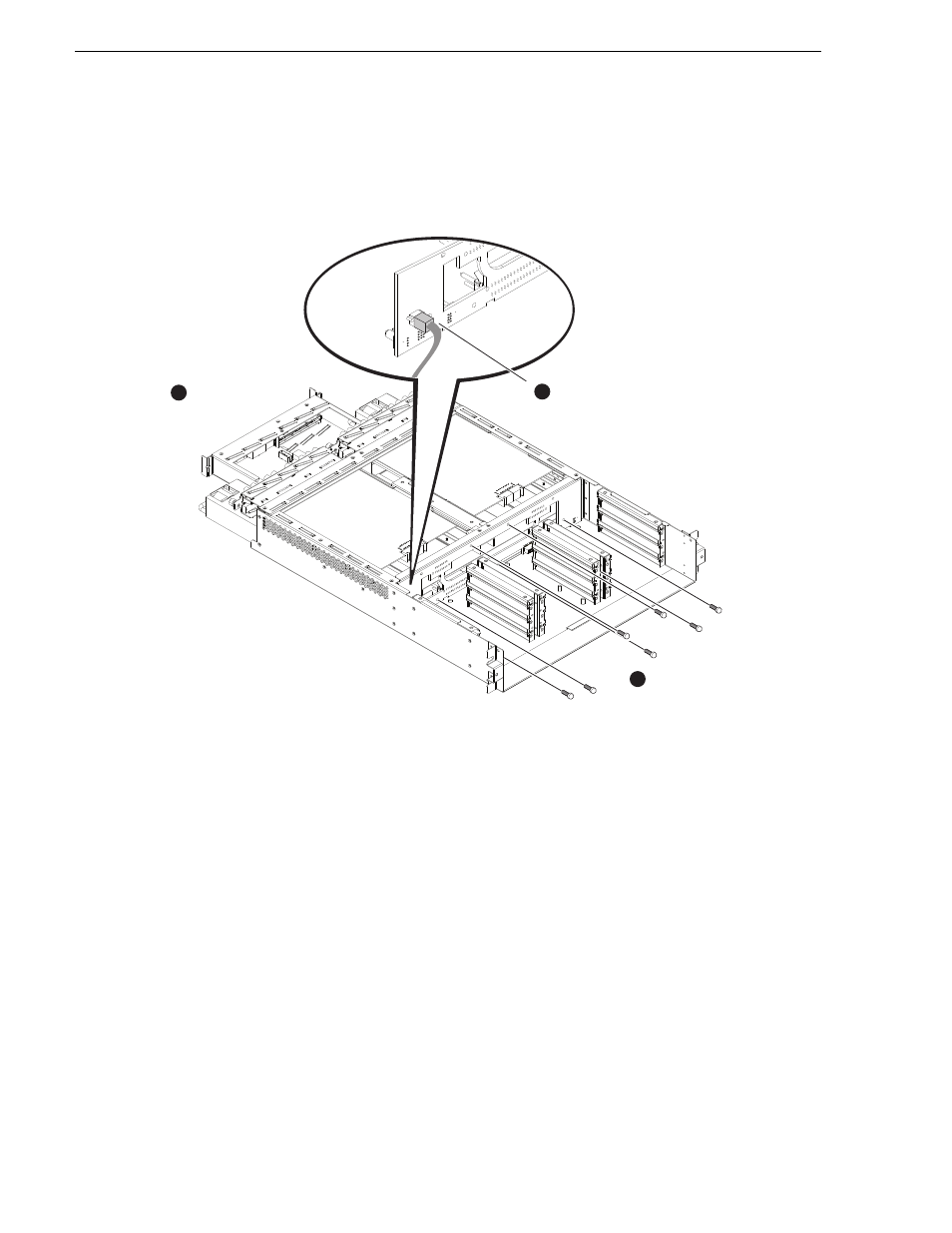

To remove the midplane board first remove all FRUs from the front of the chassis,
then proceed as illustrated.
1 Disengage all
rear modules 2 Disconnect
cable
3 Remove 7 screws
