09 April 2010

K2 Summit Production Client Service Manual

101

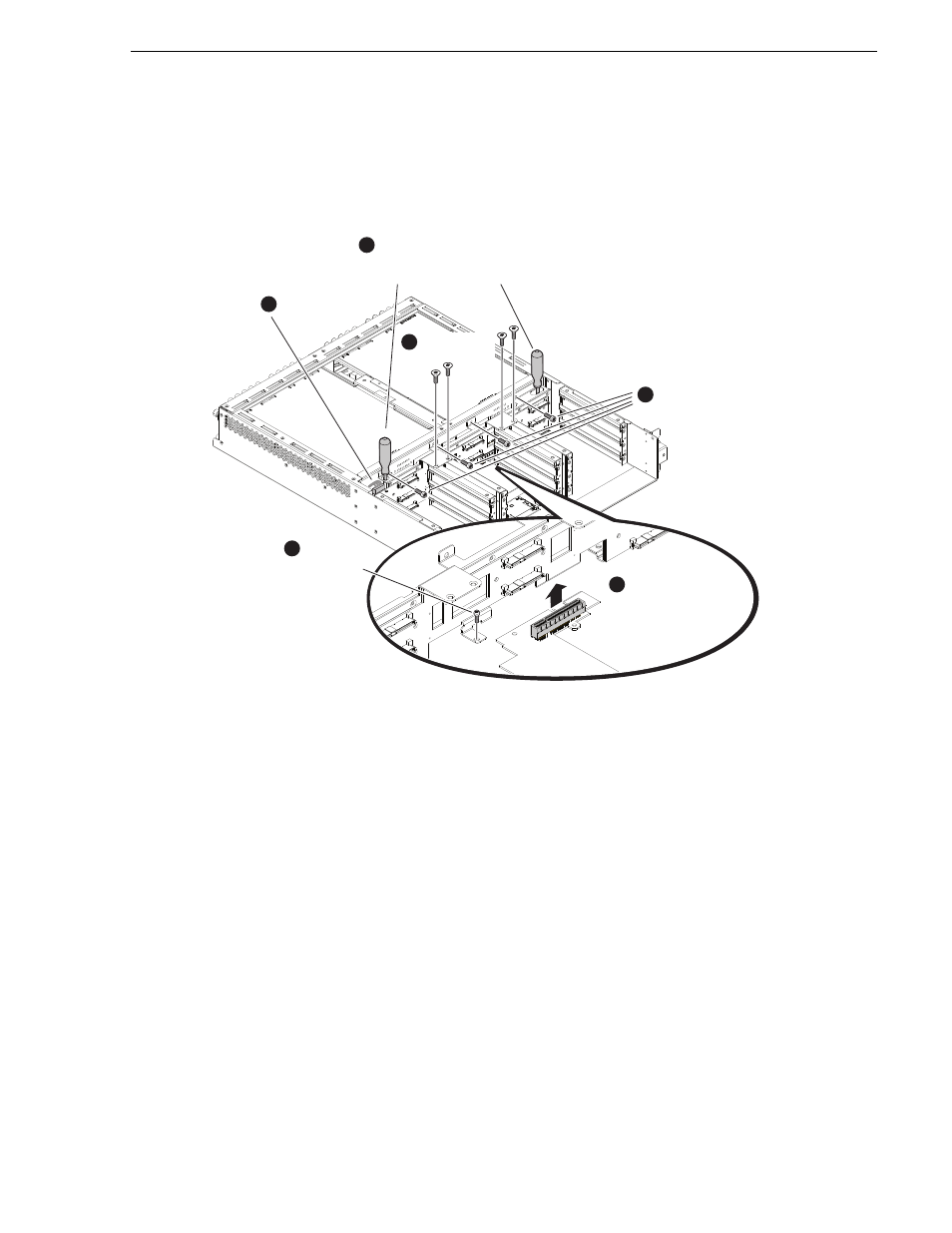

Disk backplane unit removal

Disk backplane unit removal

To remove the disk backplane unit, first remove the top cover, front bezel assembly,
and disk modules, then proceed as illustrated.

Insert torx tool
through access holes
to remove 4 bottom screws

2

Disconnect
cable

* Use a #2 Phillips
screwdriver for
top screws.

1

Remove
screw

5

Remove 4
front screws

4

Remove 4
top screws*

3

Disconnect from
disk controller
board

6
