80 8995UPC/DNC/UDX — Instruction Manual
Configuration
Audio Delay Web Page

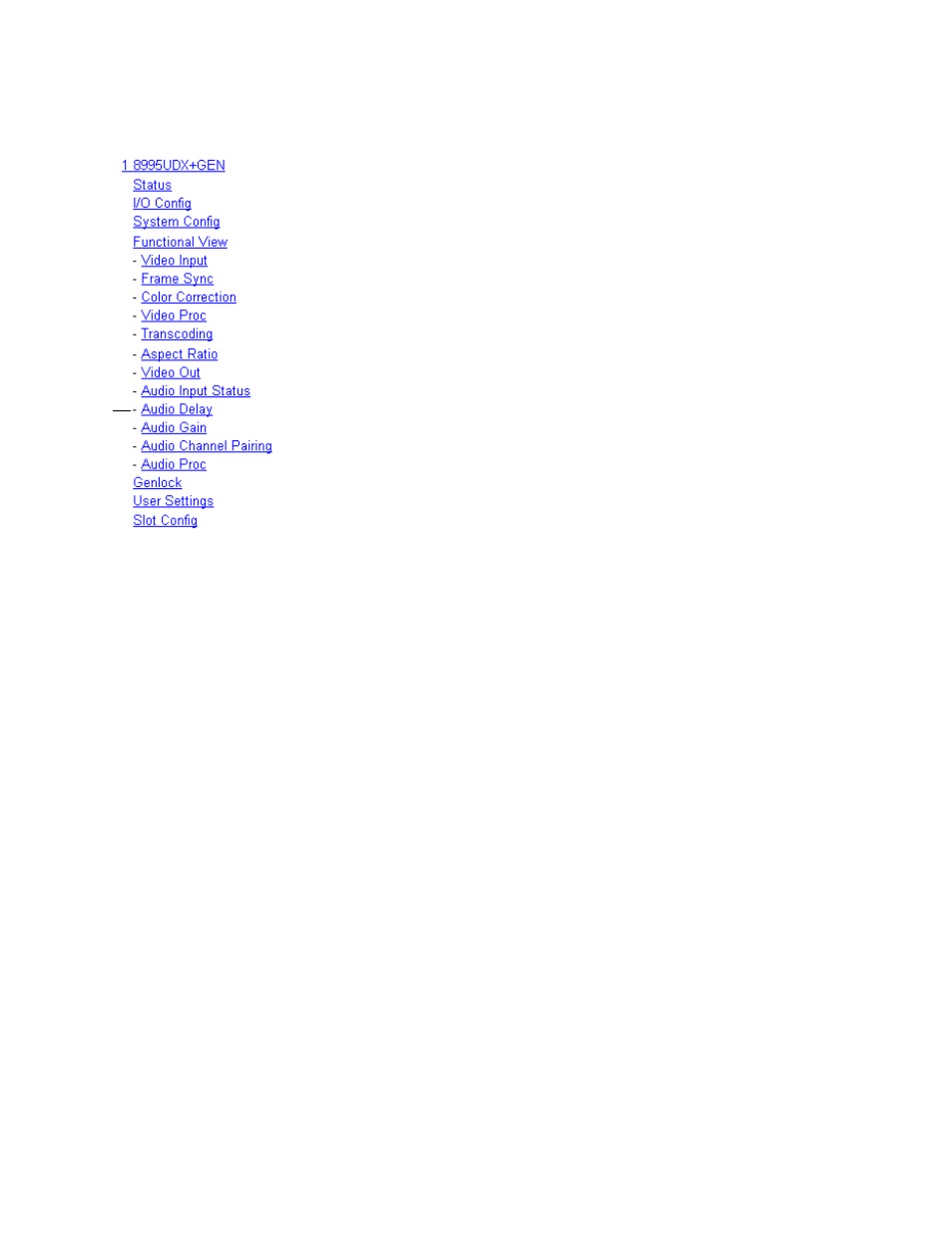

Use
this
link
The Audio Delay web page ( Figure 50 on page 81 ) allows selection of the
eight audio streams in the four audio groups for audio delay adjustment
with respect to video delay for Channel A and Channel B.
Audio Disruption Processing
This control can be enabled to disable V-fade and X-fade operations so
audio clicks and pops are not passed to the output.
View Select
Select the audio streams to view and adjust for delay by selecting one of the
following buttons:
• Streams (1-2)
• Streams (3-4)
• Streams (5-6)
• Streams (7-8)
Stream (1-2) is illustrated in Figure 50 on page 81 . Under each stream, the
Channel A and Channel B group and stream numbers will be reported.
Delay
Use the Delay controls for Channel A and Channel B to adjust the indi-
vidual channel delay from ±33.786ms (29.97Hz), ±40ms (25Hz), and
±41.708ms (24Hz) with respect to video delay.
To lock the channel delay setting together, select the Channel Delay Lock
checkbox.
