Active Format Description
AFD = 1110
16:9
(with alternative
14:9 center)
Image with a 4:3 aspect ratio and with an alternative 14:9 center in a 4:3 coded
frame.
AFD = 1111
16:9
(with alternative
4:3 center)
Image with a 16:9 aspect ratio and with an alternative 4:3 center in a 16:9 coded
frame.

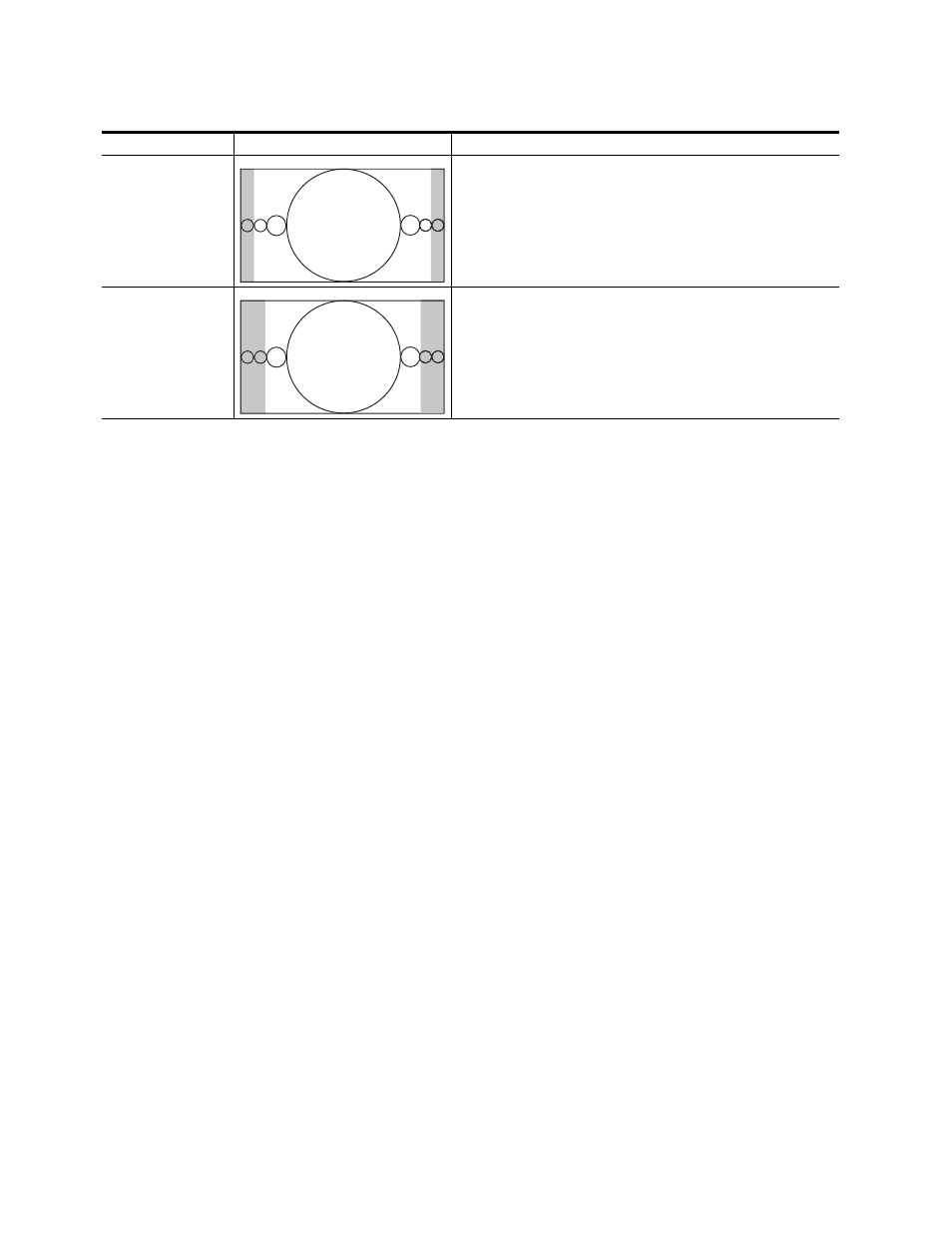

Table 15. AFD Codes in 16:9 Coded Frames
Active Format Illustration in a 16:9 Coded Frame Description
