46 8995UPC/DNC/UDX — Instruction Manual
Configuration
I/O Config Web Page
Use
this
link

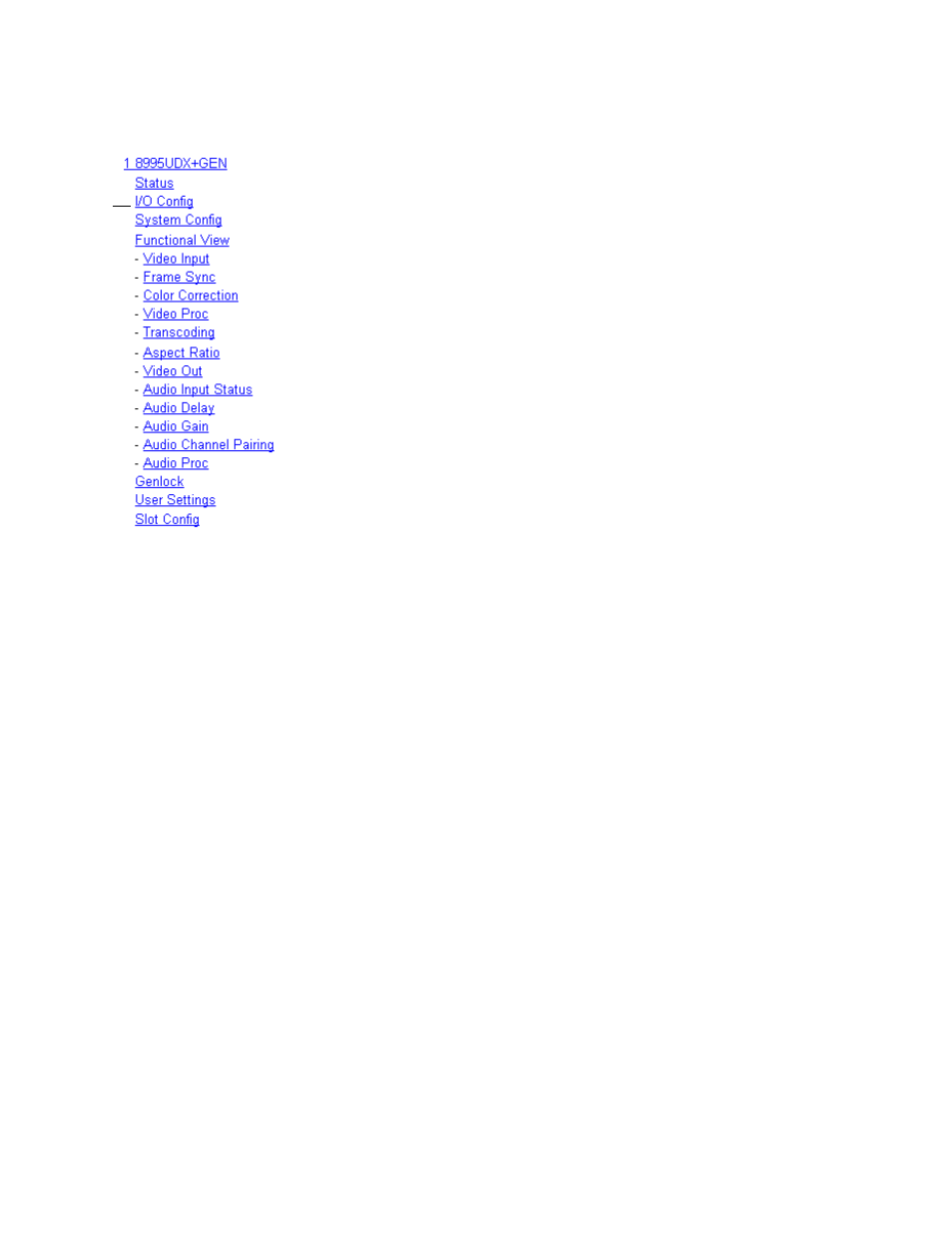

Use the I/O Config web page ( Figure 24 on page 47 ) for the following:
Rear Connectors
All of the input and output connectors on the corresponding 8995UDX-R
rear module are illustrated on the I/O Config web page. The inputs can be
configured with the following controls:
• Signal Naming – use the factory default signal names or type the desired
input name (up to 11 characters) into the corresponding boxes for each
input. The status of each input is indicated by the color of the display.
• Reporting Enabling – status reporting of each input type can be enabled or
disabled by selecting or deselecting the corresponding checkbox in the
Reporting Enabled column for each input type. You may disable reporting
for inputs not being used if desired to avoid error messages. Status
color of the signal will not change. The
Reporting Enabled column used
with an SNMP monitoring application such as NetCentral.
Refer to Status Monitoring on page 106 for an explanation of the color
coding and using an SNMP monitoring application.
Note Outputs are not monitored in this application.
