20 8995UPC/DNC/UDX — Instruction Manual
Installation
To install the fiber optic submodule:
1. Slide the fiber optic device into the metal fiber cage with the label and
handle to the right.
2. Push the device in as far as it will go without forcing it. It will not go
completely into the cage.
3. Cable the fiber optic connectors according to the instructions given in
Fiber Optic Video Inputs on page 22 or Fiber Optic Video Outputs on
page 22 depending on the type of submodule used.

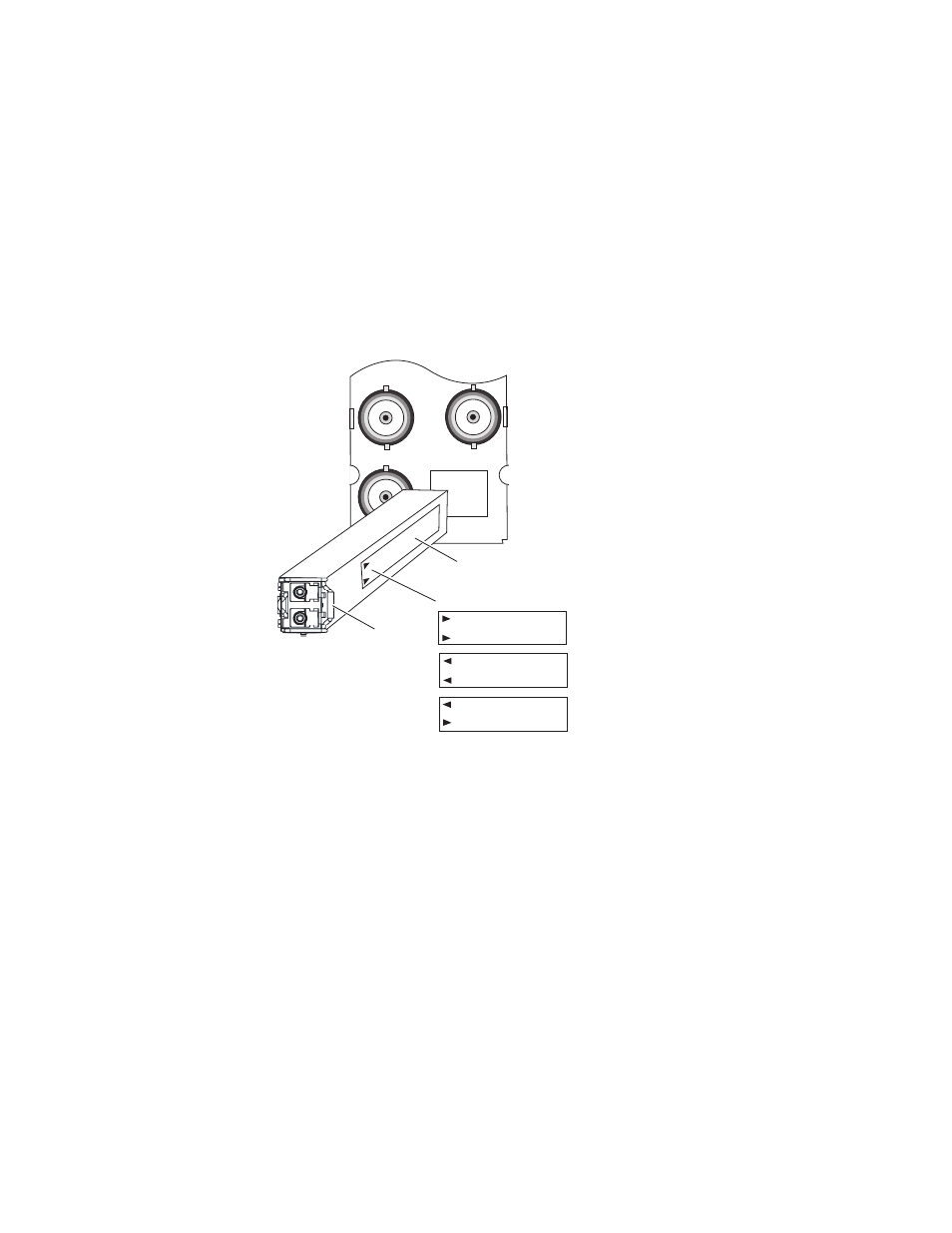

Figure 6. Installing Fiber Optics Submodule
Removing an SFP Submodule
If you need to remove an SFP submodule, snap the handle out and pull the
submodule slowly out of the metal cage.
FIBER
J7
J9
J8
8431_03
r3
Label
Handle
Arrow Indicators:
Fiber Optic Receiver
Fiber Optic Transmitter
Fiber Optic Transceiver
