Remove the terminal cover
DANGER!
Danger of death due to electric shock!
– Disconnect the controller from the power
supply before removing the terminal cover.
– Ensure that the power supply to the open
unit cannot be switched on inadvertently.
n Loosen the screw 4 (Fig. 27).
n Remove the terminal cover 5 .
Attach the terminal cover
n Position the cover 5 .
n Tighten the screw 4 with a torque of 0.5 Nm.
Mount the housing
The controller is firmly fitted. This section should
be consulted only in service situations (changing
the controller).
√ The mounting location fulfils the required usage
conditions; for more information, see .
√ The mounting surface is vertical and enables free
mounting in an easily-accessible position.
DANGER!
Danger of death due to electric shock!
– Before opening the housing, disconnect the
controller from the power supply.
– Ensure that the power supply cannot be
switched on inadvertently when the
housing is open.
– Do not use the housing as a drilling tem-
plate.
1. If required, remove the terminal cover.
2. Screw in the screw for the top mounting
opening 1 (Fig. 28) so that the screw head
has a distance of 5 ... 7 mm to the mounting
surface.
3. Hook the controller on to the screw at the top
mounting opening and align it vertically.
4. Mark the bottom mounting opening 2
through the controller housing.
5. Remove the controller and prepare the
mounting hole for the bottom screw.
6. Hook the controller to the top mounting
opening 1 and fix it through the bottom
mounting opening 2 with the screw.
7. Attach the terminal cover.
2
1

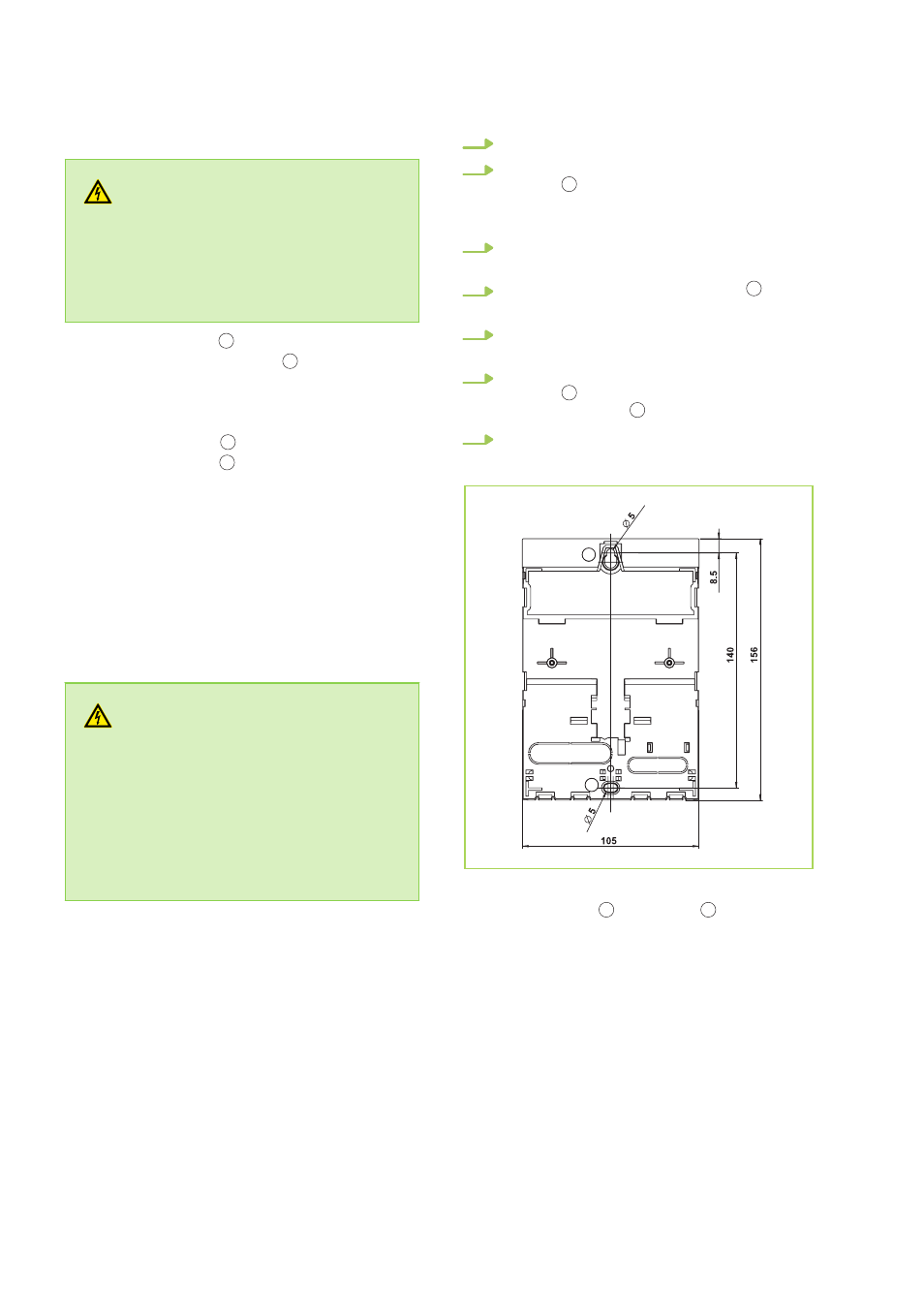

Fig. 28: Rear of the controller with the mounting
openings at the top 1 and bottom 2
