Dynamic Eq.
Cell 1
Dynamic equalization
Dynamic Eq.
Cell 2
Dynamic Eq.
Cell 3
In Out
In
Out
Sidechain
filter
Gain control
Threshold
Atk/Rel.
Above/Below
Dynamic filter
Level
Meter
Dyn. Gain
Meter

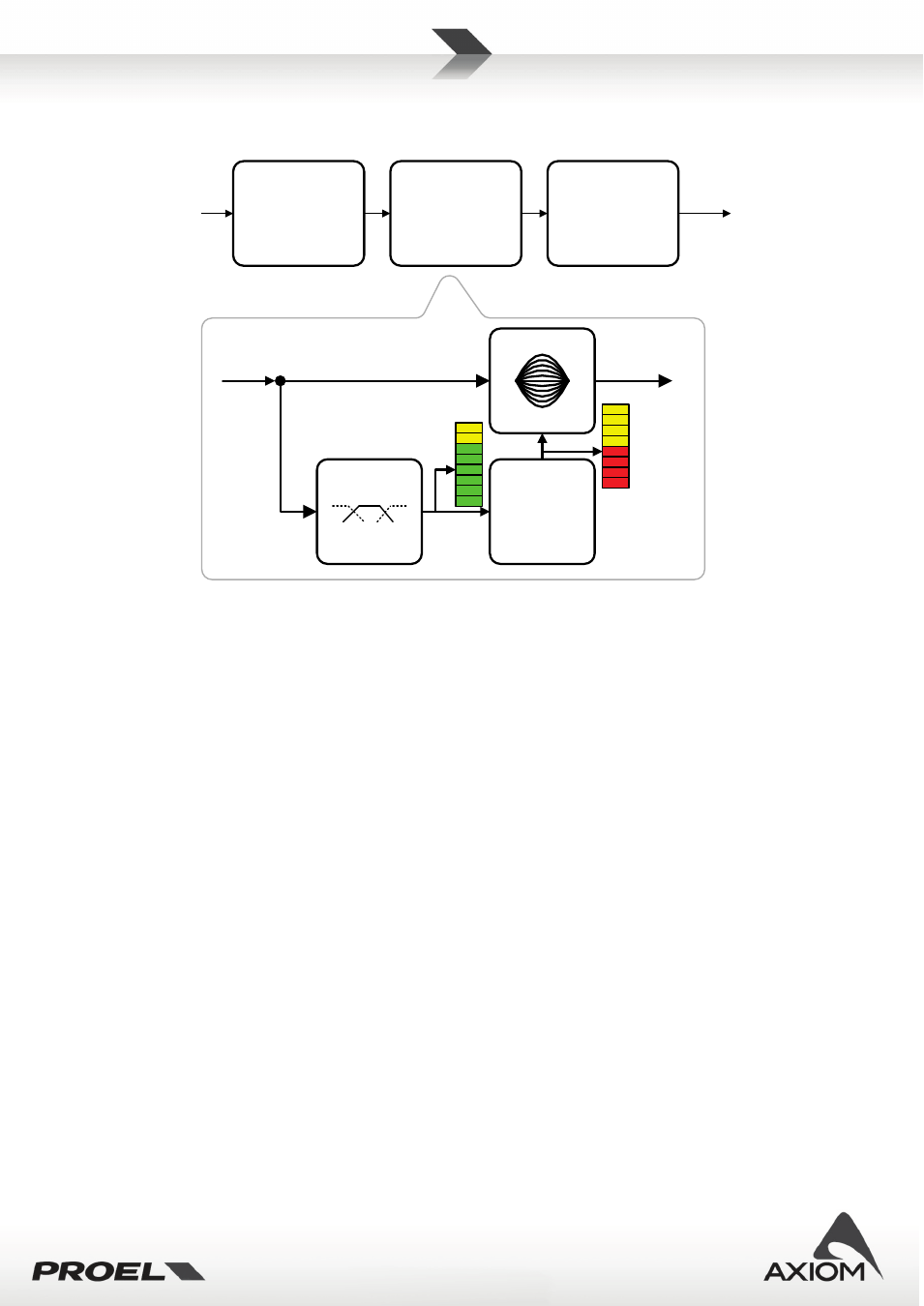

Fig.56 Dynamic equalizer cell.
6.5.2 Parameters
Frequency
Sets the frequency for the equalizer filters, in steps of 1/20 octave from 15.6Hz to 22627Hz.
The frequency can be edited in the numeric edit box, can be scrolled by the spin buttons or by the up/down
arrow keys of your keyboard, or can be edited moving the colored graphic dots marked on the frequency
response window (if “gain dragging” option has be enabled in PRONET “Settings” ).
Gain
Maximum gain of the dynamic equalizer filter, from +15dB to -15dB in 0.2dB steps. Inside the working region
the gain value of the filter is dynamically controlled by the level of the input signal and it can vary from 0dB
(no action) to the Gain value defined by the parameter. The amount of gain/reduction is visualized by the
dyn. gain meter.
The Gain can be edited in the numeric edit box, can be scrolled by the spin buttons or by the up/down arrow
keys of your keyboard, or can be edited moving the colored graphic dots marked on the frequency response
window (if gain dragging option has be enabled in PRONET “Settings” ).
Band
Controls the aspect of the parametric equalization filter; this parameter is not available for shelving filters.
Type
This drop-down menu selects the type of filter used. Note that changing the filter type restores a default
setup condition for the parameters of the filter cell.
Filter types available are: Parametric, Low Shelving 6dB/oct, High Shelving 6dB/oct
