Handle
Product Reference Guide A-9

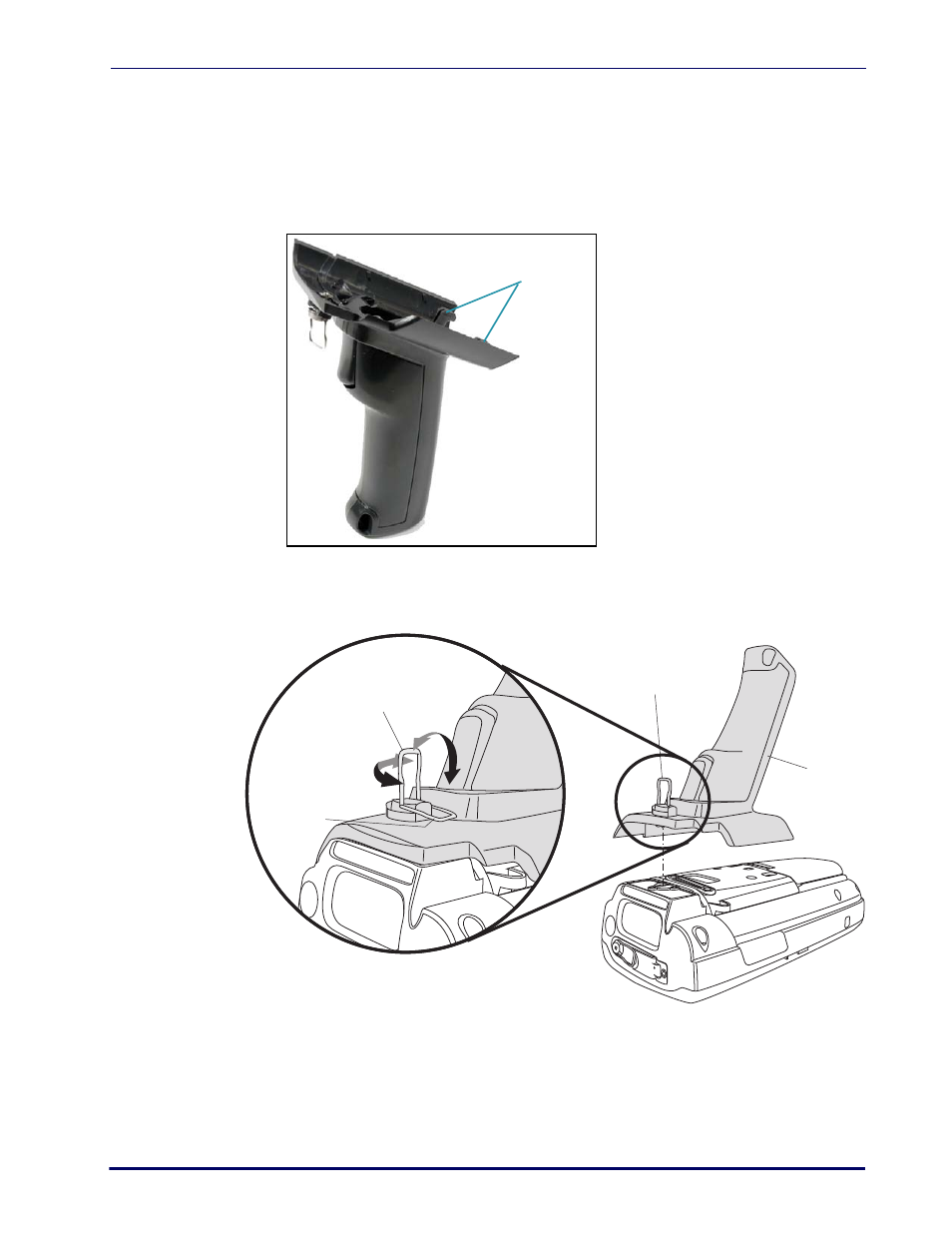

Installing a Handle on the Pegaso
The handle may be installed without removing the handstrap. To install the handle on
the Pegaso, complete the following steps:
1. Align the “ears” on the handle with the corresponding holes on the underside of
the Pegaso and slide them into place.
2. Seat the top of the Handle against the Pegaso and turn the quarter-turn fastener to
secure the Handle to the unit.
The trigger is automatically activated and available. Press to initiate scanning
Ears
Handle
Locked
Position
Unlocked
Position
1/4 Turn Latch
