Wi-FI
Product Reference Guide 2-27
To initialize SCU:
1. Go to Start> Settings > Control Panel.
2. Tap on the Wi-fi icon.
SCU Windows
SCU has five tabs: Main, Profile, Status, Diags (Troubleshooting), and Global Settings.
Tabs enable easy navigation. Each tab is described in more detail in this section.
Main Tab
Reference Figure 2-22 on page 2-27 to view the features of the Main tab.
• Enable/Disable Radio : Select or deselect to enable or disable the radio.
• Active Profile: Displays the name of the active configuration profile. An administra-
tor can use the selection list to select a different profile.
• Association Status: Indicates if the radio is associated to an access point and, if not,
what the radio’s status is.

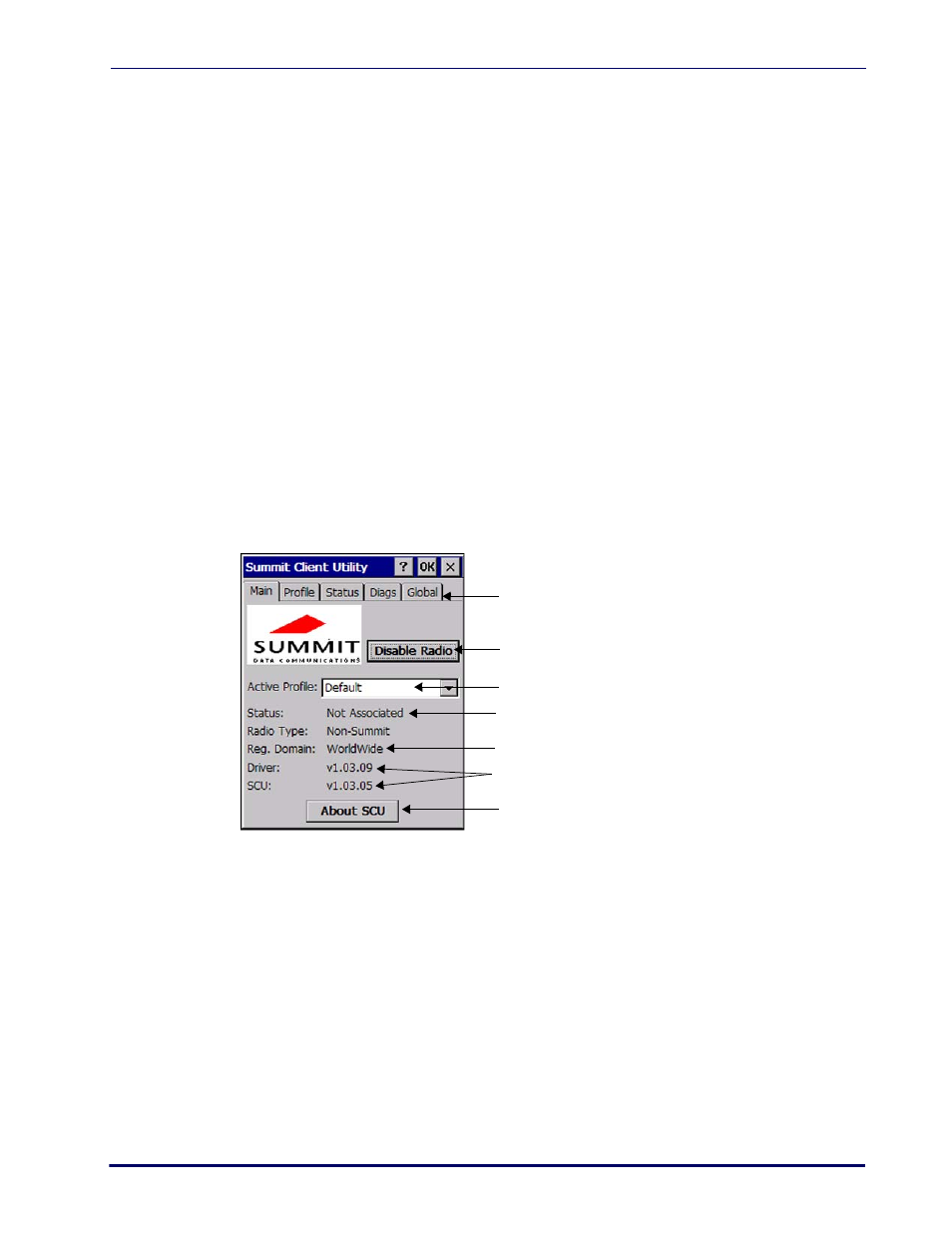

Figure 2-22. Main tab
• Regulatory Domain: Indicates the regulatory domain or domains for which the
radio is configured. “Worldwide” means that the radio can be used in any domain.
The domain cannot be configured by an administrator or user.
• Software Versions: Indicates the version of the device driver and the version of SCU
that are running on the device.
• About SCU: Supplies information on SCU.
Profile Tab
Profile settings are radio and security settings that are stored in the registry as part of a
configuration profile. When a profile is selected, its settings become active. An adminis-
trator can define, edit, or delete up to 20 profiles in the Profile tab in SCU. Profile
changes made are saved only when the
Commit button is pressed.
Enable/Disable
Active Profile
Association Status
Regulatory Domain
Software Versions
About SCU
Tabs
