Accessories
A-2
Pegaso™ Industrial PDA with Windows
®
CE
Power Supplies
Powered USB Cable & Power Supply

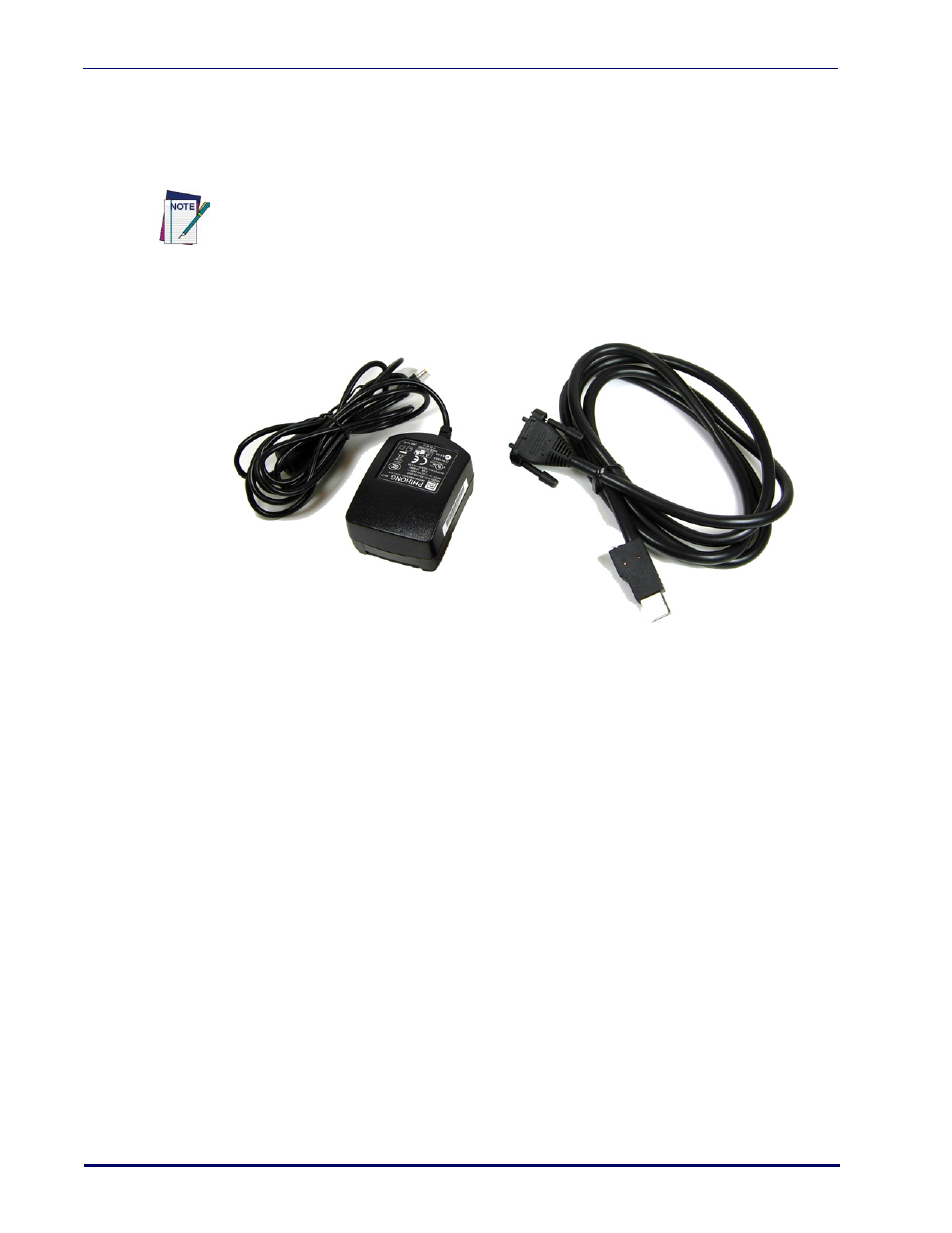

Figure A-1. Power Supply and Powered USB Cable
Battery Pack
The Battery Pack and the Battery Door are integrated and are not sold separately. The
Pegaso is available with either a standard or high-capacity battery.
To remove the Battery Pack on the Pegaso, complete the following steps:
1. While pushing the Battery Latch (shown in Figure
), lift out the Battery Pack,
top first.
2. To replace, seat the bottom end first, then click the Battery Pack into place.
Use only the correct battery chargers and docks with this Windows CE Pegaso. The tech-
nology used for these models is incompatible with other Datalogic chargers and docks.
