Ethernet Module
Product Reference Guide A-7
8. Click on TCP/IP Settings and Security Settings and fill in as needed to connect to
the remote server. Check with your network administrator for settings. Tap Finish
when complete.
9. Double tap the newly named connection.
10. Fill in the necessary username, password, and domain.
11. Tap Connect to continue.
A PPP connection has now been created. TCP/IP network communications can com-
mence.
Ethernet Module

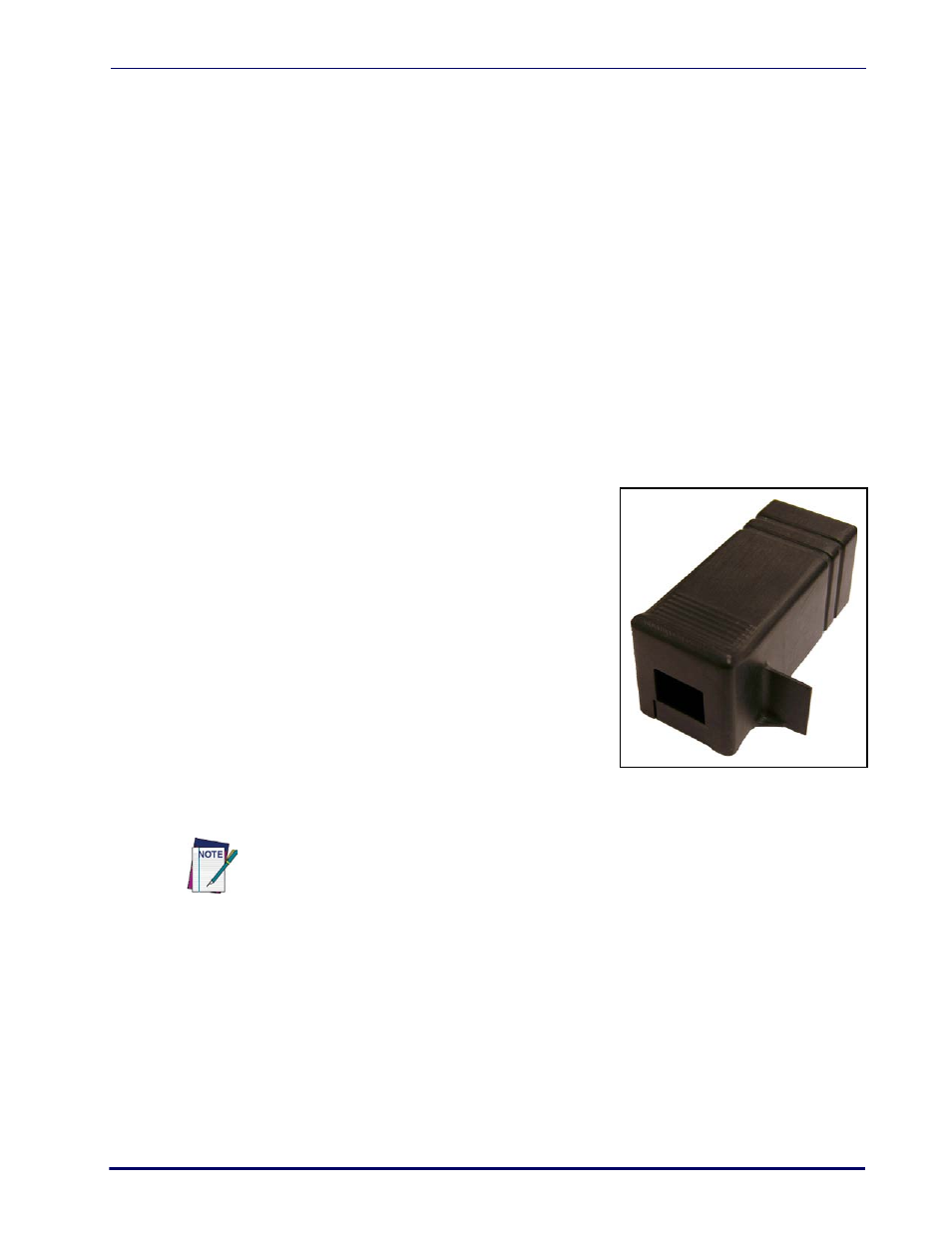

The optional Ethernet Module allows the Pegaso to connect to an Ethernet network.
There are two LEDs; one for 10/100 Mbps link and the other for Tx/Rx. The commu-
nications rate is 10/100Mbps – Auto-negotiate.
To Connect:
1. Remove the Pegaso from the dock, and
unplug the power from the Dock.
2. Plug the ethernet module into the Dock, then
plug a CAT5 cable into the Ethernet module.
3. Replace the Pegaso into the Dock, and restore
power to the Dock.
A network icon will be displayed in the system tray.
All normal network activities can now take place.
Handstrap
Removing the Handstrap
An elastic Handstrap is included with the Pegaso. To remove the Handstrap, complete
the following steps. Reference Figure
A-8 while performing these actions.
1. Grasp the lower handstrap attachment and pull to slide out from the unit.
2. Using a Phillips screwdriver, remove the two screws securing the upper handstrap
attachment to the unit.
It is not necessary to remove the Handstrap to install the Handle or the Belt Clip.
