3-8.4.2. Mechanical Pulser
• 2-Wire Pulser, powered by the CFN PLUS.

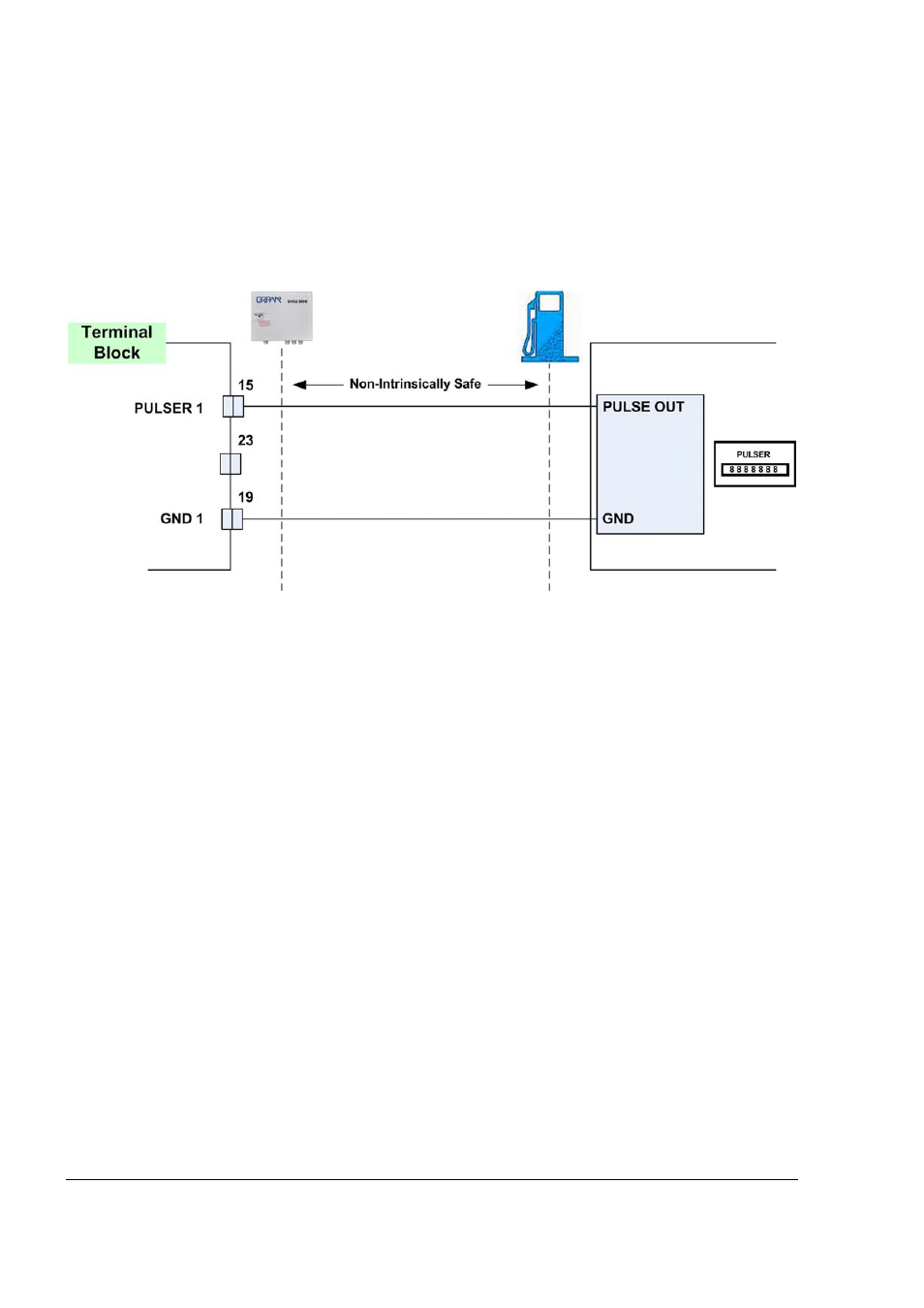

Figure 3-17 shows a schematic diagram of the connections between the Terminal Block and a
2-wire Pulser.
Figure 3-17 Terminal Block and 2-Wire Pulser – Wiring Connections
