Gasboy CFN Plus User Manual
Page 48
CFN
PLUS
Manual
34
2
2
-
-
8
8
.
.
W
W
I
I
R
R
I
I
N
N
G
G
T
T
H
H
E
E
P
P
E
E
R
R
I
I
P
P
H
H
E
E
R
R
A
A
L
L
S
S
2-8.1. Pump Wiring
CFN PLUS is capable of directly driving pump motors up to 3/4 HP at 115 VAC or 1-1/2 HP at 230
VAC. A separate circuit breaker should be supplied for each dispenser. Wire the pump as follows:
• Wire one Mains AC cable from the UPS-MCC to the pump enclosure, for electronic pump
head.
• For an electronic pump, wire RS485 / Current Loop / Tokheim communication cable from
the CFN PLUS to the pump head.
• Wire one 0.4" (10 mm) ground cable from the Mains ground connection to the pump
chassis.
• The communication cable shield must be connected to ground at one end-side only,
preferably at the controller installation side (see Figure 2-10).
• For mechanical pumps, wire the control cable, in-use cable, pulser cable and cable
according to Table 2-2.

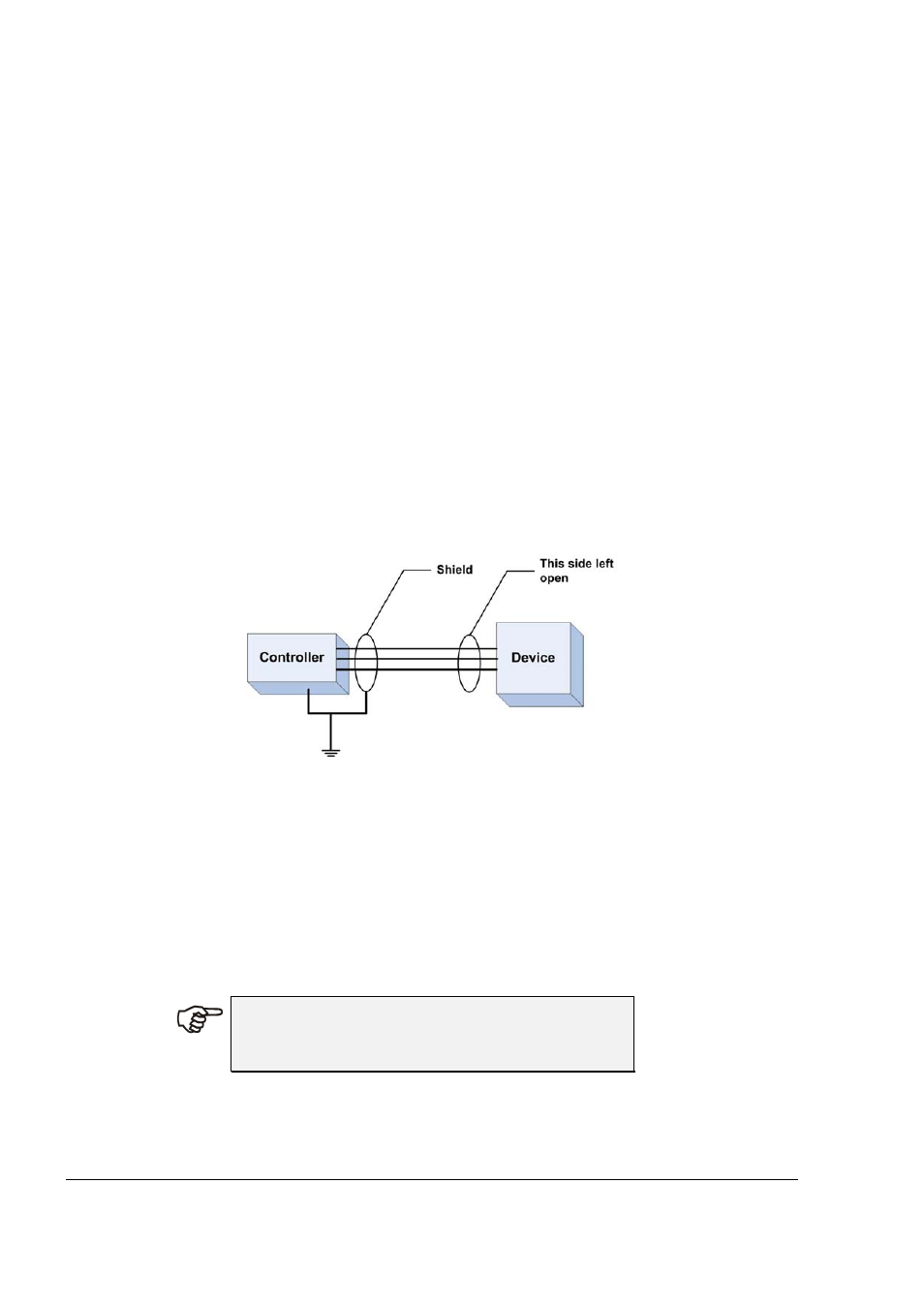

Figure 2-10 Communications Cable Wiring
2-8.2. TLG wiring
RS-232/LAN is used for communication between the TLG and CFN PLUS. Follow these
installation requirements when installing the RS-232/LAN communications lines:
N
N
O
O
T
T
E
E
These requirements shall be compatible with the
recommendations of the TLG manufacturer.
• Distance: the following distances must be adhered to when installing the
communication lines:
