CFN PLUS Manual

43

3

3

-

-

5

5

.

.

C

C

O

O

N

N

N

N

E

E

C

C

T

T

I

I

O

O

N

N

S

S

T

T

O

O

C

C

F

F

N

N

P

P

L

L

U

U

S

S

All connections to the CFN PLUS must be performed to the Terminal Block located at the bottom
of the CFN PLUS pedestal by (see Figure 3-4). The required connections are:

1. Dispenser wiring connections:

• Pulser (Low Voltage)
• In Use signal (High voltage)
• Valve (High voltage)

2. Communications

• RS-232 to TLG Controller to Gas Tank
• RS-485 for peripheral device
• Pump communication line (e.g. Current Loop, RS485, Tokheim, RS-422)

3. Mains AC Power and Ground
4. LAN connection.

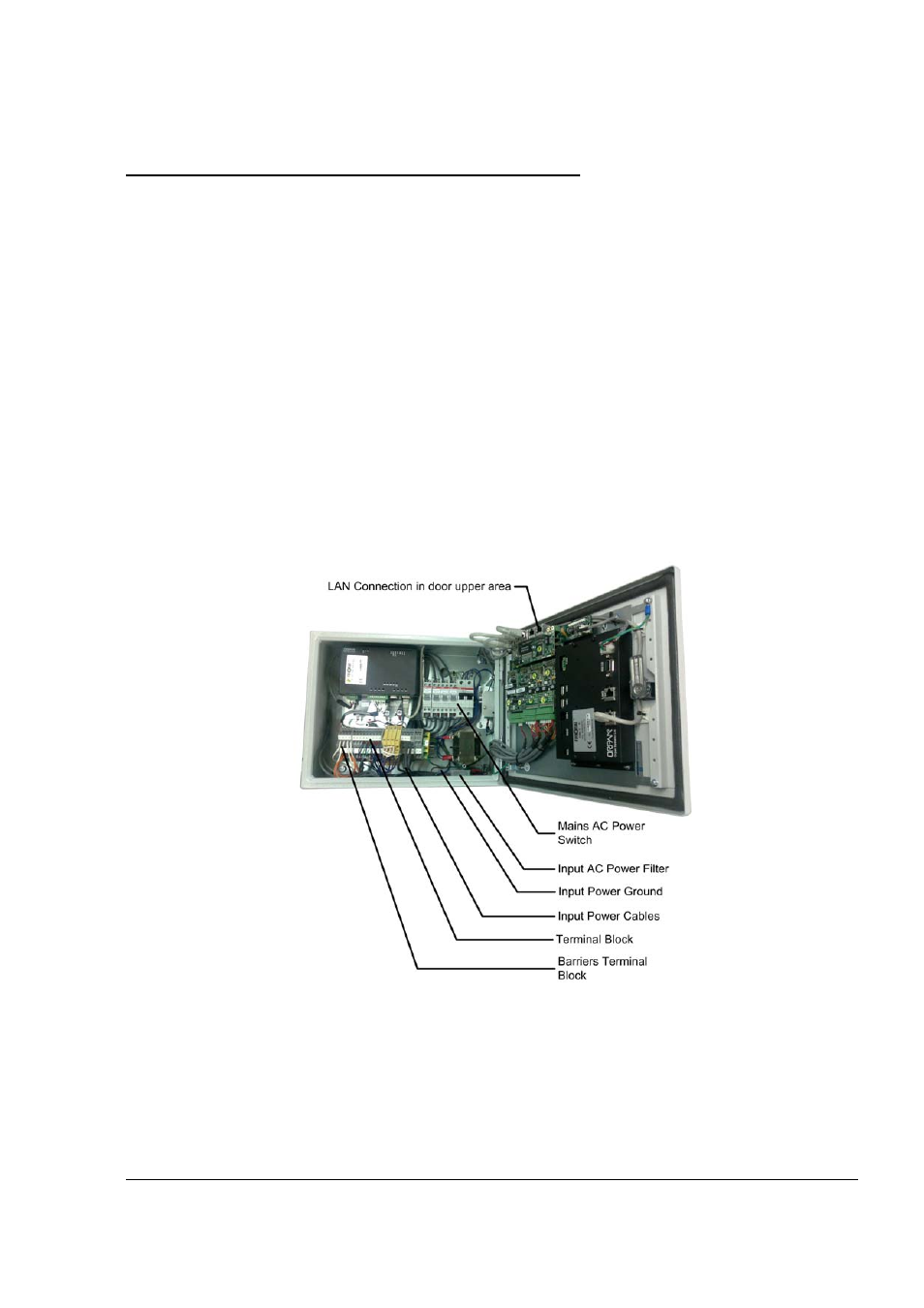

Figure 3-4 CFN PLUS Terminal Block, Power and LAN Connections
