Gasboy Site Controller II CPU User Manual
Page 16
Upgrading
Installing a New Memory Board
Page 12
MDE-4504 Site Controller II CPU/Memory Board/Program Upgrade Instructions · August 2005

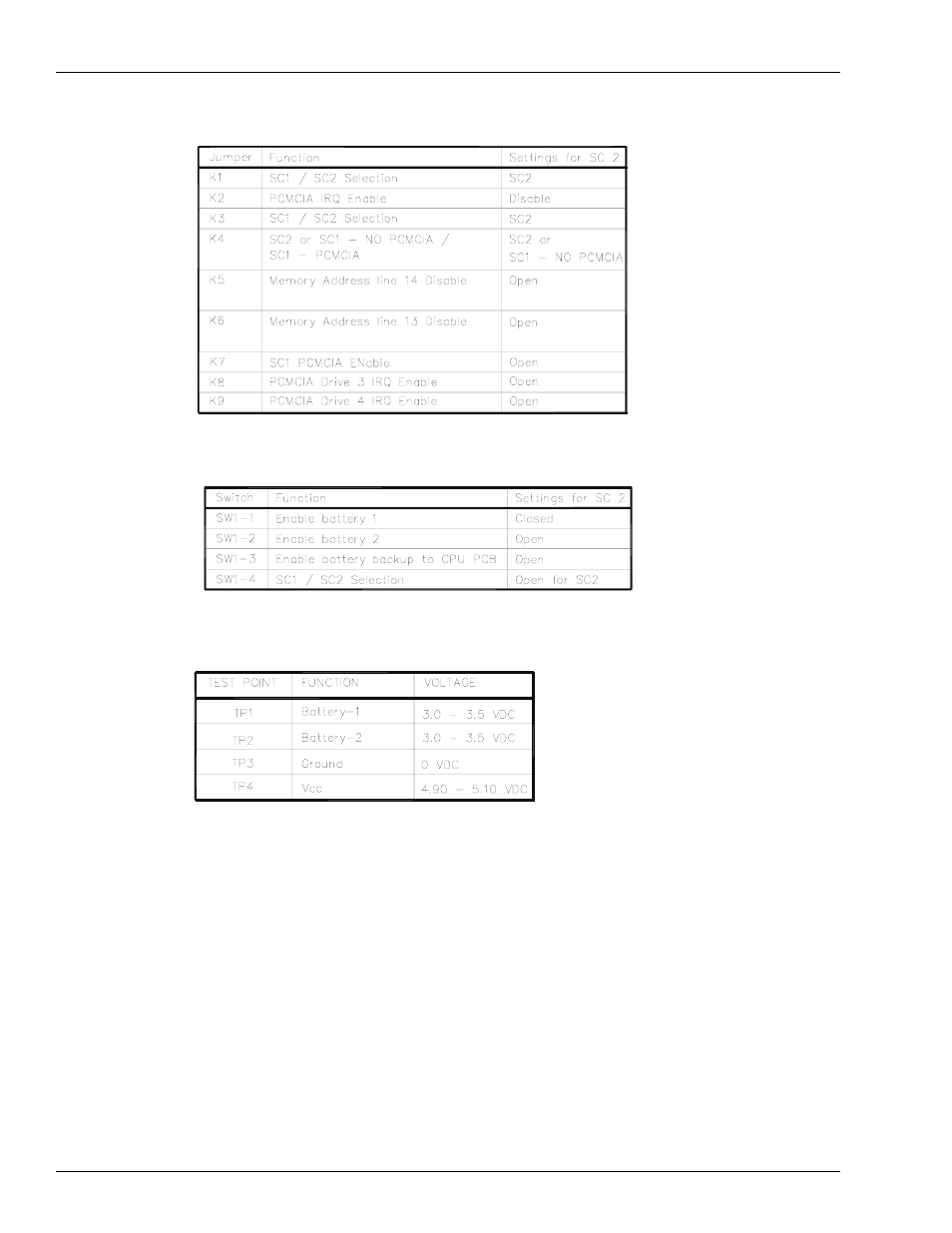

Jumpers
Switches
Test Points
6
Install the new memory board into the base of the Site Controller using the Phillips screws
removed from the base.
7
Install the new CPU board in the Site Controller, and secure the board with the Phillips screws
previously removed and reconnect cables.
8
Install the new D-site chip in the U36 socket on the CPU Board. Be careful to place the D-site
chip in the proper position, and do not bend any pins.
