MDE-5045 FiPay™ Server Retrofit Kit for 8-hose Islander Installation Guide · January 2013
Installing the FiPay Server and Additional Hardware
Components in the 8-hose Islander PLUS System
Preparing to Install the M13062K001 Kit
Before you begin installing the FiPay Server and additional hardware components in the
8-hose Islander PLUS system, proceed as follows:
1
Remove the screws/staples from both ends of the box (see
).
Note: Some boxes will be stapled.

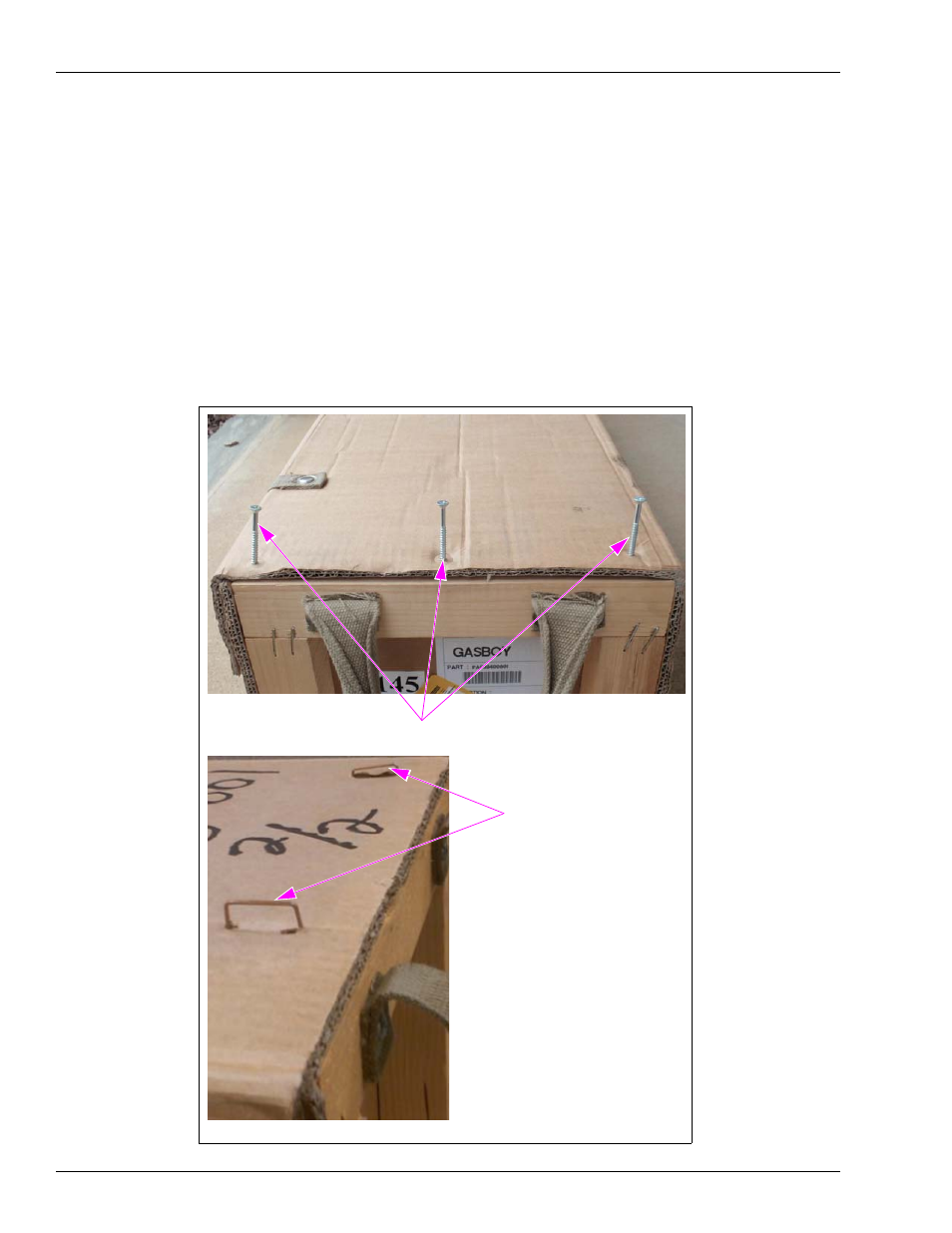

Figure 2: Removing the Screws/Staples
Screws on One End of the Box
Staples
(i)
(ii)
