Figure 6 – Gasboy Blackmer GDP User Manual
Page 14
Page 14
MDE-4096C Blackmer® Global Dispenser Pump Operation, Maintenance and Kit Installation Manual · April 2008
Maintenance

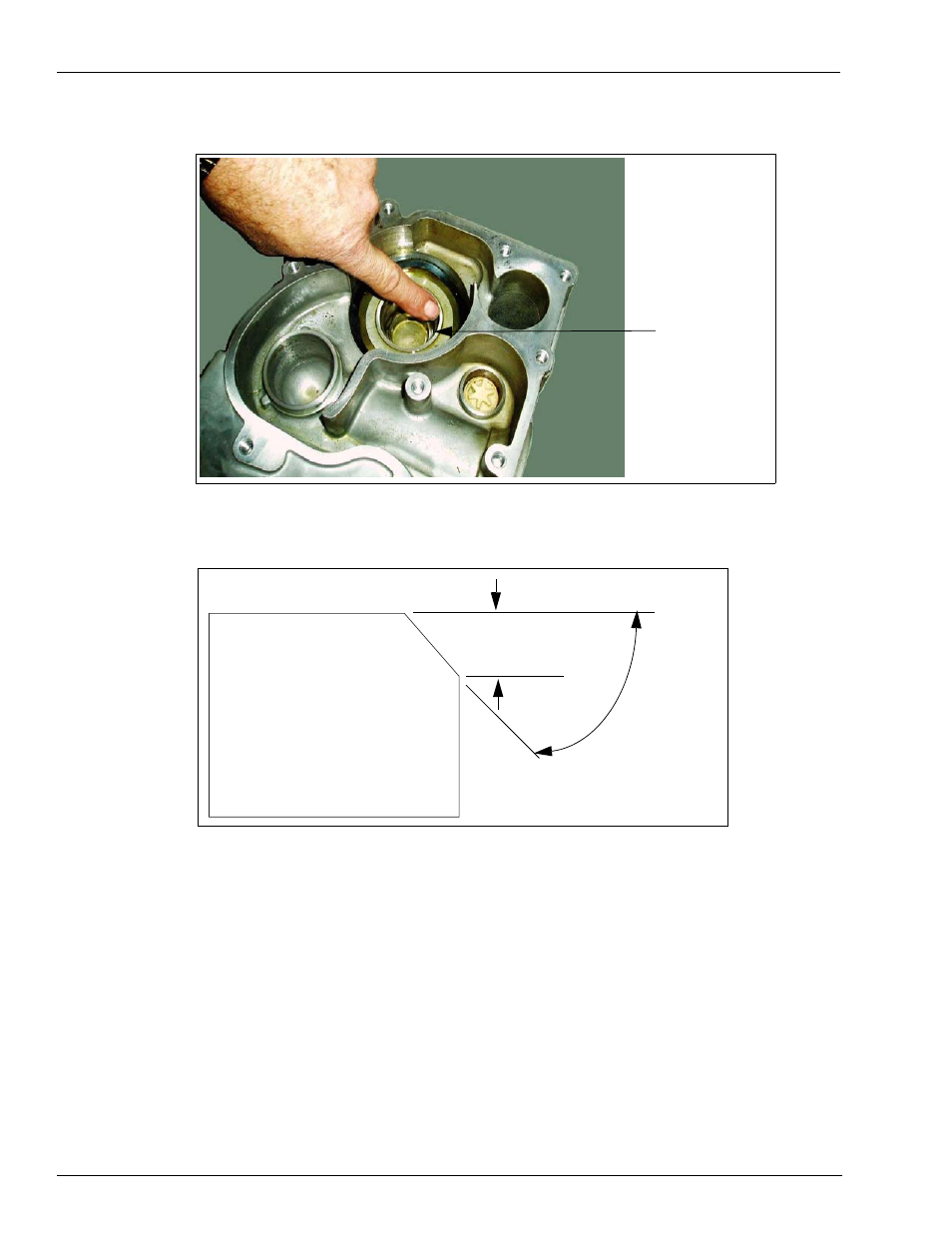

Figure 5: Pump Body
Using a file or
sand paper, break
corner as shown
(See
Figure 6: Breaking Corner
0.060” Max.
35°
Note: This figure represents a rough
approximation.
To install the pump cartridge, proceed as follows:
1
Install the wave spring (6) in the cartridge bore with the dowel pin hole exposed by the gap in
the wave spring (see
on
