21
2 P
RODUCT DESCRIPTION
2.3 O
PERATING MODES
ALS
104
GB
Functions
Every submenu contains functions for setting the unit
controls.
Figure [23] shows the buttons functions for changing
the configuration with the example of
LABEL SETUP >
Missing Labels
.
2.3.3 Function overview

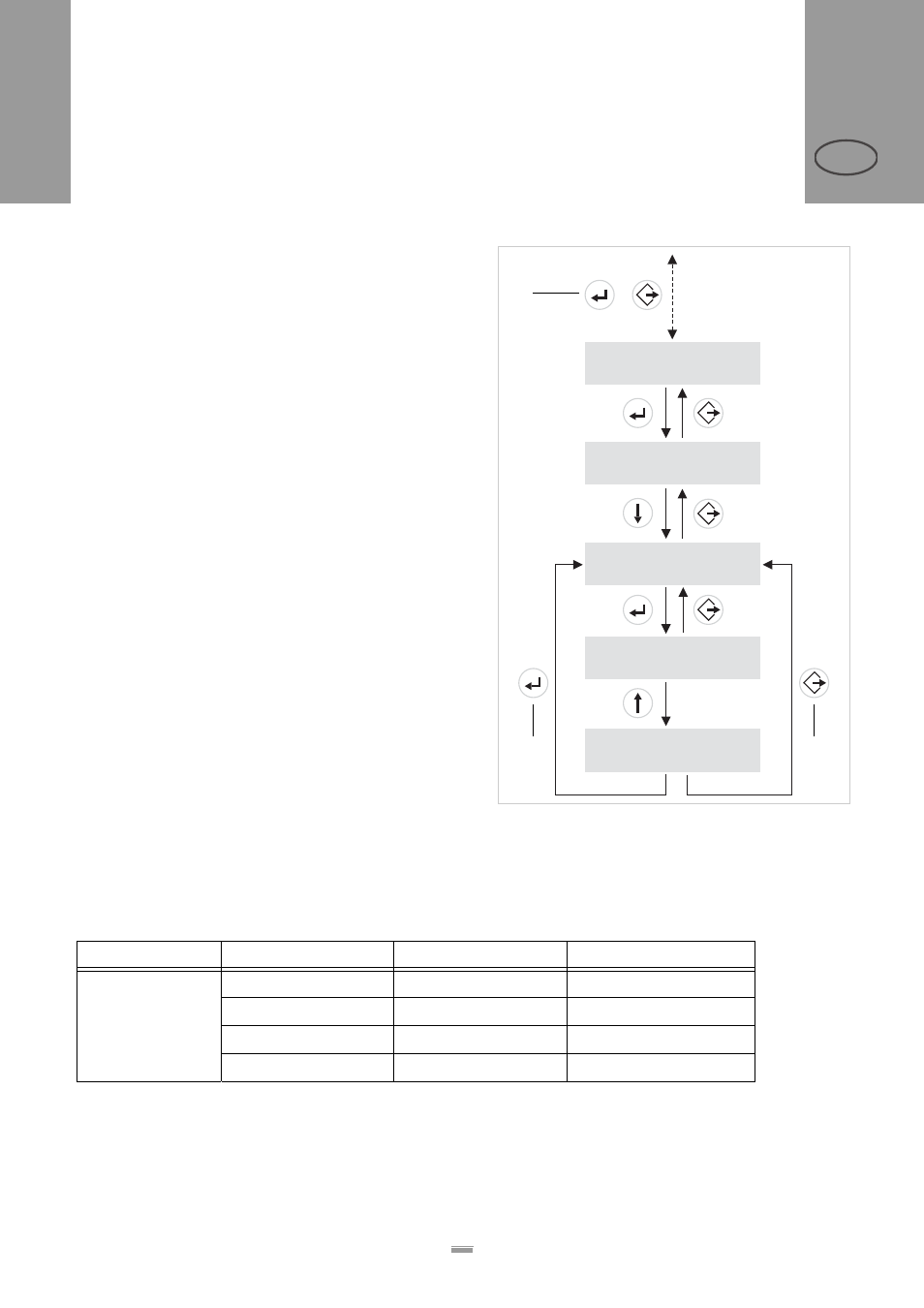

[23] Button functions when using the LABEL SETUP > Missing
Labels function.
A Button combination for ‘Switching between configuration
and dispensing mode’
B Button to ‘Accept changes’
C Button to ‘Cancel changes’
LABEL SETUP
3x
LABEL SETUP
Missing Labels
Missing Labels
Alarm after 1
Dispense speed
Alarm after 2
+
LABEL SETUP
Label Size
A
B C
1) The functions in the SERVICE FUNCTIONS menu are password protected.
[24] Overview of the menus and functions.
Menus: LABEL SETUP MACHINE SETUP SERVICE FUNCTION 1)
Functions: Label Size Factory Settings Run continuously
Stop Sensor Pos. Speed Adaption Machine Type
Product Length Encoder Resol.
Missing Labels Encoder Diameter
