SLH-Series AC High Power Electronic Load Appendix B
B-2 M540073-01 Rev C

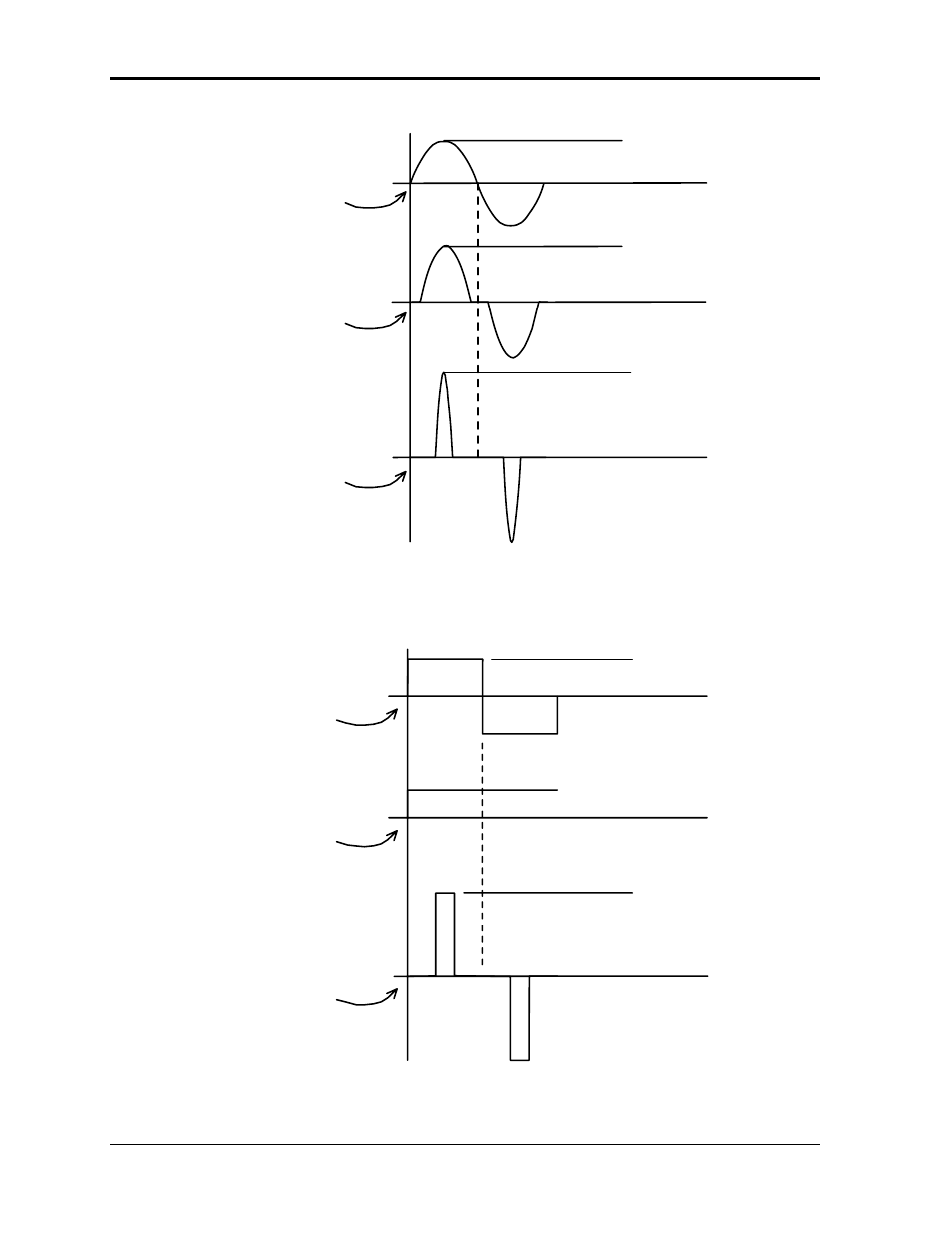

C.F. values of sine wave are √2-3.5 totaling 25 settings, described in the following figure:
√2
2.0
Peak
2.0Peak
3.5
3.5Peak
Voltage Wave Form
when C.F. = 2.0
when C.F. = 3.5
Zero Crossing
Zero Crossing
Current Wave Form
Current Wave Form
Zero Crossing
C.F. Values of square wave are 1.0-3.4 totaling 15 settings, described in the following figure:
√2
1.0
Peak
0.707Peak
3.4
3.4Peak
Voltage Wave Form
when C.F. = 1.0
when C.F. = 3.4
Zero Crossing
Current Wave From
Zero Crossing
Current Wave From
Zero Crossing
