M540073-01 Rev C 2-1
SECTION 2
INSTALLATION AND MAINTENANCE
2.1 INSPECTION
The SLH-series High Power, AC/DC Electronic Load was carefully inspected before
shipment. If instrument damage has occurred during transport, please inform
Sorensen's sales and service office or representative.
Your SLH-series High Power AC/DC Electronic Load was shipped with a power cord
for the type of outlet used at your location. If the appropriate cord was not included,
please contact your nearest Sorensen sales office to obtain the correct cord. Refer to "
check line voltage " to check the line voltage selection and fuse type.
2.1.1 Line Voltage
The SLH-series High Power AC/DC Electronic Load can operate with 115/230VAC
input as indicated on the rear panel label (or 100/200VAC for Japan units). Make
sure that the factory check mark corresponds to your nominal line voltage. If not
correctly marked, perform the following procedures:
1. With the mainframe power OFF, disconnect the power cord.
2. Refer the drawing on the rear panel in Fig 2-1, set the switches to the proper
voltage as described in the following:
1 1 5
RANGE
SYNC INPUT

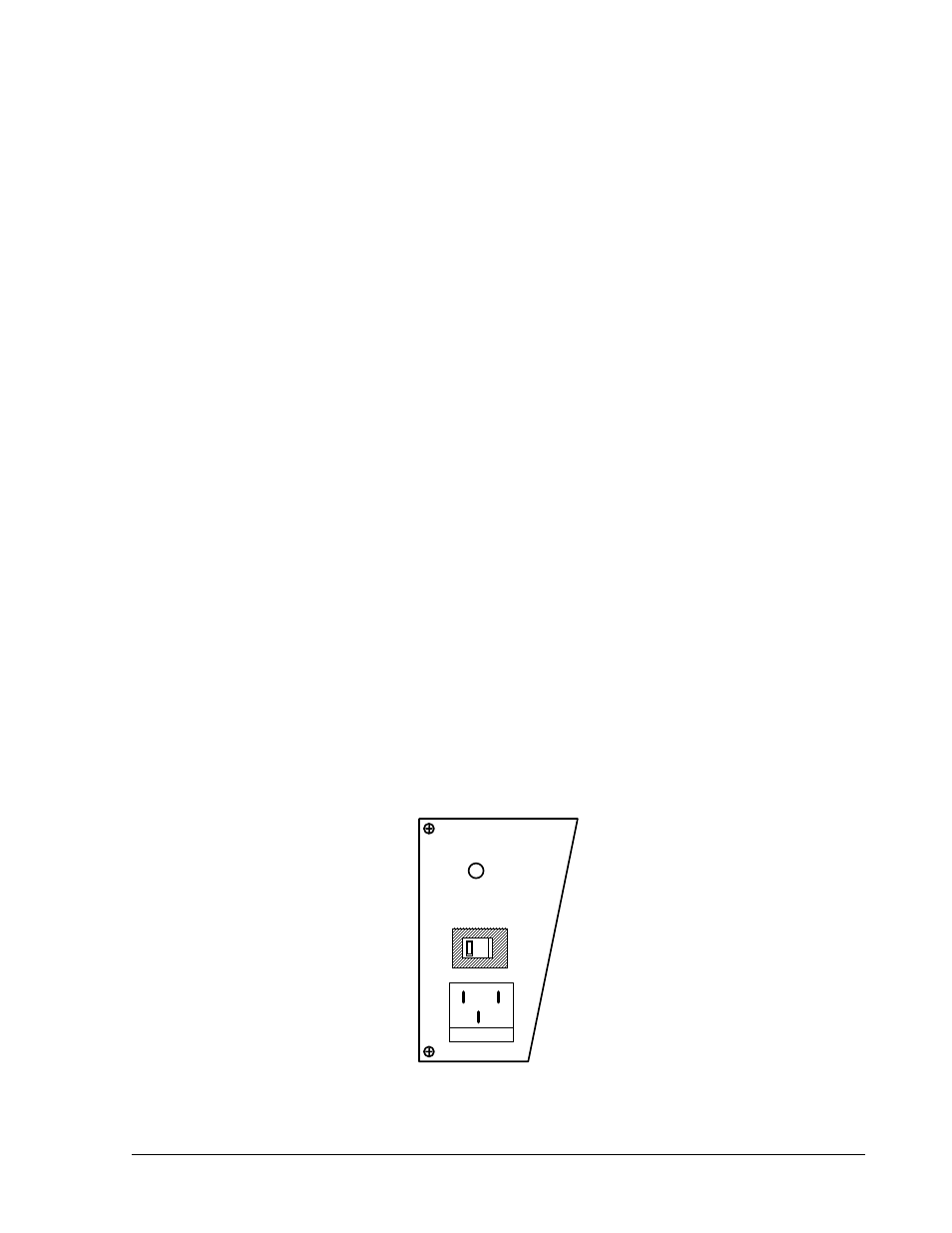

Figure 2-1 Setting Switch
