SLH-Series AC High Power Electronic Load Installation and Maintenance
Operation and Programming Manual 2-3
2.1.5 Tilt Adjustment
The SLH-series High Power AC/DC Electronic Load is equipped with tilt stands on its
two front feet, which can be flipped forward to provide an inclined viewing angle of
the front panel for bench-top use.
2.1.6 Service or Repair
If the instrument is damaged, please attach a tag to the instrument, identifying the owner
and indicating the required service. Follow the procedures detailed on Page iii of this
manual.
2.2 CONNECTIONS
PREVENT DAMAGE TO THE LOAD. Do NOT apply voltage or current with power
switched OFF. Turn ON the power switch to the load PRIOR to applying voltage or
current to the input terminals (i.e., before turning on the power supply under test).
2.2.1 Voltage Sensing Input (Vsense) BNC Connector.
To solve the conductor voltage drop under a big load current, Vsense-CLIP cable
can be used to connect with the specific point to be measured thus obtaining the

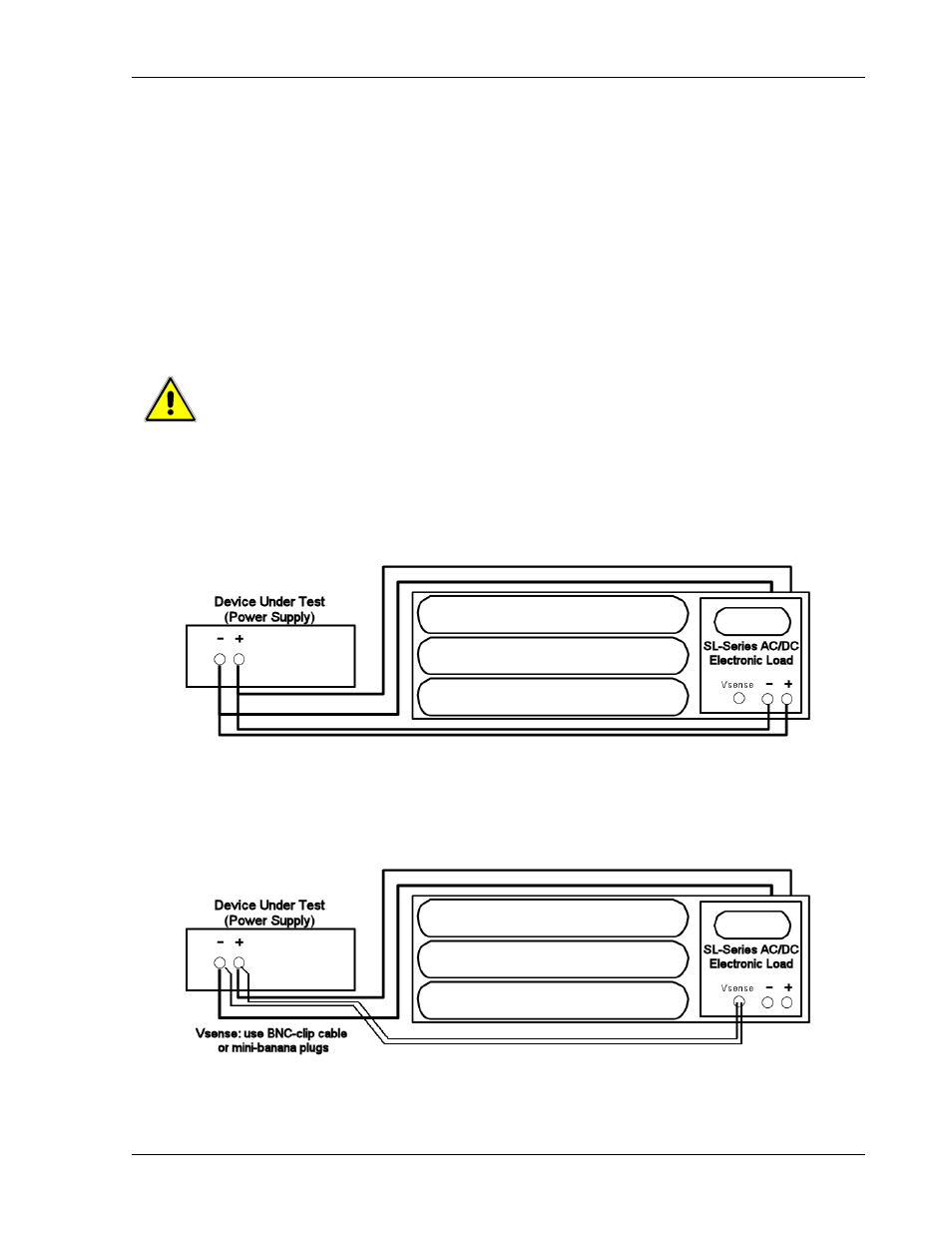

specific voltage value. See Figure 2-3 and Figure 2-4.
Figure 2-3 Connection Method for Small Load Current Condition.
Either front or rear connection may be used.
Figure 2-4 Typical Connection for SLH-series High Power AC/DC Electronic Load
CAUTION
