14

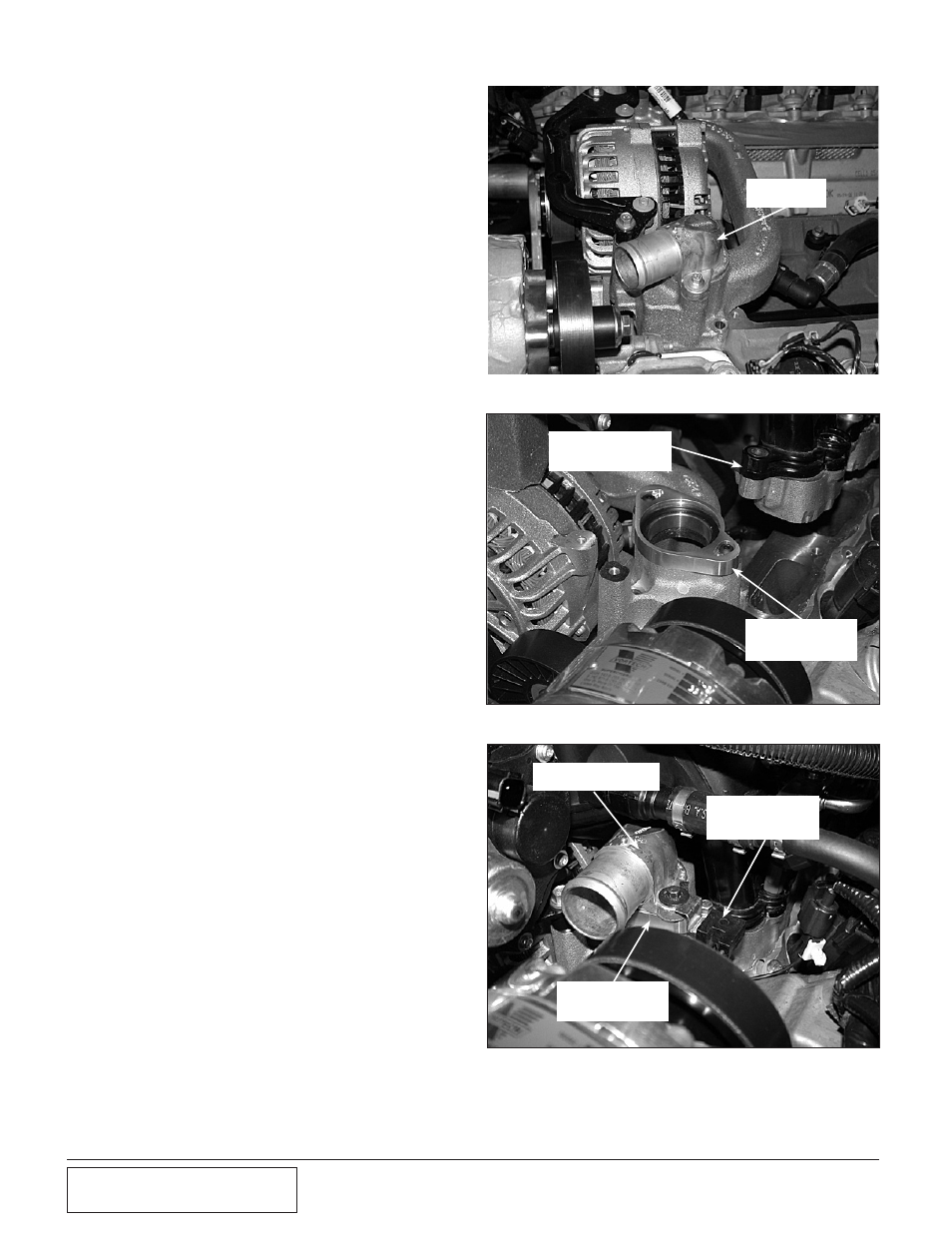

Fig. 5.2-a
Fig. 5.2-b
A. Using an 8mm socket, remove the two 6mm
screws that retain the thermostat housing. Set
the housing aside to be reused later. Leave the
factory thermostat and O-ring seal in place as
they will be reused (provided they are in good
condition). (See Fig. 5.2-a.)
B. Locate the supplied thermostat housing adap-
tor and hardware. Using the two 6mm socket-
head screws, install the housing adaptor as
shown. (See Fig. 5.2-b.)
C. Using the 6mm hardware, washers and
O-ring provided, reinstall the thermostat hous-
ing. Attach the previously removed resistor to
the housing as shown. (See Fig. 5.2-c.)
D. Reinstall the intake manifold removed in a
previous step. Check to see that the rubber
intake runner gaskets are in place and undam-
aged. Make sure the cylinder head surface is
clean.
E. Lower the intake manifold onto the cylinder
heads.
F. Install the ten factory 10mm headed manifold
retainers, and tighten to factory specifications.
G. Remove the small clips that retain the factory
fuel injectors to the fuel rail. Remove the fac-
tory fuel injectors and set aside. These will
not be reused.
H. Locate the supplied fuel injectors. Lubricate
the injector O-rings with clean motor oil and
install into the fuel rail. Reinstall the small
retaining clips onto the injectors.
I. Lower the fuel rail/injector assembly onto the
manifold, making sure that the injectors seat
properly into the manifold. Secure with the
four factory 8mm headed bolts.
J. Reconnect the fuel injector plugs, all other
connections and vacuum lines previously
removed from the manifold assembly.
5.2 THERMoSTAT HoUSiNG/RADiAToR
HoSE MoDiFiCATioN (2007-2010
Model year only)
Fig. 5.2-c
THERMOSTAT
HOUSING
ADAPTOR
THERMOSTAT
HOUSING
RESISTOR
REMOVED IN AN
EARLIER STEP
THERMOSTAT
HOUSING
ADAPTOR
MANIFOLD IN
ELEVATED
POSITION
THERMOSTAT
HOUSING
