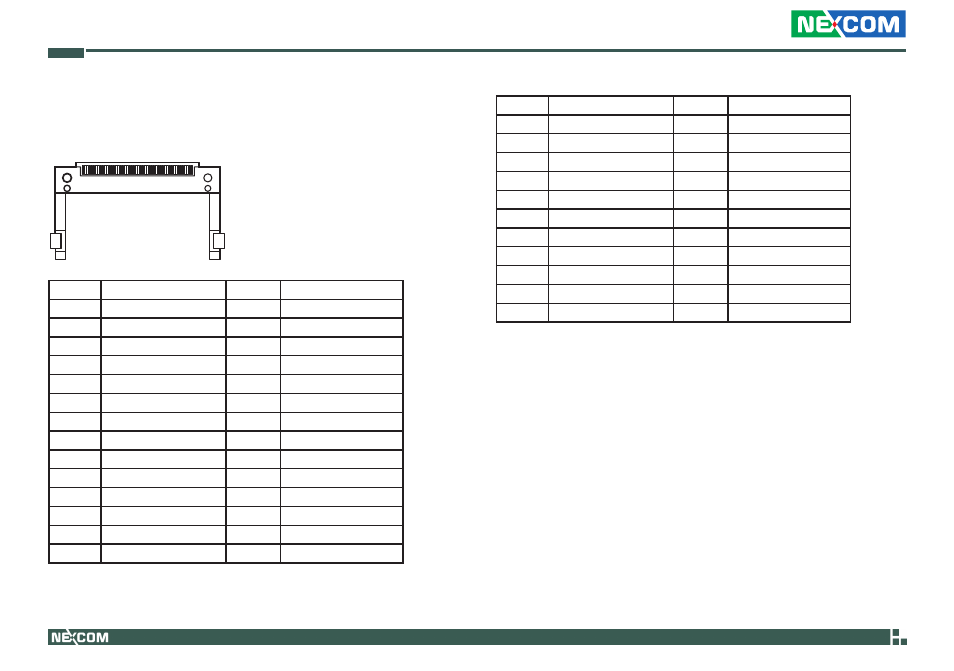

Chapter 2: Jumpers and Connectors
OPPC 1520T/1720T User Manual
CompactFlash
Connector type: 1x50 50-pin with Ejector, CompactFlash Type 2
Connector location: IDE1
Pin
Description
Pin
Description
1
GND
26
CF_DETECT
2
PD Data3
27
PD Data11
3
PD Data4
28
PD Data12
4
PD Data5
29
PD Data13
5
PD Data6
30
PD Data14
6
PD Data7
31
PD Data15
7
-PCS0
32
-PCS1
8
GND
33
N/C
9
GND
34
-PDIOR
10
GND
35
-PDIOW
11
GND
36
+5V
12
GND
37
IRQ14
13
+5V
38
+5V
14
GND
39
GND
Pin
Description
Pin
Description
15
GND
40
N/C
16
GND
41
CF_RESET#
17
GND
42
+3.3V
18
PDAddress2
43
PDDREQ
19
PDAddress1
44
PDDACK
20
PDAddress0
45
IDE_ACT#
21
PDData0
46
N/C
22
PDData1
47
PD Data8
23
PDData2
48
PD Data9
24
N/C
49
PD Data10
25
GND
50
GND
