Page 35
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
20
Chapter 2: Jumpers and Connectors
OPPC 1520T/1720T User Manual

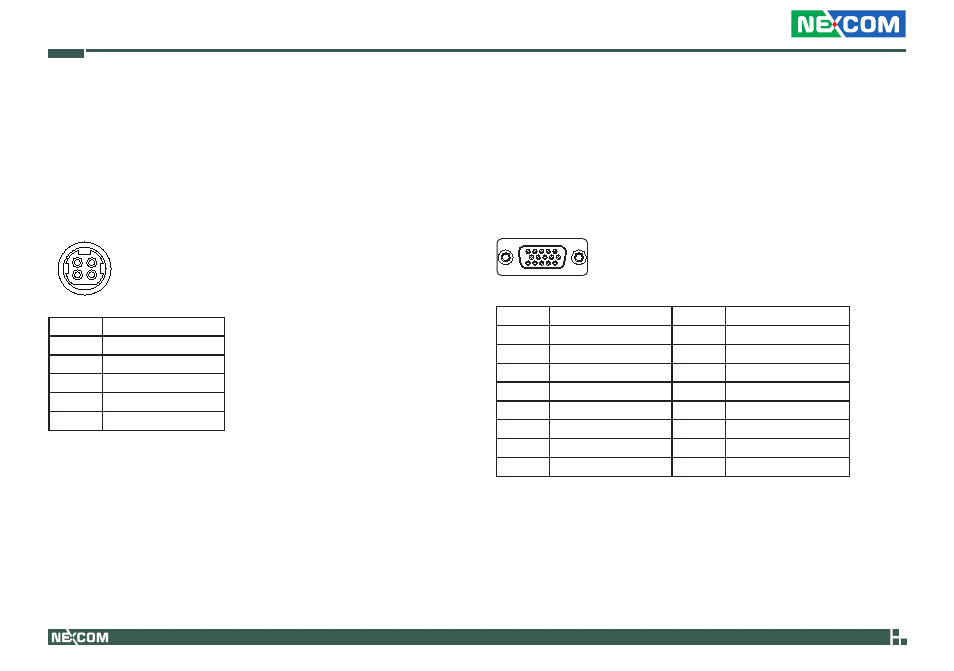

Connector Pin Definitions
12V-30V DC Power Input
Connector size: DC 4-pin DIN Power Jack with Shield
Connector location: CN8
3
1
2
4
Pin
Definition
1
DC+
2
DC+
3
DC-
4
DC-
5
GND
External I/O Interface
5
VGA Port
Connector type: DB-15 port, 15-pin D-Sub
Connector location: VGA1
Pin
Definition
Pin
Definition
1
Red
9
+5V
2
Green
10
GND
3
Blue
11
N/C
4
N/C
12
DDC Data
5
GND
13
HSYNC
6
GND
14
VSYNC
7
GND
15
DDC Clock
8
GND
16
N/C
1
5
11
15
