SurgeX SX-AX20 - Manual (Page 5)

SX-AX15 (20) User Manual
Page 4
I. Introduction (continued)

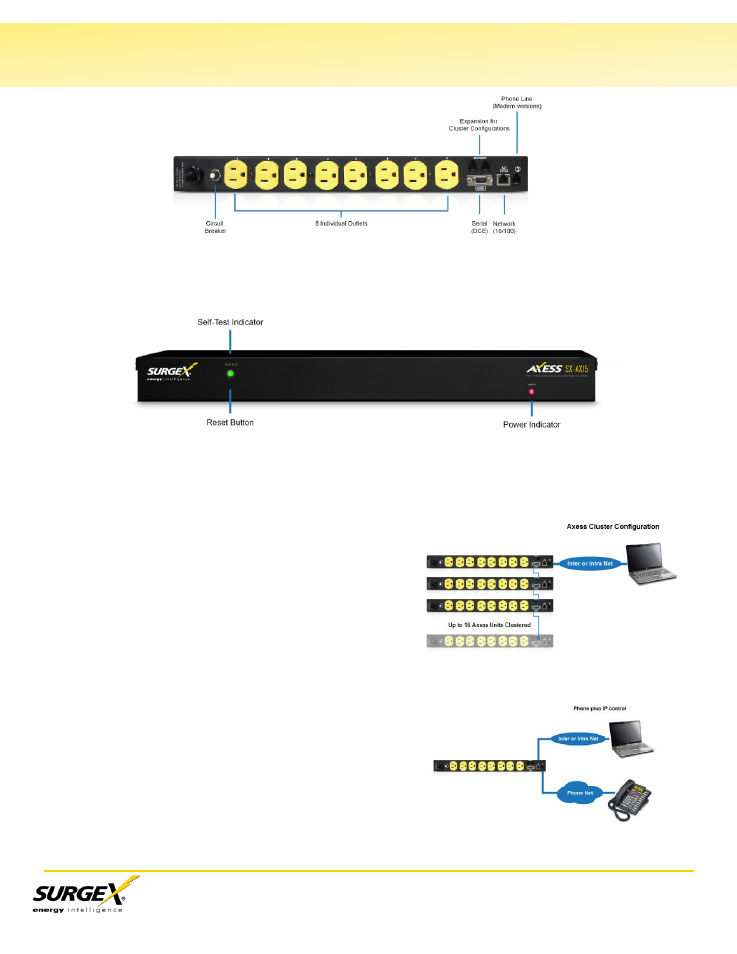

Located on the rear panel are the input power cord, circuit breaker (15A or 20A), 8 NEMA 5-15
AC outlets, Serial connection (DCE, 9 pin D-subminiature), Network connection (RJ-45), Phone
connection (RJ-11; modem versions only), and Expansion Ports for cluster configurations.
The two front panel LEDs provide indication of AC power (red) and surge protection status
(green). Also located on the front panel is a recessed Reset button (used to reboot or reset the
Administrator password).
The extensive programming capabilities of the
Axess allow outlet control and scheduling to be set
up, not just for the host unit, but also for other
Axess units on the same network.
The internal modem (for models with internal
modem option) supports data calls from terminal
devices using the CLI, and direct dial from a tone
telephone for simple On/Off control when more
sophisticated means are not available.
Setup and Control functions can be linked to any
SNMP v1 compatible manager. The Axess MIB is
available at surgex.com.
All activity can be reported to a Syslog compatible
server.
The internal web server may be secured with Secure
Sockets Layer (SSL) encryption.
The Certificate Utility can be used to create, manage, and upload SSL certificates.
