Appendix A: Module Specifications 81

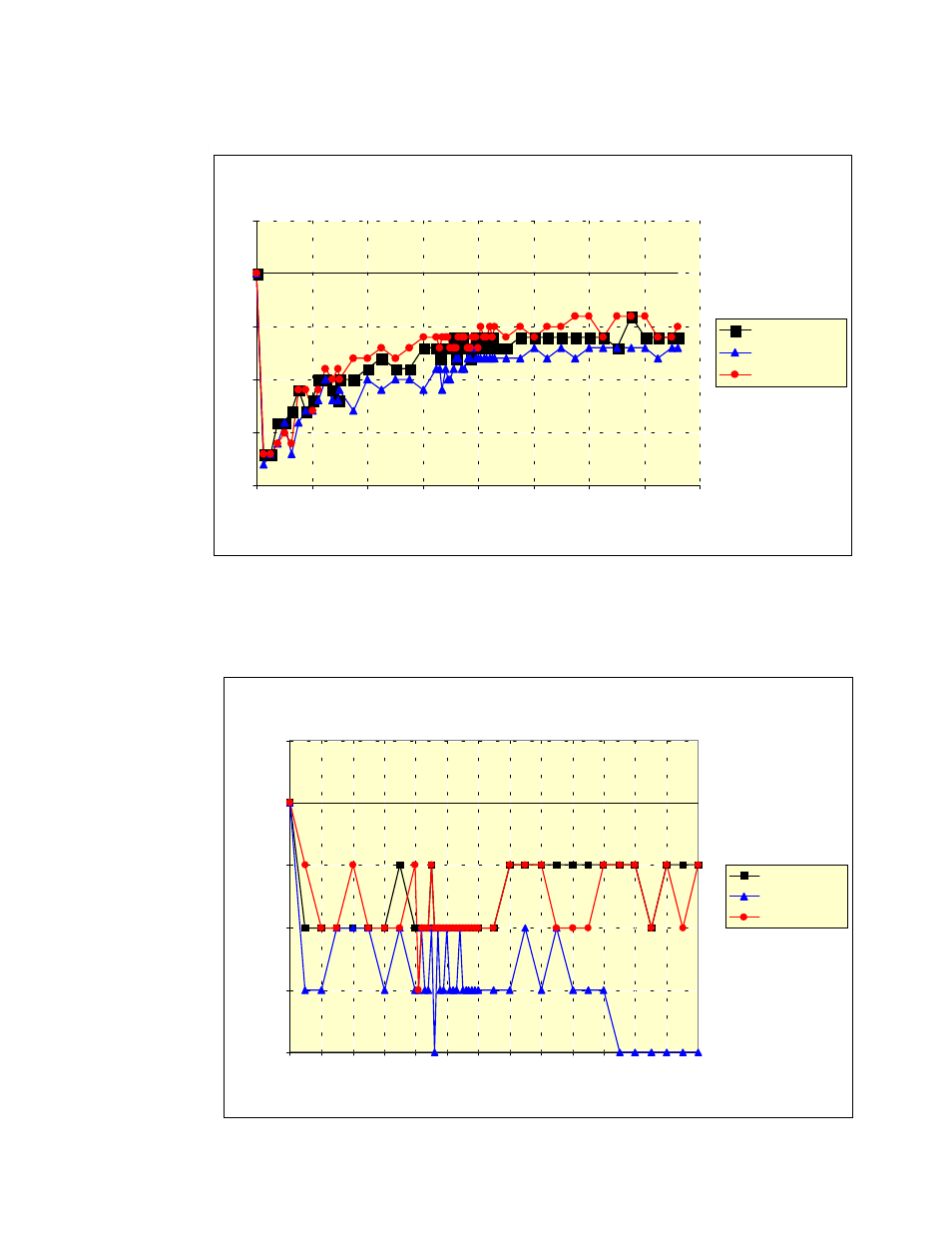

Thermocouple Type B, Example Deviations
-2
-1.5
-1
-0.5
0
0.5
300 500 700 900 1100 1300 1500 1700 1900
Degrees C TC Input
Degrees C Deviation
Ch 2 Delta, 25C
Ch 2 Delta, 0C
Ch 2 Delta, 60C
Thermocouple Type N, Example Deviations
-0.4
-0.3
-0.2
-0.1
0
0.1
0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300
Degrees C TC Input
Degrees C Deviation
Ch 2 Delta, 25C
Ch 2 Delta, 0C
Ch 2 Delta, 60C
