I
NSTALLATION
6300
2
w w w . p a r r i n s t . c o m
17
6300 C
ALORIMETER
E
XTERNAL
P
LUMBING

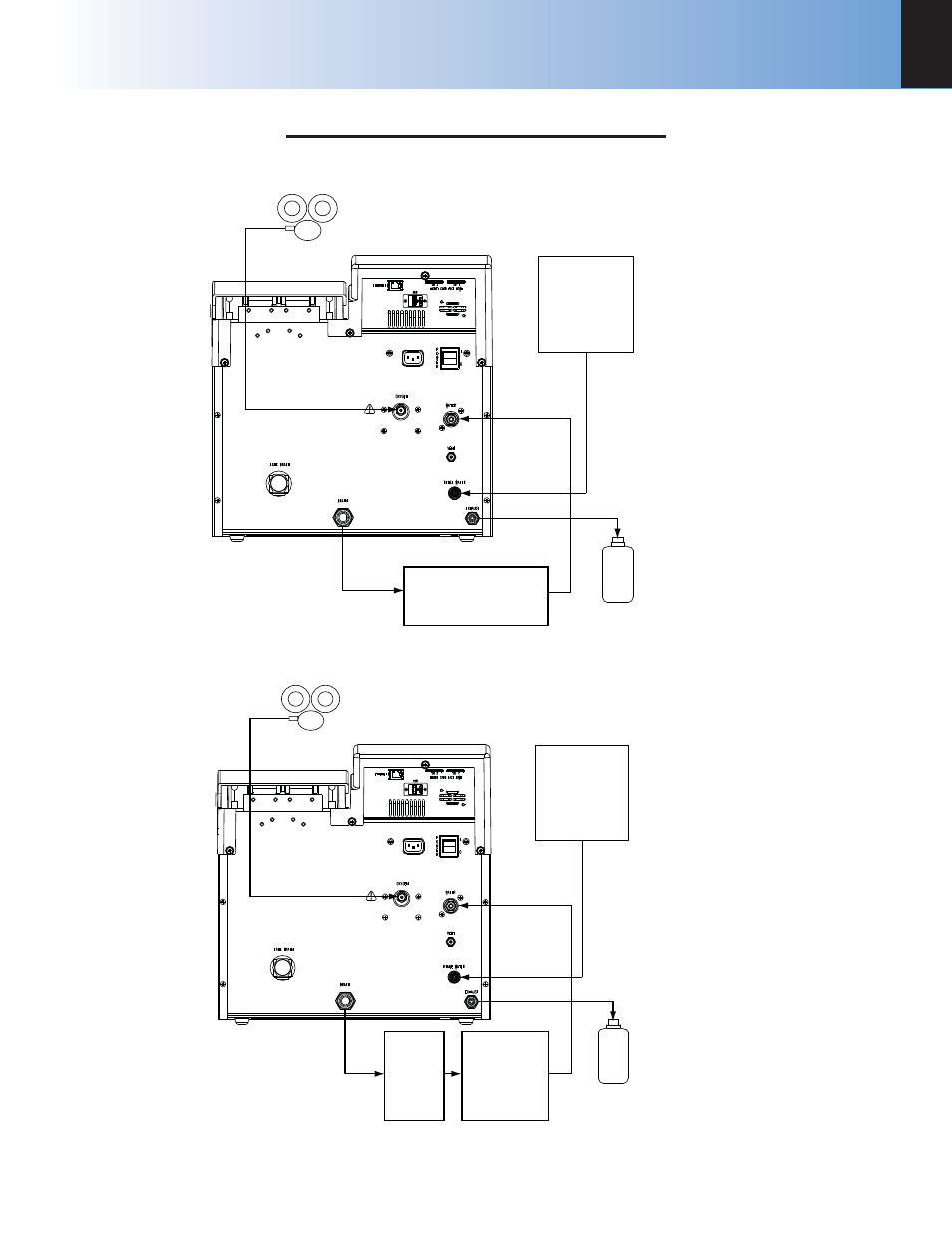

Figure 2-3
Closed Loop Confi guration with 6520A
O2 Regulator
DI Water
~Room Temp
6520A
Water Recircualtion
System
Rinse Collection
5-10 °C
Figure 2-4
Closed Loop Confi guration with 1564
O2 Regulator
DI Water
~Room Temp
1564
Water
Recircualtion
System
Rinse Collection
1552
Water
Cooler
5-10 °C
Line 1 & 2 – Maximum length of 10 feet, 1/4” OD, Polyurethane (Part Number HJ0025TB035)
Line 3 - Maximum length of 25 feet, 1/8” OD, Nylon (Part Number HX0012TB024)
