6.5 LDplus control system
The control system LDplus ("Lyo Display plus") was specifically developed
for the control of freeze-drying processes. The clear user interface enables
the intuitive operation of the unit.

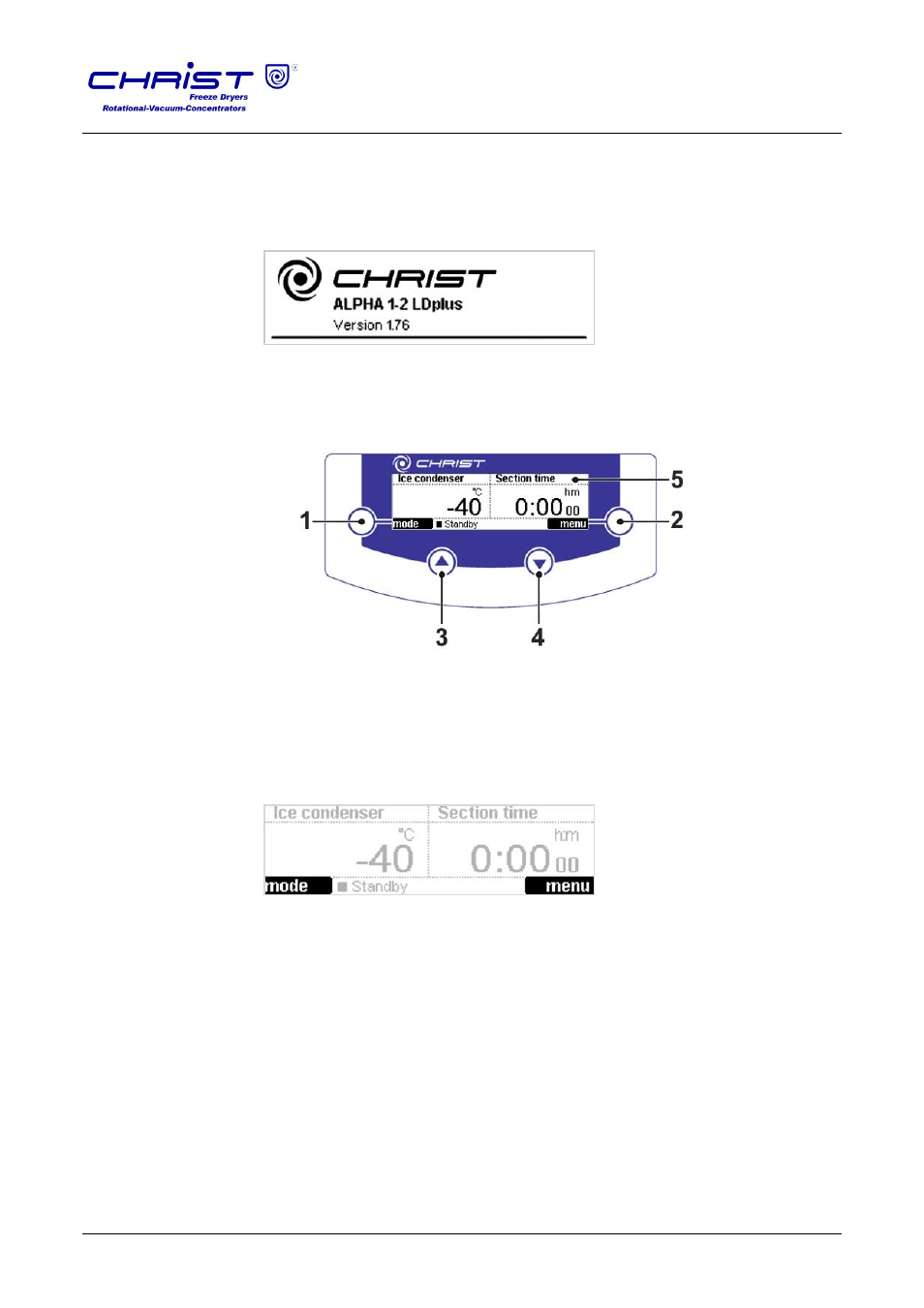

Fig. 16: Start screen of the LDplus control system
Pos: 119 /01 0 Univ ersal mod ule/L eerz eile @ 0\m od_ 120 211 624 450 0_0. docx @ 11 4 @ @ 1
Pos: 120 /20 0 Ch rist/3 60 G T-BA L abo r-Pilot (STANDARDMODU LE)/0 60 Bet rieb/ LDplus/ 060 -00 50- 001 0 Be dieno be rfläch e LDpl us @ 31\ mod _140 835 250 158 0_6 8.doc x @ 2 095 49 @ 3 @ 1
6.5.1 User interface
1 Left function key
2 Right function key
3 "Up" key
4 "Down" key
5 Display
Fig. 17: User interface of the LDplus control system
Function keys (1+2)
Function keys are keys whose function depends on the menu and
operating state of the unit. The current function is displayed directly next to
the key in the field with a black background.
Fig. 18: Indication of the current functions of the function keys; here, on the left, the "mode"
function and on the right the "menu" function.
"Up" and "down" keys (3+4)
These keys are used to select the functions and values that are available in
the menu or to change the selected parameters.
In addition, these keys also control the indication of the measurement value
channels in the value windows. The "up" key is assigned to the left value
window, whereas the "down" key controls the right value window.
• For a selection, press the "up" or "down" key repeatedly until the
desired measurement value channel is indicated in the respective value
window.
