Freeze-dryer Alpha 1-2 LDplus
5 Set-up and connection
Version 11/2006, Rev. 2.0 of 02/12/2014 • sb
35
Translation of the original operating manual
Pos: 104 /20 0 Ch rist/3 61 G T-BA L abo r-Pilot (PROJEKTE)/Alph a 1 -2 LD plus/ 050 Au fstellu ng u nd Ansc hluss/ 050 -00 60 V akuu mpu mpe Alpha 1-2 LDpl us @ 3 1\m od_ 140 808 408 1959 _68 .docx @ 2 094 54 @ 2 @ 1
5.4.6
Vakuum pum pe
5.5 Vacuum pump
NOTE
Please refer to the separate operating manual of the vacuum pump and
the exhaust filter!
The vacuum pump must be connected to the vacuum connector of the unit
and its plug must be plugged into the IEC C14 connector on the back of the
unit (see chapter 2.1.1 - "Functional and operating elements").
The oil mist that escapes when the pump is in operation must be retained
or carried off by way of an oil mist separator.
• We recommend using an oil mist separator. This filter prevents air
pollution by oil mist.
• In order to carry off the oil mist, connect a suitable hose to the exhaust
port of the vacuum pump (RZ-2.5 and RC-6: ½", DUO 5 or DUO 10 ¾").
• The hose must be laid so that the condensate cannot flow back into the
pump. In the case of upward leading hoses, we recommend using a
separator (Woulfe's bottle or wash bottle).
Pos: 105 /01 0 Univ ersal mod ule/L eerz eile @ 0\m od_ 120 211 624 450 0_0. docx @ 11 4 @ @ 1
Pos: 106 /20 0 Ch rist/3 61 G T-BA L abo r-Pilot (PROJEKTE)/Alph a 1 -2 LD plus/ 050 Au fstellu ng u nd Ansc hluss/ 050 -00 70 D rucks teu erve ntil Alpha 1- 2 LDpl us @ 31\ mod _140 808 408 233 1_6 8.doc x @ 2 094 68 @ 2 @ 1
5.6 Pressure control valve
The pressure control valve is integrated in the suction pipe between the
vacuum pump and ice condenser chamber. During certain, specified
process phases, it interrupts the volume flow to the vacuum pump (see
chapter 2.2.1 - "General information on freeze-drying").
CAUTION
Observe the installation direction of the pressure control valve!
1
Pressure control valve

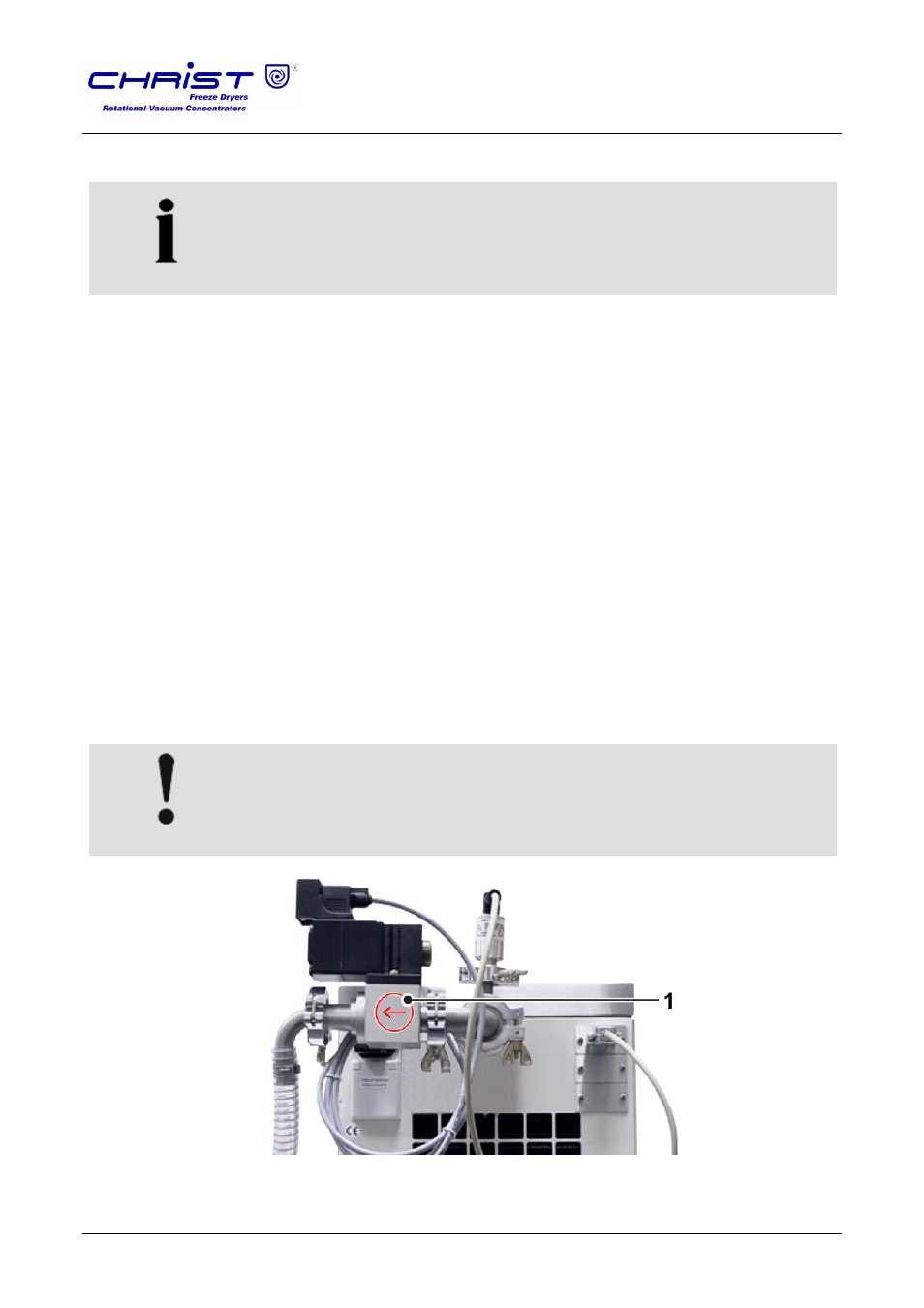

Fig. 15: Installation of the pressure control valve
