Freeze-dryer Alpha 1-2 LDplus
4 Storage and transport
30
Version 11/2006, Rev. 2.0 of 02/12/2014 • sb
Translation of the original operating manual
Pos: 85 / 200 Christ /36 1 GT -BA La bor -Pilot (PROJEKTE )/Alpha 1- 2 LDpl us/0 40 L age run g un d T ran spo rt/0 40- 0030 Tra nspo rthinw eise Alp ha 1 -2 LD plus @ 31\ mo d_1 4080 840 605 47_ 68.d ocx @ 209 341 @ 2 @ 1
4.3 Notes on transport
• Use suitable packaging for the transport, and if at all possible, the
original packaging.
• Install all transport safety devices (see chapter 4.5 - "Transport safety
device").
• Over short distances, the freeze-dryer can be transported by a suitable
number of persons who reach under it from the sides.
• When lifting the freeze dryer, always reach under the freeze-dryer from
the side. Do not grab the unit at the plastic control panel (see figures
below).

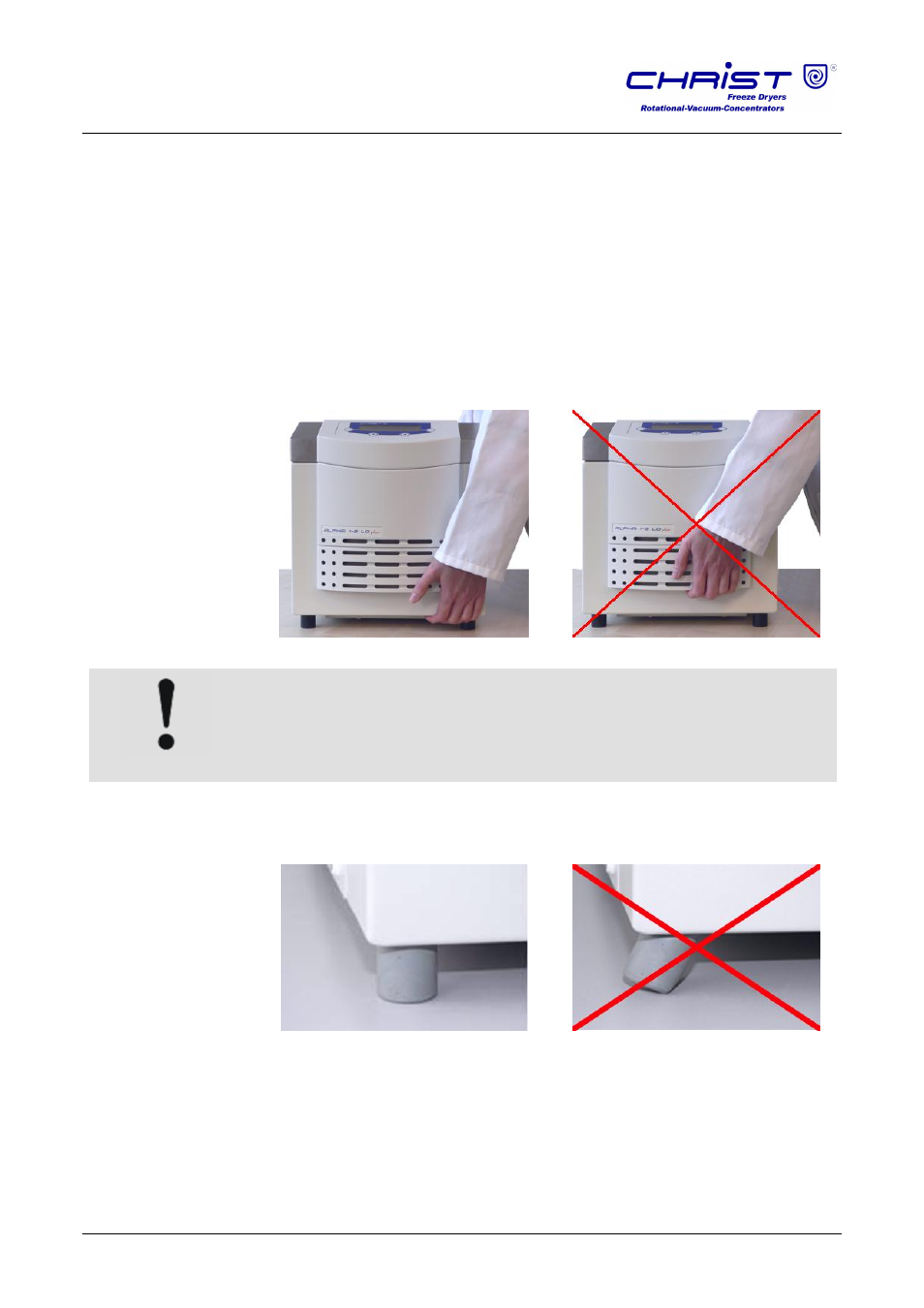

correct incorrect
Fig. 11: Lifting the freeze-dryer
CAUTION
The freeze-dryer Alpha 1-2 LDplus weighs approx. 28 kg!
• When setting the unit down, ensure that the feet are upright (see figures
below).
Fig. 12: Unit feet
