Data Analysis
88 AXS-200/630
Reading Results

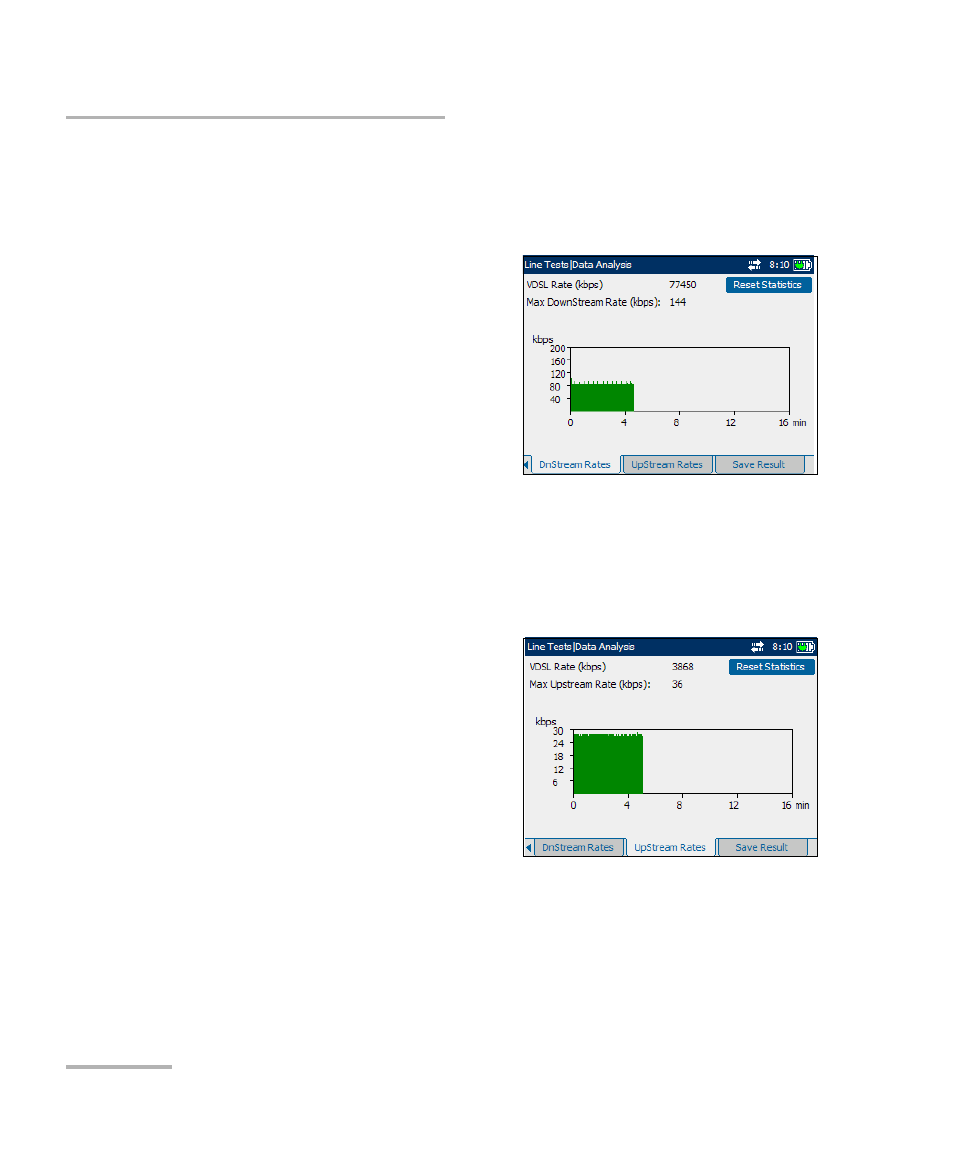

Down Stream Rates
The DnStream Rates tab allows you to view the maximum achieved
downstream data rates for the data stream layers of the connection.
The available test results are the
following:
³
xDSL Rate (kbps) is the actual
rate for the xDSL layer.
³
Max DownStream Rate (kbps) is
the maximum downstream rate of
the data stream for the
connection.
³
Reset Statistics button sets all monitoring values to 0.
Up Stream Rates
The UpStream Rates tab allows you to view the maximum achieved
upstream data rates for the data stream layers of the connection.
The available test results are the
following:
³
xDSL Rate (kbps) is the actual
rate for the DSL layer.
³
Max UpStream Rate (kbps) is the
maximum upstream rate of the
data stream for the connection.
³
Reset Statistics button sets all
monitoring values to 0.
