IPTV Analysis
VDSL2, ADSL2+, and IP Triple-Play Test Set 57
Reading Results

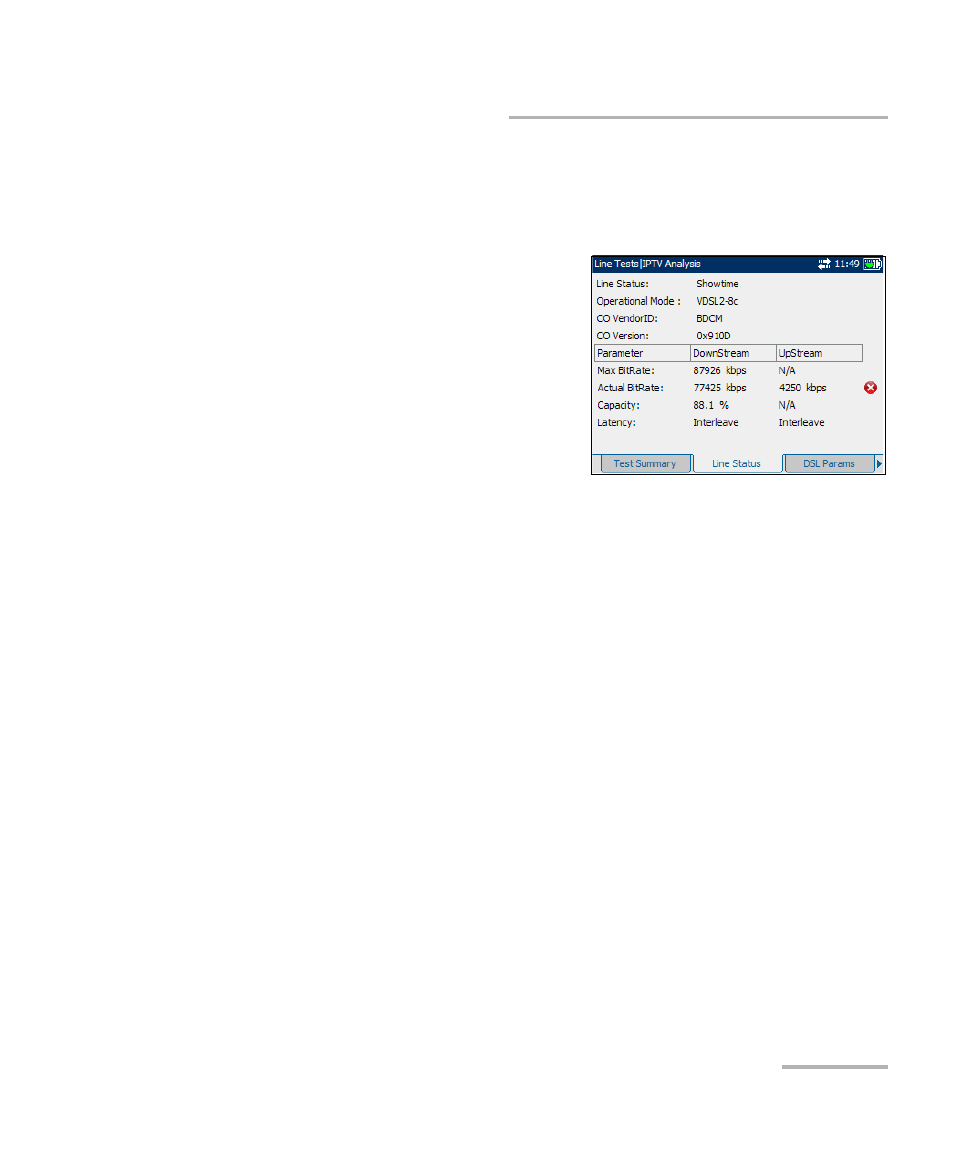

Line Status
The Line Status tab allows you to view the conditions of the line under test
which was configured in the connection setup.
The available test results are the
following:
³
Line Status displays Showtime
when the unit and the DSLAM
have successfully connected and
negotiated applicable data rates
for the particular connection
under test. During negotiation with
the DSLAM, the value changes
from Booting/DecompressImage/StartProgram/LoadModules/Idle
/Activate /Ready /Handshaking/Training to Showtime.
³
Operational Mode is the xDSL mode of operation as negotiated
between the unit and the DSLAM.
³
CO VendorID is a unique 4-digit alphanumeric identifier of the DSL
chipset manufacturer used on the central office (CO) side.
³
CO Version is the version number of the unique alphanumeric
identifier of the DSL chipset used on the CO side.
