Connection Setup for xDSL/IP Triple-Play Verification Tests
18 AXS-200/630

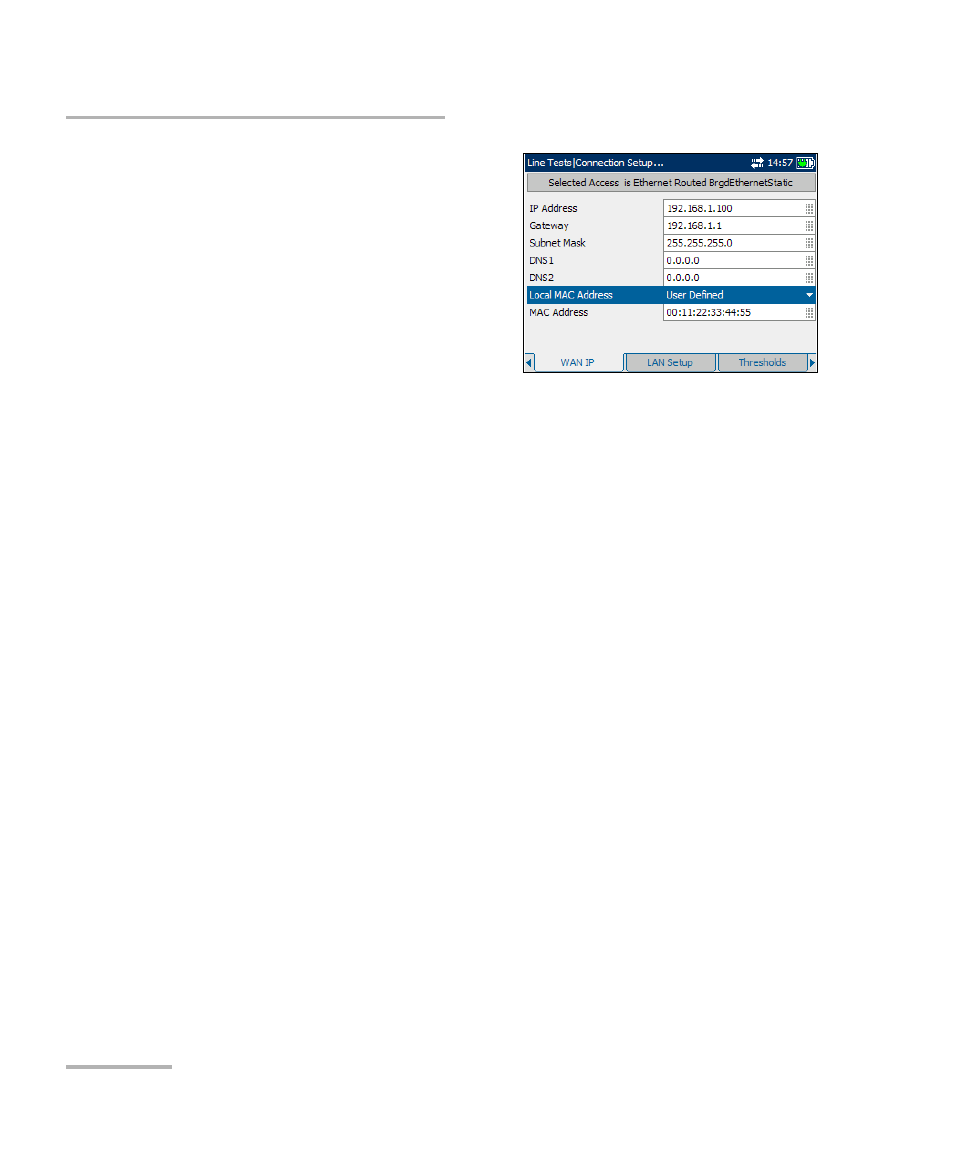

Setup Line Connection
When the AccessMode selection is set
to Routed BrgdEthernet Static, the
available parameters are the
following:
³
IP Address is the address for the
unit that is actively connected to
your network or the internet at the
time of login.
³
Gateway is the IP address of the
default gateway.
³
Subnet Mask is the network address used to identify if the IP address is
within the same wide area network.
³
DNS1 is the address of the primary domain name server to be used by
the unit. If DNS is unavailable, enter 0.0.0.0.
³
DNS2 is the address of the secondary domain name server to be used
by the unit. If DNS is unavailable, enter 0.0.0.0.
³
Local MAC Address is the internal MAC address of the unit: either
AXS200 or User Defined.
³
MAC Address is a specific MAC address, maximum 17 characters, if
you select User Defined for the previous parameter.
