IPTV Analysis
64
AXS-200/630
Reading Results

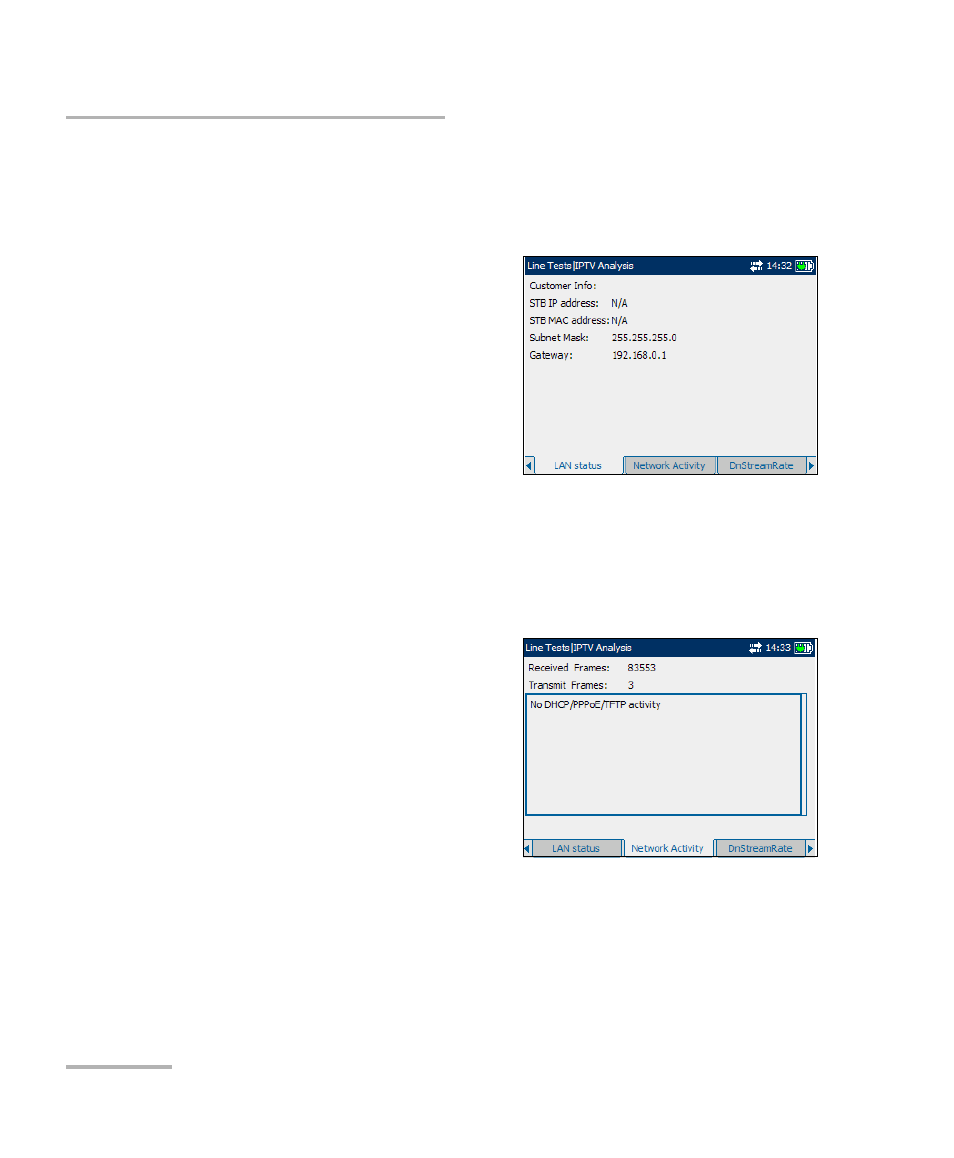

LAN Status
The LAN Status tab allows you to view the Customer Info configured for
the local area network (LAN).
The available information is as
follows:
³
STB IP address is the IP address
of the set-top box (STB)
connected to the LAN port.
³
STB MAC address is the MAC
address of the STB connected to
the LAN port.
³
Subnet Mask is the network address used to identify if the IP address is
within the same local area network.
³
Gateway is the IP address of the default gateway.
Network Activity
The Network Activity tab allows you to
view the PPPoE (point-to-point
protocol over Ethernet), DHCP
(dynamic host configuration protocol)
and TFTP (trivial file transfer protocol)
mode sessions resulting from the
video tests.
