Configure Tests for xDSL/IP Triple-Play Verification
34 AXS-200/630
Configure Line Tests
TraceRoute

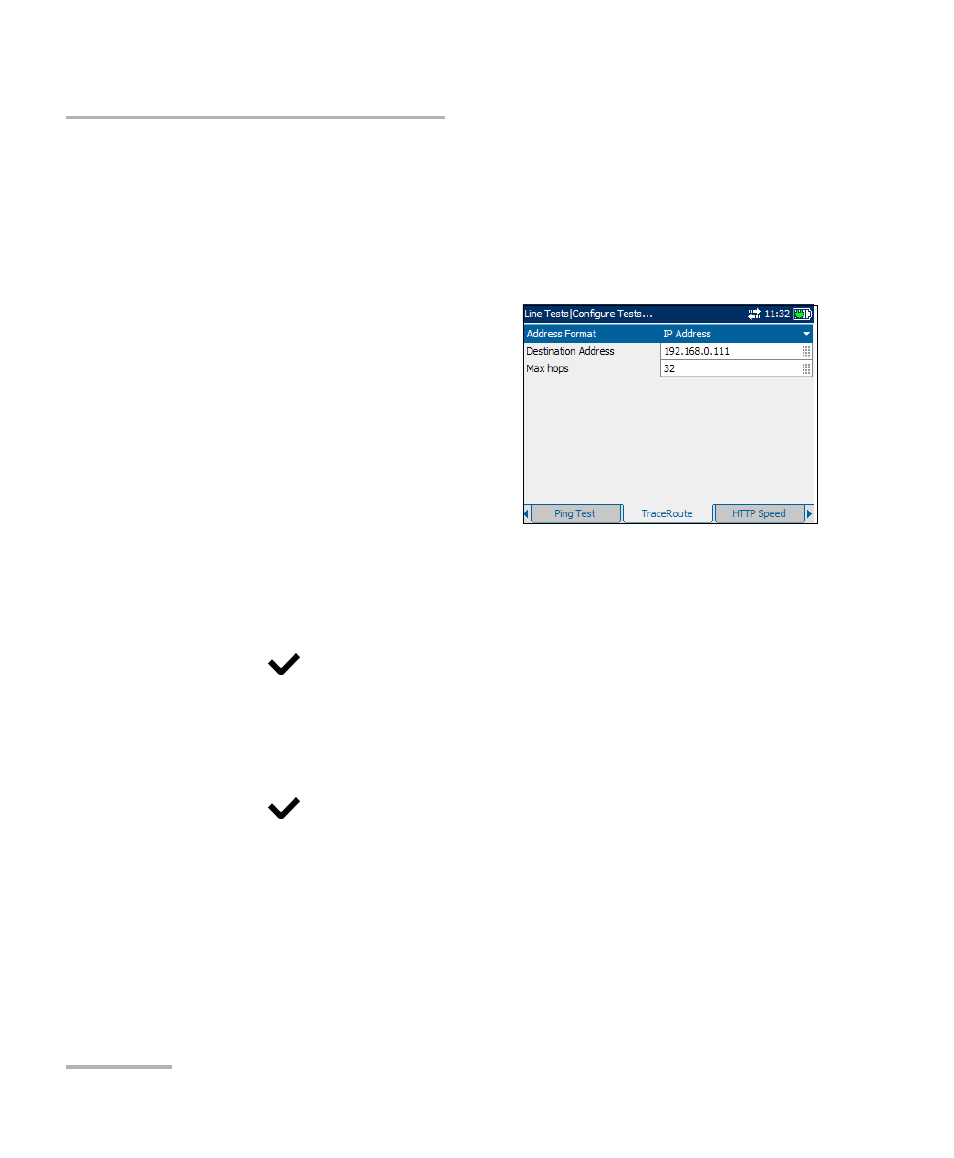

The TraceRoute tab allows you to trace an IP packet from the unit (or a
PC) to a specified IP destination and define how many hops the packet
requires to reach the destination. This test is useful in determining where
the longest delays are occurring along the network path.
The available parameters are the
following:
³
Address Format lists the address
either as a URL or IP Address.
³
Destination Address is the
destination IP address.
³
Max hops is a value from
1 through 99 specifying the
maximum number of hops to be used in attempting to reach the
destination IP address. The default value is 32.
To select the traceroute parameters to configure:
1. Press the up/down arrows to select the desired parameter.
2. Press to open the list or modify the parameter.
3. In the list, press the up/down arrows to select the function or mode.
OR
Use the alphanumeric keypad to enter the value you want to specify.
4. Press to confirm the selection.
