Configure Tests for xDSL/IP Triple-Play Verification
VDSL2, ADSL2+, and IP Triple-Play Test Set 41
Configure Line Tests
STB Support

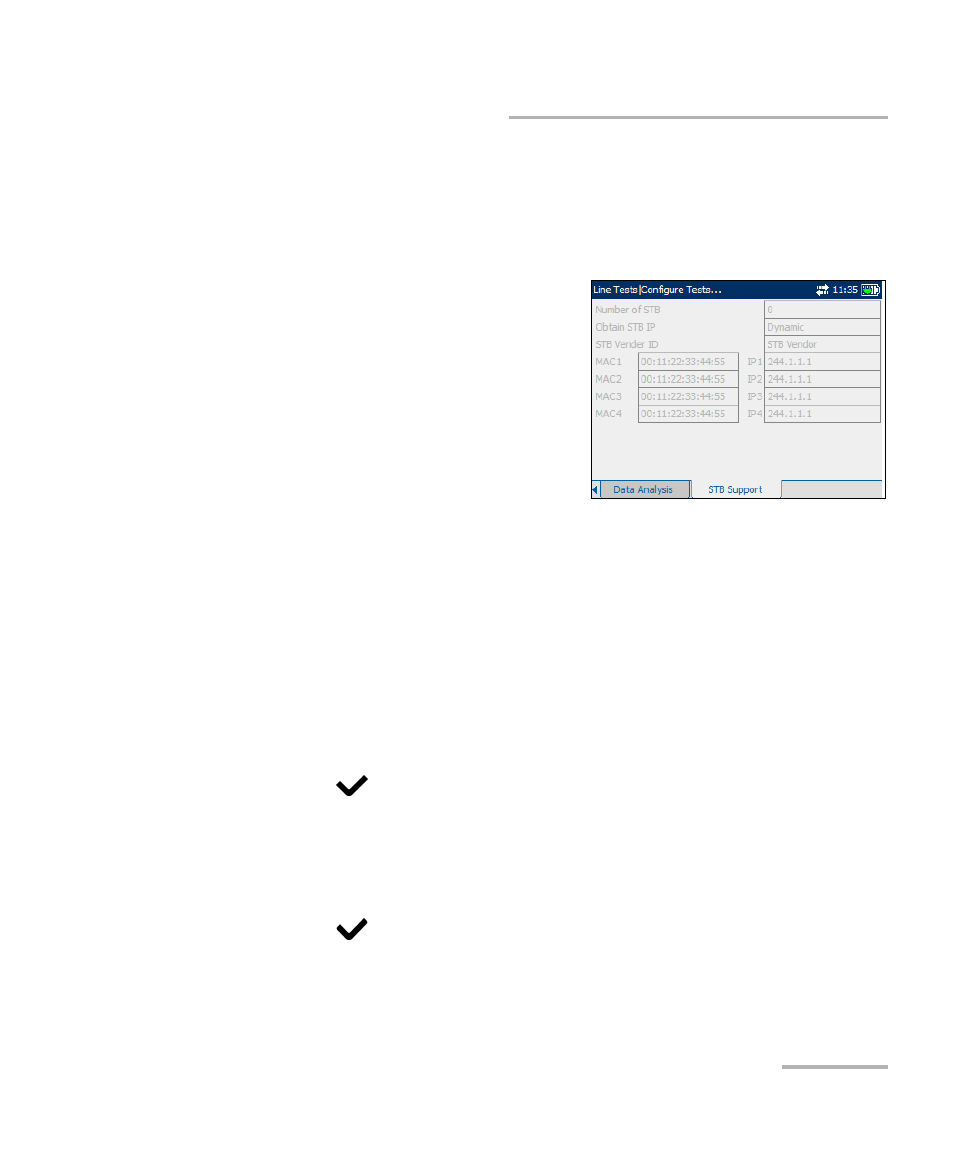

The STB Support tab allows you to configure the parameters for the
internet group management protocol (IGMP) traffic being transferred to
and from the set top box (STB).
The available parameters are the
following:
³
Number of STB is the quantity of
set top boxes (maximum 4) to be
emulated by the unit at the testing
location.
³
Obtain STB IP is either Dynamic
where the access concentrator or
broadband remote access server
assigns a temporary IP address to the set top box, or Static where you
enter the IP address of the set top box.
³
STB Vendor ID is the name of the set top box, maximum
80 characters. This entry is unavailable if Obtain STB IP is set to Static.
³
MAC1-4 is the MAC address for each specified set top box.
³
IP1-4 is the IP address for each set top box that has been specified.
To select the STB support parameters to configure:
1. Press the up/down, left/right arrows to select the desired parameter.
2. Press to open the list or modify the parameter.
3. In the list, press the up/down arrows to select the function or mode.
OR
Use the alphanumeric keypad to enter the value you want to specify.
4. Press to confirm the selection.
